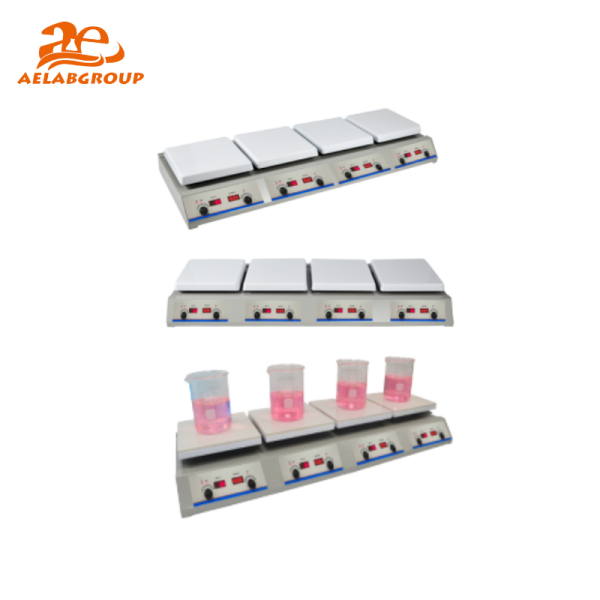

Multi-Plates Magnetic Stirrer Hotplate HSHS-4P Series

Name: Multi-Plates Magnetic Stirrer Hotplate HSHS-4P Series
Brand: AELAB
SKU: HSHS-4P~MSHA-4P~MSHC-4P

Model :HSHS-4P~MSHA-4P~MSHC-4P

The Multi-Plates Magnetic Stirrer Hotplate HSHS-4P Series features four independent stirring and heating positions, each with a 178×178 mm plate. It heats up to 500°C and offers stirring speeds from 150 to 1600 rpm. The device ensures precise temperature control with ±0.5°C accuracy, thanks to the optional PT 1000 sensor. With three material options for the plates and robust safety features, including overheat and hot surface warnings, this unit is suitable for various lab applications. It operates on 200–240V, 50/60 Hz for global compatibility.

WhatsApp Us Ask by Email

Downloads

Multi-Plates Magnetic Stirrer Hotplate HSHS-4P SeriesPDF · 206.38 KB

Need Help with This Product?

Ella Wu +8615800016110

Overview

The Multi-Plates Magnetic Stirrer Hotplate HSHS-4P Series is a compact, four-position lab device designed for simultaneous heating and stirring. With plates measuring 178×178 mm, it provides precise heating up to 500°C and stirring speeds of 150–1600 rpm. Each position operates independently, allowing customization for different experiments. The unit includes three plate material options (ceramic-coated stainless steel, aluminum, pure ceramic) and offers accurate temperature control with ±0.5°C precision using the PT 1000 sensor. Safety features like overheat, hot surface, and residual temperature warnings enhance user protection. Designed for global use, it supports 200–240V, 50/60 Hz, making it a versatile tool for laboratories worldwide.

Features：

3 plate material options (ceramic-coated stainless steel/aluminum, pure ceramic) with plate temp up to 500°C
High precision control: 0.1°C solution temp resolution, ±0.5°C accuracy with PT 1000 sensor, ±1°C stability
4 independent stirring positions, 150–1600 rpm speed, 10L max volume, bidirectional (CW/CCW) rotation
Comprehensive safety: hot/overheat/residual temp warnings, IP 21 protection class
Global compatibility: 200–240V voltage, 50/60 Hz frequency for international use

Specifications

Model	HSHS-4P	MSHA-4P	MSHC-4P
Display	LED	LED	LED
Plate material	Ceramic coated stainless steel	Ceramic coated aluminum	Ceramic
Plate number	4	4	4
Each Plate Dimension	178 X 178 mm	178 X 178 mm	178 X 178 mm
Hot warning	YES	YES	YES
Overheat warning in plate and medium detection (Error 1, Error 2)	YES	YES	YES
Residual temperature warning	YES	YES	YES
Number of Control	4	4	4
Temperature setting range	35-300°C	35-400°C	35-500°C
Heating range for plate	35-300°C	35-400°C	35-500°C
Heating range for solution	35.0-200.0°C	35.0-200.0°C	35.0-200.0°C
External temperature sensor （Optional）	PT 1000	PT 1000	PT 1000
Heating setting resolution of plate	1 °C	1 °C	1 °C
Heating setting resolution of solution	0.1 °C	0.1 °C	0.1 °C
Temperature stability	1 °C	1 °C	1 °C
Heat control accuracy with PT 1000 (500ml H2O in 600ml beaker, 30mm stirring bar, 600rpm, 50°C)	+/-0.5 °C	+/-0.5 °C	+/-0.5 °C
Capable calibration on external probe	yes	yes	yes
Number of stirring positions in each plate	1	1	1
Stirring quantity max. per stirring position (H2O)	10L	10L	10L
Speed range	150-1600 rpm	150-1600 rpm	150-1600 rpm
Stir Bar Length Range	25-60mm	25-60mm	25-60mm
Motion Direction（CW/CCW ）	yes	yes	yes
Dimensions (W x D x H) mm	760x300x110	760x300x110	760x300x110
Weight	14 Kg	14 Kg	14 Kg
Operation ambient temperature	5 - 40 °C	5 - 40 °C	5 - 40 °C
Operation relative humidity	80%	80%	80%
Protection class according to DIN EN 60529	IP 21	IP 21	IP 21
Voltage	200-240V	200-240V	200-240V
Frequency	50/60 Hz	50/60 Hz	50/60 Hz
Power	2600 W	3200 W	3200 W
