Model :MS-H Series

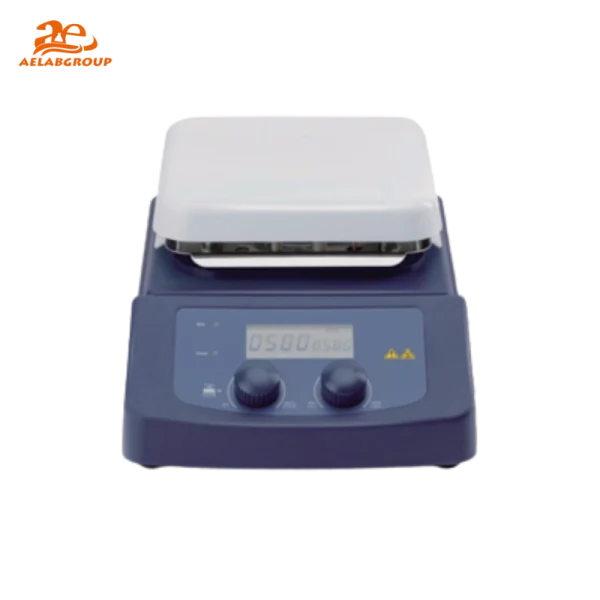

The AELAB MS-H380-Pro LCD Digital Magnetic Hotplate Stirrer provides precise heating up to 380°C and stable magnetic stirring up to 1500 rpm. Its aluminum ceramic-coated plate ensures rapid heat transfer, while the LED displays enable accurate temperature and speed monitoring for research, industrial, and analytical workflows.
Need Help with This Product?
The AELAB MS-H380-Pro LCD Digital Magnetic Hotplate Stirrer combines precision heating up to 380°C with smooth magnetic stirring up to 1500rpm. Its ceramic-coated aluminum plate delivers rapid heat transfer, and the LED display ensures clear feedback of speed and temperature during laboratory operations.
Designed for research, quality assurance, and industrial workflows, the MS-H380-Pro uses a brushless DC motor for long service life and high reliability. The model supports external PT1000 sensor integration for accurate liquid temperature control.
The AELAB MS-H380-Pro features a robust brushless DC motor, ensuring quiet operation and extended durability. The 140×140mm aluminum work plate is coated with high-conductivity ceramic to maximize heat uniformity and chemical resistance. LED indicators provide simultaneous visualization of speed and temperature settings for controlled laboratory processing.
The instrument drives a magnetic stir bar using a brushless DC motor, generating a stable vortex for homogenizing liquids. The heating module regulates surface temperature from room temperature to 380°C in 1°C increments. When connected, the PT1000 sensor provides closed-loop liquid temperature control, improving accuracy for thermal reactions, reagent dissolution, and analytical preparation.
The MS-H380-Pro includes an RS232 data interface for laboratory information system integration, external logging, and software connectivity. PT1000 sensor input enables advanced temperature regulation for GLP-compliant workflows.
| Model | Specifications |
|---|---|
| MS-H380-Pro | 140×140mm plate, 380°C heating, 200–1500rpm, LED display, PT1000 control, 500W heating |
The AELAB MS-H380-Pro is suitable for chemical synthesis, reagent formulation, QA/QC sample preparation, environmental analysis, pharmaceutical development, and general research laboratory mixing and heating tasks.
The instrument conforms to ISO, CE, and GLP laboratory standards. All units are calibrated and validated under AELAB quality control protocols, ensuring reproducibility and long-term reliability.
| Specifications | MS-H-ProA | MS-H-PRO | MS-H-PRO+ | MS-H-S | MS-H380-Pro | MS-H280-Pro |
|---|---|---|---|---|---|---|
| Work plate dimension (W×D) | Ø135mm (5 inch) | Ø135mm (5 inch) | Ø135mm (5 inch) | Ø135mm (5 inch) | 140×140mm | Ø135mm (5 inch) |
| Work plate material | Aluminum cover with ceramic coating | Stainless steel cover with ceramic coating | Stainless steel cover with ceramic coating | Stainless steel cover with ceramic coating | Aluminum cover with ceramic coating | Stainless steel cover with ceramic coating |
| Motor type | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor |
| Stirring positions | 1 | 1 | 1 | 1 | 1 | 1 |
| Max. stirring quantity (H₂O) | 20L | 20L | 20L | 20L | 5L | 3L |
| Max. magnetic bar length | 80mm | 80mm | 80mm | 80mm | 50mm | 50mm |
| Speed range | 100–1500rpm, resolution ±1rpm | 100–1500rpm, resolution ±1rpm | 100–1500rpm, resolution ±1rpm | 0–1500rpm | 200–1500rpm | 200–1500rpm |
| Speed display | LCD | LCD | LCD | Scale | LCD | LED |
| Temperature display | LCD | LCD | LCD | Scale | LCD | LED |
| Heating temperature range | Room temp.–340°C, increment 1°C | Room temp.–340°C, increment 1°C | Room temp.–340°C, increment 1°C | Room temp.–340°C | Room Temp.–380°C | Room Temp.–280°C |
| Heating liquid temperature control accuracy | ±1°C (<100°C) ±1% (>100°C) | ±1°C (<100°C) ±1% (>100°C) | ±1°C (<100°C) ±1% (>100°C) | _ | ±1°C (<100°C) ±1% (>100°C) | ±1°C (<100°C) ±1% (>100°C) |
| Overheating temp. protection | 420°C | 420°C | 420°C | 420°C | 420°C | 320°C |
| Temperature display accuracy | ±0.1°C | ±0.1°C | ±0.1°C | _ | ±0.1°C | ±1°C |
| External temp. sensor | PT1000 (accuracy ±0.2°C) | PT1000 (accuracy ±0.2°C) | PT1000 (accuracy ±0.2°C) | _ | PT1000 (accuracy ±0.2°C) | PT1000 (accuracy ±0.2°C) |
| Hot warning | 50°C | 50°C | 50°C | _ | _ | 50°C |
| Data connector | RS232 | RS232 | RS232 | _ | _ | _ |
| Protection class | IP21 | IP21 | IP21 | IP21 | IP21 | IP42 |
| Timer function | 1min–99h59min | _ | 1min–99h59min | _ | _ | _ |
| Motor rating input | 10W | 10W | 10W | 10W | 1.8W | 3W |
| Power | 720W | 550W | 550W | 530W | 510W | 515W |
| Heating output | 600W | 500W | 500W | 500W | 500W | 500W |
| Voltage/Frequency | 100–120/200–240V, 50/60Hz | 100–120/200–240V, 50/60Hz | 100–120/200–240V, 50/60Hz | 100–120/200–240V, 50/60Hz | 100–120/200–240V, 50/60Hz | 100–120/200–240V, 50/60Hz |
| Dimension (W×D×H) | 280×160×100mm | 160×280×100mm | 160×280×100mm | 160×280×100mm | 320×180×108mm | 150×260×100mm |
| Weight | 2.8kg | 2.8kg | 2.8kg | 2.8kg | 2.2kg | 1.8kg |
| Permissible ambient temp. & humidity | 5–40°C, 80%RH | 5–40°C, 80%RH | 5–40°C, 80%RH | 5–40°C, 80%RH | 5–40°C, 80%RH | 5–40°C, 80%RH |
