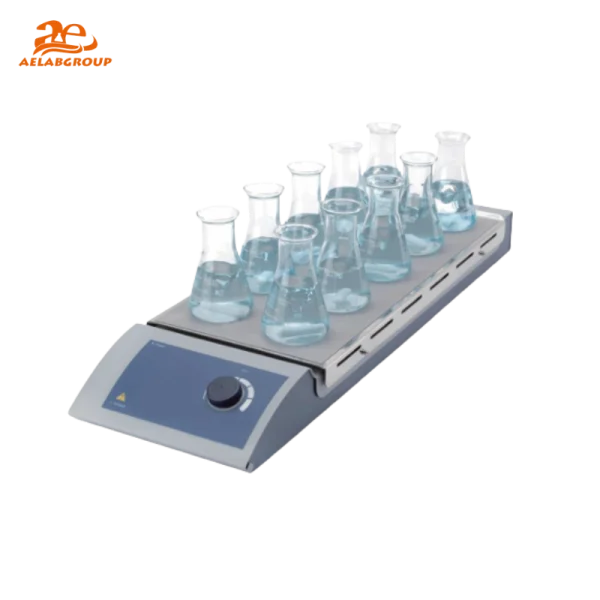

AELAB MS-M-S10 Magnetic Stirrer – 10-Position Laboratory Stirring System

Overview

The AELAB MS-M-S10 Magnetic Stirrer is engineered for efficient, space-saving multi-sample stirring in modern laboratories. With ten simultaneous stirring positions, a Stainless Steel work plate with silicone coating, and a maintenance-free brushless DC motor, it delivers uniform and reliable performance. The compact form factor maximizes benchtop utilization while supporting up to 0.4L per position for high-throughput workflows.

The system provides smooth, stable stirring across the full 0–1100 rpm range, making it suitable for research, education, quality control, and general laboratory mixing applications.

⚙️ Design & Construction

The AELAB MS-M-S10 features a durable Stainless Steel work plate coated with silicone to enhance skid resistance and vessel stability. The internal brushless DC motor ensures quiet operation, precise speed regulation, and extended service life. The wide 180×450mm work surface supports ten evenly spaced stirring zones, enabling consistent parallel sample mixing.

🔬 Working Principle / Testing Method

The instrument operates by generating rotational magnetic fields through its high-torque brushless DC motor, which couples with magnetic stirring bars placed in each vessel. As the field rotates, each bar synchronizes with the motion, ensuring uniform mixing across all ten positions. The silicone-coated plate minimizes vessel drift, maintaining consistent sample agitation throughout operation.

💡 Key Advantages

• Ten synchronized stirring positions for parallel sample preparation
• Brushless DC motor for long-term, maintenance-free use
• Wide 0–1100 rpm range for diverse mixing requirements
• Silicone-coated Stainless Steel plate for superior skid resistance
• Compact 622×205×65mm body ideal for limited bench space
• Supports up to 4L total capacity (0.4L × 10)
• Reliable performance in 5–40°C laboratory environments

🔗 Connectivity & Integration

The AELAB MS-M-S10 is a standalone mechanical stirring platform without digital communication ports. Its operational simplicity supports integration into GLP workflows where consistent, repeatable physical mixing is required.

🧠 Model Insight

🧪 Testing Applications

The MS-M-S10 is suitable for:

• Chemical sample preparation
• Buffer and reagent mixing
• Food and beverage QC workflows
• Environmental test laboratories
• Pharmaceutical R&D and formulation
• Academic and teaching laboratories

Compliance & Quality Assurance

The AELAB MS-M-S10 is manufactured under ISO-aligned quality systems and GLP-compatible production controls. All components meet CE safety requirements, including IP20 protection class and verified electrical conformity.

Magnetic stirrer accessories

Specifications
