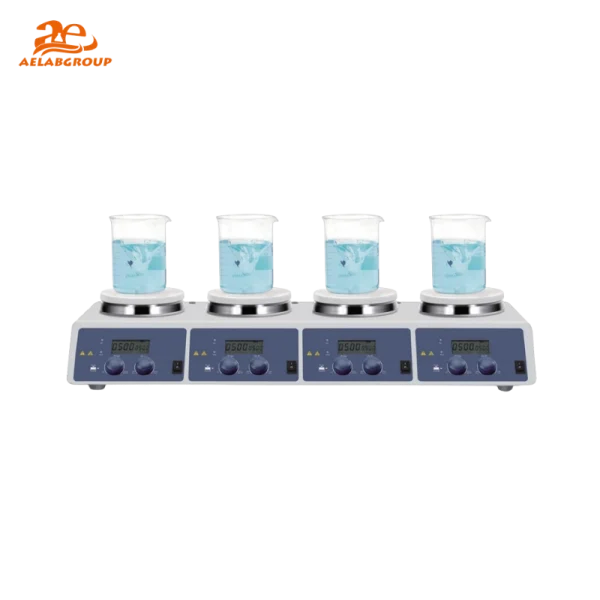

Model :MS-H340-S4
The AELAB MS-H340-S4 LCD Digital Magnetic Hotplate Stirrer provides four independent stirring and heating channels for parallel laboratory processing. Each position features PID-controlled heating up to 340 °C, brushless DC motor stirring up to 1500 rpm, and real-time LCD monitoring. Designed for high-capacity chemical synthesis, analytical workflows, and multipoint temperature-controlled mixing.
Need Help with This Product?
The AELAB MS-H340-S4 LCD 4-Channel Digital Magnetic Hotplate Stirrer is designed for chemical synthesis, physical and chemical analysis, and biopharmaceutical research. It provides independent heating and stirring for each position, supported by stable PID control and a quiet brushless DC motor system.
This multi-position stirring platform combines real-time LCD monitoring, a ceramic-coated Stainless Steel work plate, and precise external sensor feedback for accurate temperature regulation. Its robust construction and parallel workflow design make it suitable for demanding laboratory environments.
The AELAB MS-H340-S4 features four independently controlled positions, each with a Ø135mm Stainless Steel plate coated with durable ceramic to ensure chemical resistance and uniform heat distribution. The brushless DC motor provides smooth, maintenance-free stirring with excellent longevity. A reinforced frame and low-profile design ensure stability during high-volume mixing. Integrated overheating protection at 420 °C enhances operational safety in continuous laboratory use.
The instrument uses magnetic stirring technology, in which a rotating magnetic field drives a stir bar within the vessel. Each channel includes PID-regulated heating, ensuring accurate temperature performance from 25–340 °C. The LCD interface displays real-time stirring speed, temperature, and sensor feedback. External PT1000 sensing supports precise sample temperature measurement with ±0.2 °C accuracy.
The MS-H340-S4 supports external PT1000 temperature probe integration for closed-loop sample control. Data visibility through dual LCD panels ensures clear readouts of speed and temperature. The platform integrates smoothly into GLP laboratory workflows requiring consistent temperature records and multi-channel stirring support.
| Model | Specifications |
|---|---|
| MS-H340-S4 | Four stirring/heating positions, 200–1500rpm, 25–340 °C heating, 10L ×4 capacity, Stainless Steel ceramic-coated plates, 698×270×128mm, 9.5kg |
The AELAB MS-H340-S4 is suitable for chemical synthesis, sample preparation, reaction optimization, biopharmaceutical testing, titration mixing, and routine heating-stirring workflows. Its four-position layout supports parallel processing in organic chemistry, pharmaceuticals, education, and quality control laboratories.
The instrument is manufactured under strict AELAB quality control procedures, supporting ISO-aligned laboratory operation and GLP-compliant performance. Built-in temperature safeguards and certified components ensure reliable and safe operation in professional laboratory environments.
| Specifications | MS-H340-S4 |
|---|---|
| Work plate dimension | Ø135mm(5inch) ×4 |
| Plate material | Stainless steel with ceramic coating |
| Motor type | Brushless DC motor |
| Stirring positions | 4 |
| Max. stirring quantity of single position (H₂O) | 10L ×4 |
| Max. magnetic bar | 40mm |
| Speed range | 200–1500rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Control accuracy of sensor | ±20rpm |
| Temperature range | 25–340°C |
| Over temperature protection | 420°C |
| Temperature display accuracy | ±0.1°C |
| External temperature sensor | PT1000 (accuracy ±0.2°C) |
| IP Protection class | IP20 |
| Motor output power | 1.8W ×4 |
| Power | 515W ×4 |
| Heating Power | 500W ×4 |
| Voltage, Frequency | 100–120V, 60Hz; 200–240V, 50Hz |
| Dimensions (W×D×H) | 698×270×128mm |
| Weight | 9.5kg |
| Permissible ambient temperature | 5–40°C |
| Permissible relative humidity | 80%RH |
