Model :MS-H280-B / F Series

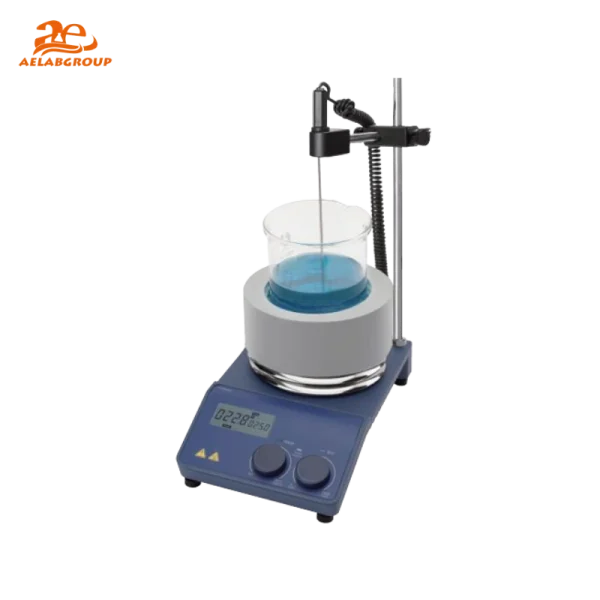

The AELAB MS-H280 Series Magnetic Stirrer with Heating Mantle combines high-strength magnetic stirring with uniform electrical mantle heating for precise liquid processing. Designed with interchangeable heating sleeves from 100 mL to 1000 mL, it provides stable temperature regulation and strong magnetic coupling for laboratory workflows. Its LCD digital interface and dual safety circuits ensure accurate, reliable, and repeatable heating and mixing performance.
Need Help with This Product?
The AELAB MS-H280 Series integrates a high-power magnetic stirrer with a precision electric heating mantle for uniform heating and strong magnetic coupling. With interchangeable heating sleeves for multiple beaker and flask sizes, it supports flexible liquid processing under controlled temperature conditions. The LCD digital display, safety monitoring circuits, and stable drive system make it suitable for scientific, industrial, and educational laboratories.
The MS-H280-B100/250/500/1000 and MS-H280-F100/250/500/1000 models provide accurate heating, strong stirring torque, and consistent temperature regulation. Designed for applications requiring simultaneous heating and mixing, the system maintains reliable thermal uniformity and repeatable stirring performance.
The AELAB MS-H280 Series features a durable metal housing with an LCD control panel for real-time monitoring of stirring and heating settings. The heating mantle incorporates high-quality Aluminum Silicate Fiber for uniform thermal distribution and corrosion resistance. Interchangeable sleeves accommodate 100–1000 mL vessels in both beaker and round-bottom flask formats. A brushless DC motor ensures quiet operation, long service life, and enhanced magnetic field strength for improved stirring of viscous solutions.
The integrated heating mantle surrounds the vessel, transferring heat through insulated Aluminum Silicate Fiber for stable and controlled temperature regulation. A high-strength magnetic field rotates a PTFE-coated stir bar placed inside the vessel. Temperature and speed adjustments are performed through the LCD digital panel, enabling precise control of heating, mixing, and incubation processes. The system supports independent adjustment of stirring speed and working temperature.
The MS-H280 Series includes an LCD interface with direct panel control for adjusting heating and stirring parameters. The system supports digital monitoring of temperature and operational status. No external communication ports were listed in the provided catalog materials.

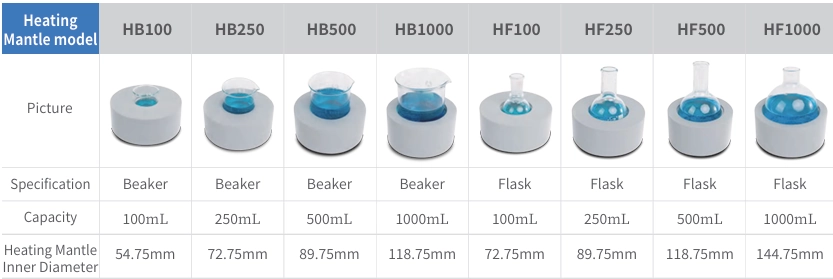

| Model | Capacity | Compatible Vessel Type | Inner Diameter |
|---|---|---|---|
| MS-H280-B100 | 100 mL | Beaker | 54.75 mm |
| MS-H280-B250 | 250 mL | Beaker | 72.75 mm |
| MS-H280-B500 | 500 mL | Beaker | 89.75 mm |
| MS-H280-B1000 | 1000 mL | Beaker | 118.75 mm |
| MS-H280-F100 | 100 mL | Flask | 72.75 mm |
| MS-H280-F250 | 250 mL | Flask | 89.75 mm |
| MS-H280-F500 | 500 mL | Flask | 118.75 mm |
| MS-H280-F1000 | 1000 mL | Flask | 144.75 mm |
The AELAB MS-H280 Series is manufactured under ISO-aligned quality standards with safety-tested components, dual-circuit protection, HOT surface indication, and precise thermal calibration. Each unit undergoes performance verification to ensure consistent stirring stability and long-term laboratory reliability.
