Model :752N
752N UV-VIS spectrophotometer adopts advanced proportional double beam optical system and low noise circuit design, with excellent reliability and stability. It can meet the needs of daily analysis, scientific researchand other applications.
Need Help with This Product?

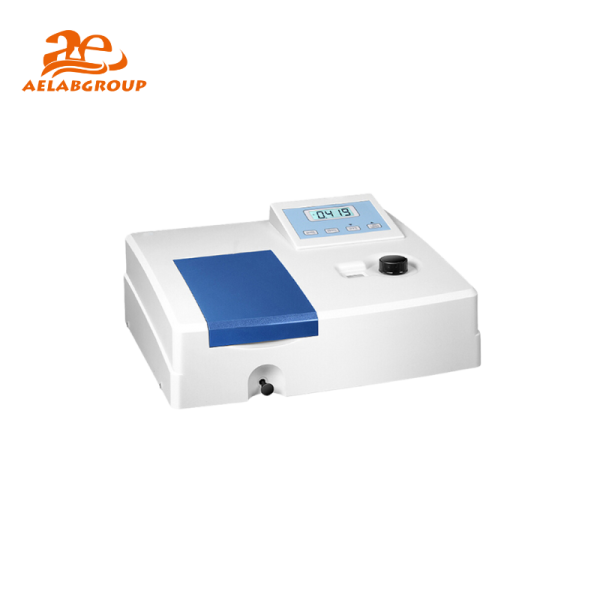

The AELAB Single Beam UV-VIS Spectrophotometer 752N integrates an advanced proportional double beam optical system and low noise circuit design, ensuring high reliability and stability. Designed for a wide range of applications including daily analysis and scientific research, it supports a sample compartment for 5-50mm cuvettes and features precise automatic T/A changeover. Additionally, it offers automatic zero and full-scale adjustment, direct concentration read-out, and the ability to set concentration factors. With RS232 and USB ports, it ensures seamless data transfer and connectivity for enhanced usability and flexibility.
Features:
| Model | 752N (UV Visible) |
| Photometry | Single beam |
| Monochromator type | Czerny-Tuner |
| Focal length | 160mm |
| Detector | Silicon Photocell |
| Wavelength setting | Manual Turn Knob |
| Wavelength Range | 200-1000nm |
| Wavelength Accuracy | ± 2nm |
| Wavelength Repeatability | ≤ 1nm |
| Spectrum Bandwidth | 4nm |
| Stray Light | ≤ 0.1%T(at 220nm Nal,360 nm NaNO₂ ) |
| Photometric Range | 0.0 ~ 100.0% T / 0 ~ 1.999A / 0 ~ 1999C |
| Photometric Accuracy | ± 0.5% T |
| Photometric Repeatability | ≤ 0.2% T |
| Noise | 100%(T) noise ≤ 0.3% (T), 0% (T) noise ≤ 0.2% (T) |
| Cuvette holder size | 10mm |
| Power | AC220v±22v,50Hz± 1Hz, 80W |
| Packing size | 575*460*340mm, 0.1㎥ |
| Gloss weight | 16.5kg |
| Standard accessory | User manual 1pc;Glass cuvette 1cm 4pcs ; Quartz cuvette 1cm;Power cable 1pcs ; Fuse 2pcs, PC Software. |
| Optional accessory | Thermal printer ; 50mm cuvette holder ; |
