Overview

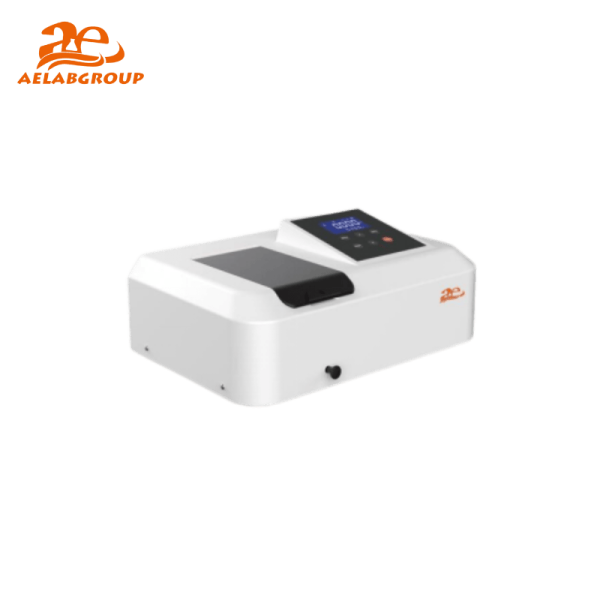

The AELAB AE-SP1000 Series Visible / UV-Visible Spectrophotometer is engineered for precise optical measurement of absorbance, transmittance, and concentration. Designed for laboratory, environmental, and industrial quality control, it combines automatic wavelength control, digital data processing, and multi-source illumination for accurate photometric analysis across 190–1100 nm.
⚙️ Design & Construction
The AE-SP1000 Series employs a single-beam optical system with a 1200 line/mm diffraction grating to ensure high spectral resolution. The durable chassis integrates a Segment LCD (80×52 mm backlit display) for direct absorbance, transmittance, and concentration readings. Precision alignment and a modular lamp housing minimize stray light. The optical base is manufactured from corrosion-resistant alloy with anti-vibration mounting for stable long-term performance.
🔬 Working Principle / Testing Method
The instrument measures light absorption by passing a controlled wavelength through the sample and detecting transmitted intensity using a silicon photodiode detector. Automatic zero and 100 %T calibration functions ensure baseline accuracy, while automatic wavelength adjustment (≤ 0.5 nm step) eliminates manual error. UV-Visible switching uses an automatic light-seeking system that compensates for lamp changes and mechanical shifts.
💡 Key Advantages
- Automatic wavelength calibration with 0.5 nm precision step.
- Energy-saving Deuterium lamp system extends lamp lifetime.
- Multiple power modes: AC input, DC 12 V, or lithium battery (available variant).
- Built-in printer and USB data output for GLP compliant record keeping.
- High photometric stability with stray light < 0.2 %T.
- Compact 7–8 kg design for bench-top laboratories.
- Supports photometry, quantitative, and kinetic measurement modes.
🔗 Connectivity & Integration
- USB memory export for method and result storage (up to 9999 records).
- Built-in thermal printer for direct data output.
- Optional PC software for extended data processing and graphical analysis.
- One-click firmware update and auto-language switching (EN/CN).
🧠 Model Insight
| Model |
Wavelength Range (nm) |
Lamp Configuration |
Weight (kg) |
| AE-SP1000 (VIS) |
320 – 1100 |
Tungsten |
7 |
| AE-SP1000 (UV) |
190 – 1100 |
Tungsten & Deuterium |
8 |
🧪 Testing Applications
The AE-SP1000 Series is suitable for absorbance, transmittance, and concentration analysis in chemical, pharmaceutical, food, environmental, and educational laboratories. It supports DNA/protein assays, optical purity testing, and quantitative photometric analysis for quality control and research laboratories.
Compliance & Quality Assurance
Manufactured under strict ISO and CE standards, each AELAB AE-SP1000 unit undergoes multi-stage optical alignment and electronic calibration verification. Calibration traceability, firmware QA, and optical alignment stability ensure long-term reliability and compliance with GLP documentation requirements.
Product photo

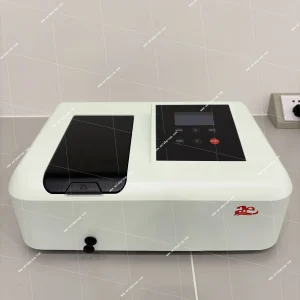

This top view highlights the sample compartment and LCD control panel, allowing users to perform absorbance, transmittance, and concentration measurements with clear operation and easy result reading.

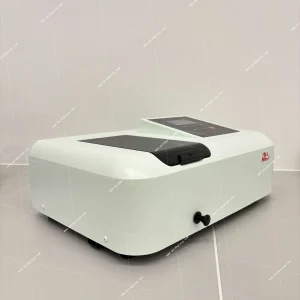

The AE-SP1000 Series is designed for visible and UV-visible spectrophotometric analysis, supporting applications in chemistry, pharmaceuticals, food testing, environmental monitoring, and research laboratories.
The AELAB AE-SP1000 Series features a compact benchtop body with a clean, practical design, making it suitable for routine photometric analysis in laboratories, schools, and quality control environments.

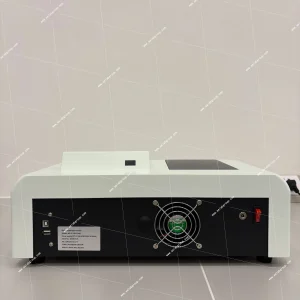

The rear panel includes power control, cooling ventilation, and data connection ports, supporting stable operation and convenient data output for laboratory record management.
