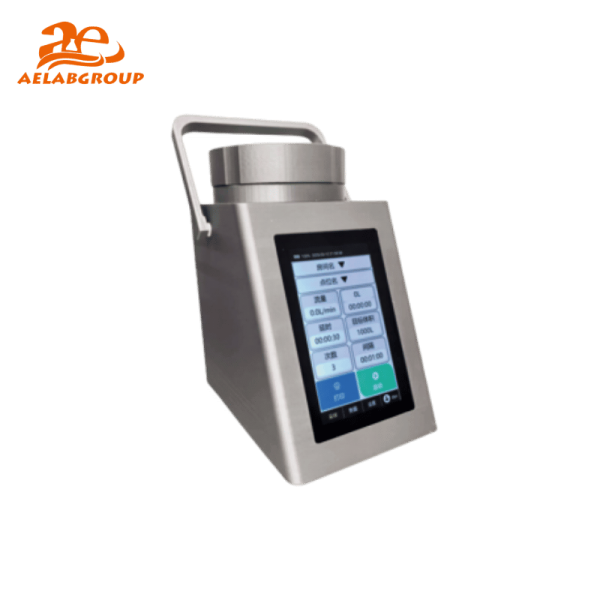

Viable Microbial Air Sampler AE-V

Overview

Product Overview

The AELAB AE-V is a Viable Microbial Air Sampler designed for airborne microbial sampling and microbial contamination monitoring in cleanroom environments.

The sampler is based on isokinetic sampling theory and uses a medical-grade SUS 316L sampling head. Through precise airflow control, it dynamically matches the sampling wind speed with the cleanroom environment wind speed to support efficient capture of microbial particles.

The AE-V provides a sampling flow rate of 100L/min ±5% and an adjustable sampling volume from 1~9999L. Continuous sampling and segmented sampling modes are selectable, while standard 90mm petri dishes are supported with adjustment for dishes from 85mm to 91mm.

A 5-inch color touch screen provides a user-friendly interface with an ergonomic tilt angle for operation and observation of real-time flow feedback. The instrument supports both Chinese and English operation and uses a built-in rechargeable lithium battery for ≥6h continuous operation.

Key Features

• Isokinetic Sampling: Precise airflow control dynamically matches sampling wind speed with cleanroom environment wind speed.
• SUS 316L Sampling Head: Integrated medical-grade SUS 316L stainless steel sampling head.
• Three-Level Management Permissions: Supports three-level user management permissions and audit trail functionality.
• Wireless Data Functions: Supports wireless export and Bluetooth printing.
• 5-Inch Color Touch Screen: Provides a user-friendly UI for instrument operation.
• Bilingual Operation: Supports both Chinese and English operation.
• Ergonomic Display Angle: Angled interface supports convenient operation and observation of real-time flow feedback.
• Selectable Sampling Modes: Continuous sampling and segmented sampling modes are available.
• Portable Battery Operation: Built-in rechargeable lithium battery supports ≥6h continuous operation.

Applications

• Cleanroom Microbial Contamination Monitoring: Airborne microbial sampling in cleanroom environments.
• Pharmaceuticals: The catalog identifies pharmaceutical applications for microbial contamination monitoring.
• Microelectronics: Suitable for microbial contamination monitoring in microelectronics environments.
• Other Controlled Environments: The catalog also states that the sampler can be used in other fields requiring microbial contamination monitoring.

Sampling and Data Functions

• Sampling Flow Rate: 100L/min ±5%
• Sampling Volume: Adjustable from 1~9999L
• Sampling Modes: Continuous sampling and segmented sampling
• Petri Dishes: Standard 90mm dishes, adjustable for 85mm-91mm
• Wireless Connectivity: WIFI 2.4G and BT 5.0

Materials and Construction

• Sampling Head: 316L stainless steel; aluminum optional
• Housing: Stainless steel; aluminum optional
• Dust Cover: Stainless steel; aluminum optional
• Overall Dimensions: 120mm (L) × 180mm (W) × 200mm (H)
• Weight: 3KG

Optional Accessories

• Bluetooth Printer: Optional
• Data Acquisition Software: Optional

Product Information

• Brand: AELAB
• Manufacturer: AELAB GUANGZHOU CO., LTD.
• Product Type: Viable Microbial Air Sampler
• Model: AE-V
• Sampling Principle: Isokinetic sampling
• Sampling Flow Rate: 100L/min ±5%
• Sampling Volume: 1~9999L
• Display: 5-inch color touch screen

FAQ

What is the AE-V Viable Microbial Air Sampler used for?

It is designed for airborne microbial sampling and microbial contamination monitoring in cleanroom environments. The catalog specifically identifies pharmaceuticals and microelectronics among its application fields.

What is the sampling flow rate?

The specified sampling flow rate is 100L/min ±5%.

What sampling volume can be set?

The sampling volume is adjustable from 1~9999L.

What sampling modes are available?

The AE-V supports continuous sampling and segmented sampling modes.

Which petri dish sizes are compatible?

The sampler is compatible with standard 90mm petri dishes and can be adjusted for dishes from 85mm to 91mm.

How long can the AE-V operate on battery power?

The built-in rechargeable lithium battery provides ≥6h continuous operation.

What wireless connectivity is provided?

The technical specifications list WIFI 2.4G and BT 5.0. The catalog also states that the instrument supports wireless export and Bluetooth printing.

What materials are used for the sampling head, housing and dust cover?

The sampling head is 316L stainless steel, with aluminum optional. The housing and dust cover are specified as stainless steel, with aluminum optional.

Is a Bluetooth printer included as standard?

No. The Bluetooth printer is listed as optional. Data acquisition software is also optional.
