Model :AE-100F
Need Help with This Product?

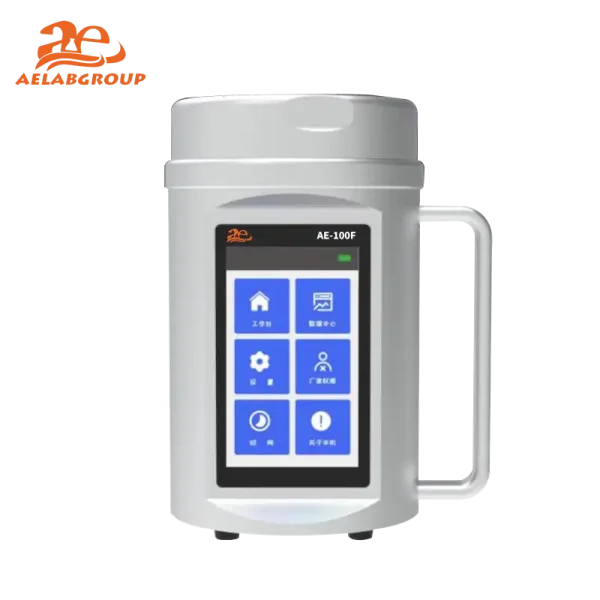

The AELAB AE-100F is an Air Bacteria Sampler designed for cleanroom and facility monitoring. It operates at a catalog-specified flow rate of 100L/min ±5% and provides adjustable sample volumes from 1-9999L.
The sampler uses a 4.3-inch color touch screen that can be operated while wearing gloves. Up to 100 sampling point groups can be preset, while sampling settings and related data can be stored for reuse.
The AE-100F provides 0.38m/s constant speed sampling and a specified impact velocity of 10.8m/s using the catalog-described Anderson impact level 5 principle. A Φ90mm petri dish size is recommended.
The instrument stores up to 10,000 records and uses a rechargeable power system specified as AC220V to DC16.8V, with battery operation of ≥8 hours.
The catalog contains two different values for the sampling delay and interval settings. Feature 5 visually states 0-999S, while the Technical Parameters table states 0-99S (adjustable) for both Sampling delay time and Sampling interval. The Technical Specifications section below preserves the table values exactly and does not attempt to infer which value was intended.
The AE-100F is designed for air bacteria sampling in cleanroom and facility monitoring. The catalog also lists pharmaceutical, food, beverage and tap-water facilities, drug inspection institutes, health and epidemic prevention, hospitals and public places among its applicable fields.
The supplied product catalog identifies the instrument as a Bacteria Sampler / air bacteria sampler and does not specify a fluorescence measurement principle or fluorescent detection function. The catalog-supported product name is therefore Air Bacteria Sampler AE-100F.
The specified rate of flow is 100L/min ±5%.
The sample volume is adjustable from 1-9999L.
The AE-100F can preset 100 point groups and has a data storage capacity of 10,000 records.
The catalog recommends a Φ90mm petri dish diameter.
The Technical Parameters table specifies a 10.8m/s impact velocity with the catalog wording “Anderson impact level 5 principle.” The sampling rate is 0.38m/s for constant speed sampling.
The catalog specifies battery life of ≥8 hours.
No. The Bluetooth printer is explicitly described as optional and is intended for real-time printing and data saving.
The catalog states that the AE-100F is compatible with high-pressure separators to meet compressed-air monitoring requirements in clean rooms.
| Parameter | AE-100F |
|---|---|
| Rate of flow | 100L/min ±5% |
| Control method | 4.3-inch color touch screen, can be operated with gloves |
| PT | You can preset 100 point groups |
| Sample volume | 1-9999L (adjustable) |
| Sampling delay time | 0-99S (adjustable) |
| Sampling interval | 0-99S (adjustable) |
| Sampling rate | 0.38m/s (constant speed sampling) |
| Data storage capacity | 10,000 |
| Recommended petri dish size (diameter) | Φ90mm |
| Impact velocity | 10.8m/s (Anderson impact level 5 principle) |
| Sampling head material | Anodic aluminum oxide |
| Battery life | >=8 hours |
| Power source | AC220V to DC16.8V |
| Body material | Anodic aluminum oxide |
| Size | 14.7*11.5*19.0cm (Length*Width*Height) |
| Weight | 1.8kg |
| Power | 20W |
| Storage temperature | -30—40℃ |
| Storage humidity | 0—90 % RH |
| Storage pressure | 80—110kPa |
| End-use temperature | 10—40℃ |
| Operating humidity | 10—90 % RH |
| Working pressure | 80—110kPa |
| Applicable industry | Pharmaceutical industry, food industry, beverage tap water, drug inspection institute, health and epidemic prevention, hospital, public place, etc |
