Overview
Product Overview

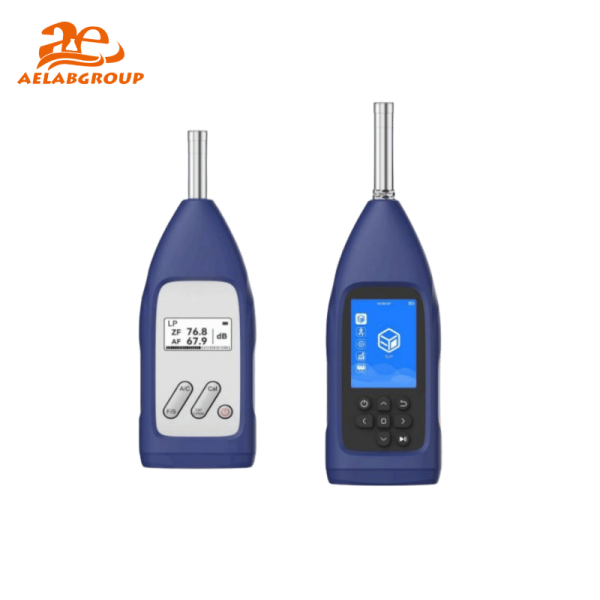

The AELAB CRY2830 Series is a family of sound level meters designed for sound and noise measurement across different monitoring requirements. Five models are available: CRY2831, CRY2834, CRY2833, CRY2833-L and CRY2833-H.
The series ranges from the basic CRY2831 non-integrating sound level meter to multifunctional models providing integrating measurement, statistical analysis, optional 1/1 octave and 1/3 octave analysis, optional monitoring functions and 32GB microSD data storage.
Selected models meet IEC 61672-1:2013 accuracy classifications. CRY2831 and CRY2834 are specified as Class 2, while CRY2833 is specified as Class 1. The supplied catalog does not state an IEC accuracy class for the CRY2833-L or CRY2833-H.
Model-dependent measurement ranges extend from the low-SPL CRY2833-L at 14～130 dB(A) to the high-SPL CRY2833-H at 44～160 dB(A), allowing selection according to the required sound-pressure-level range and measurement functions.
Key Features
- Five Model Configurations: Includes basic, multifunctional, low-SPL and high-SPL configurations for different acoustic measurement requirements.
- Class 1 and Class 2 Options: CRY2833 is IEC 61672-1:2013 Class 1; CRY2831 and CRY2834 are Class 2.
- Wide Model-Dependent Measurement Ranges: Available ranges extend from 14～130 dB(A) for CRY2833-L to 44～160 dB(A) for CRY2833-H.
- A/C/Z Frequency Weighting: A, C and Z frequency weighting is specified across all five models.
- Integrating and Statistical Measurement: CRY2834, CRY2833, CRY2833-L and CRY2833-H provide integrating measurement and statistical analysis.
- Optional Octave Analysis: The four advanced models list 1/1 Oct and 1/3 Oct measurement as optional functions.
- Optional Monitoring: Monitoring is listed as an optional function on CRY2834, CRY2833, CRY2833-L and CRY2833-H.
- 32GB microSD Data Storage: The four advanced models list data storage using a 32GB microSD card.
- Flexible Interfaces: Advanced models provide AC/DC, USB-C and RS232, together with BT/WiFi or GPS as a selectable option.
- Display Options: CRY2831 uses a 128 × 64 Dot Matrix LCD, while the other four models use a 320 × 240 TFT Display.
Applications
- Product Development: Test and certify product noise levels and support quality control.
- Environmental Protection: Monitor and reduce noise pollution in urban and industrial areas. The catalog also identifies automatic environmental noise monitoring, traffic noise, online/digital surveillance of noise pollution sources and airport noise monitoring.
- Occupational Safety: Monitor and control workplace noise levels to support compliance with noise regulations; occupational health measurement is also identified in the catalog.
- Engineering and Construction: Evaluate the impact of noise generated by machinery and construction activities.
Model Comparison
| Model |
Type |
Standard |
Measurement Range |
Frequency Range |
Display |
| CRY2831 |
Basic |
IEC 61672-1:2013 Class 2 |
29 – 138 dB(A) |
20 Hz – 12.5k Hz |
128 × 64 Dot Matrix LCD |
| CRY2834 |
Multi-functional |
IEC 61672-1:2013 Class 2 |
25 – 140 dB(A) |
20 Hz – 12.5k Hz |
320 × 240 TFT Display |
| CRY2833 |
Multi-functional |
IEC 61672-1:2013 Class 1 |
25 – 140 dB(A) |
10 Hz – 20k Hz |
320 × 240 TFT Display |
| CRY2833-L |
Low SPL |
Not specified in supplied catalog |
14 – 130 dB(A) |
10 Hz – 12k Hz |
320 × 240 TFT Display |
| CRY2833-H |
High SPL |
Not specified in supplied catalog |
44 – 160 dB(A) |
10 Hz – 20k Hz |
320 × 240 TFT Display |
Measurement Functions
CRY2831 is the basic non-integrating model and measures Lp and Lmax. CRY2834, CRY2833, CRY2833-L and CRY2833-H provide integrating and statistical measurement with the parameters Lp, Leq,t, Lpeak, Leq,T, Lmax, Lmin, LN (n=5, 10, 50, 90, 95) and SD.
The catalog also identifies 1/1 octave analysis, 1/3 octave analysis and monitoring as optional functions on the four advanced models. Its series highlights additionally mention sound exposure measurement, 24-hour measurement, recording and storage capabilities.
Connectivity and Data Storage
- CRY2831: AC/DC interface
- CRY2834: AC/DC, USB-C, RS232, BT/WiFi or GPS (select one)
- CRY2833: AC/DC, USB-C, RS232, BT/WiFi or GPS (select one)
- CRY2833-L: AC/DC, USB-C, RS232, BT/WiFi or GPS (select one)
- CRY2833-H: AC/DC, USB-C, RS232, BT/WiFi or GPS (select one)
- Data Storage: 32GB microSD card is listed for CRY2834, CRY2833, CRY2833-L and CRY2833-H.
Accessory Ordering Information
| Name |
Model |
Description |
| Outdoor Protection Device |
NA41 |
IP65 Rated Wind and Rain Shield |
| Calibrator |
CRY563A |
Class 1 Sound Calibrator |
| Extension Cable |
BL2121 |
5m Extension Cable |
Product Information
- Brand: AELAB
- Manufacturer: AELAB GUANGZHOU CO., LTD.
- Product Type: Sound Level Meter
- Series: CRY2830 Series
- Models: CRY2831, CRY2834, CRY2833, CRY2833-L and CRY2833-H
- Frequency Weighting: A, C, Z
- IEC 61672-1:2013: Class 2 for CRY2831/CRY2834; Class 1 for CRY2833
FAQ
Which models are included in the CRY2830 Series?
The series includes CRY2831, CRY2834, CRY2833, CRY2833-L and CRY2833-H.
Which CRY2830 models are Class 1 or Class 2?
CRY2831 and CRY2834 are specified as IEC 61672-1:2013 Class 2, while CRY2833 is Class 1. The supplied catalog does not specify an IEC class for CRY2833-L or CRY2833-H.
What sound level measurement ranges are available?
CRY2831 covers 29～138 dB(A), CRY2834 and CRY2833 cover 25～140 dB(A), CRY2833-L covers 14～130 dB(A), and CRY2833-H covers 44～160 dB(A).
Which model is intended for low or high sound pressure levels?
CRY2833-L is identified as the Low SPL model with a 14～130 dB(A) range, while CRY2833-H is the High SPL model with a 44～160 dB(A) range.
Do all models provide integrating and statistical analysis?
No. CRY2831 is specified as a non-integrating model. CRY2834, CRY2833, CRY2833-L and CRY2833-H provide integrating measurement and statistical analysis.
Are octave-band analysis and monitoring standard functions?
No. The technical table lists 1/1 Oct, 1/3 Oct and Monitoring as optional functions on CRY2834, CRY2833, CRY2833-L and CRY2833-H.
What frequency and time weightings are available?
All five models support A, C and Z frequency weighting. CRY2831 provides F and S time weighting, while the other four models provide F, S and I.
What data interfaces are available?
CRY2831 provides AC/DC. CRY2834, CRY2833, CRY2833-L and CRY2833-H provide AC/DC, USB-C and RS232, together with BT/WiFi or GPS as a selectable option.
What accessories are listed for the CRY2830 Series?
The catalog lists the NA41 Outdoor Protection Device, CRY563A Calibrator and BL2121 Extension Cable in its Accessory Ordering Information section.
