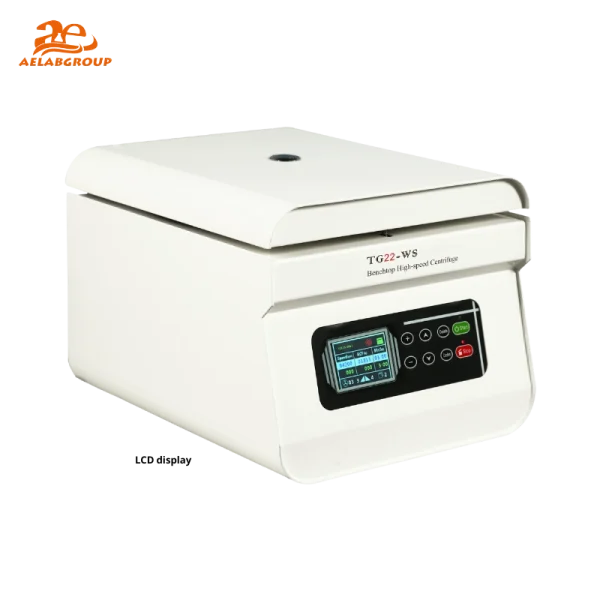

AELAB TG20/22-WS Benchtop High Speed Centrifuge for PCR and Clinical Sample Separation

Overview

The AELAB TG20/22-WS Benchtop High Speed Centrifuge is designed for routine laboratory centrifugation in biotechnology, PCR, life science, and clinical diagnostic workflows. The TG20/22-WS centrifuge supports routine sample analysis for Medical, Hospital, and Institutional laboratories, providing stable high-speed separation with flexible rotor head selection.

The AELAB TG20/22-WS Benchtop High Speed Centrifuge features a reliable drive system with low noise and stable operation. Integrated protection for door lock, over-speed, and imbalance improves operational safety, while the stainless steel chamber and full metal structure support long service life in demanding laboratory environments.

⚙️ Design & Construction

The AELAB TG20/22-WS Benchtop High Speed Centrifuge uses a stainless steel chamber and full metal housing structure for mechanical stability and corrosion resistance in laboratory testing environments. The TG20/22-WS centrifuge incorporates a secure lid-lock safety system and manual emergency lid release, supporting controlled access during unexpected power interruption. LCD or digital display versions allow clear parameter visualization for speed and timer operation.

🔬 Working Principle / Testing Method

The AELAB TG20/22-WS Benchtop High Speed Centrifuge separates samples by applying controlled centrifugal force (RCF) generated by high-speed rotor rotation. During operation, the TG20/22-WS centrifuge accelerates samples to the programmed rotational speed (r/min), producing radial force that stratifies components by density. The brushless converter motor regulates acceleration and speed stability to maintain repeatable separation for PCR preparation, clinical blood processing, and routine laboratory sample clarification.

💡 Key Advantages

• The AELAB TG20/22-WS Benchtop High Speed Centrifuge reaches up to 22000 r/min and 34700 ×g for high-efficiency separation
• Speed accuracy of ±10 r/min improves repeatability across routine PCR and clinical laboratory workflows
• Programmable timer range 0–99 min supports controlled protocol timing for sample preparation and analytical testing
• Door lock, over-speed, and imbalance protection enhances safe centrifuge operation in hospital and institutional laboratories
• Brushless converter motor provides stable start-up and controlled acceleration to protect sensitive samples
• Noise level ≤60 dB(A) reduces acoustic impact in compact laboratory spaces
• Wide rotor head and adapter compatibility enables versatile tube formats for routine and specialized laboratory centrifugation

🔗 Connectivity & Integration

The AELAB TG20/22-WS Benchtop High Speed Centrifuge is available with LCD or digital display operation to support standardized laboratory workflows. The TG20/22-WS centrifuge provides direct parameter input for speed and timer control, enabling reproducible runs for diagnostic and industrial testing processes. (No external data export interface is specified in the provided image data.)

🧠 Model Insight

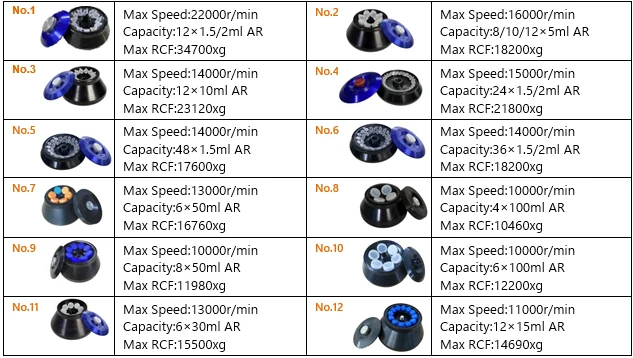

Rotor Options (As Listed)

The AELAB TG20/22-WS Benchtop High Speed Centrifuge supports multiple rotor configurations for microtubes and routine clinical tubes. Rotors can be customized.

• No.1: Max Speed 22000 r/min; Capacity 12 × 1.5/2 mL AR; Max RCF 34700 ×g
• No.2: Max Speed 16000 r/min; Capacity 8/10/12 × 5 mL AR; Max RCF 18200 ×g
• No.3: Max Speed 14000 r/min; Capacity 12 × 10 mL AR; Max RCF 23120 ×g
• No.4: Max Speed 15000 r/min; Capacity 24 × 1.5/2 mL AR; Max RCF 21800 ×g
• No.5: Max Speed 14000 r/min; Capacity 48 × 1.5 mL AR; Max RCF 17600 ×g
• No.6: Max Speed 14000 r/min; Capacity 36 × 1.5/2 mL AR; Max RCF 18200 ×g
• No.7: Max Speed 13000 r/min; Capacity 6 × 50 mL AR; Max RCF 16760 ×g
• No.8: Max Speed 10000 r/min; Capacity 4 × 100 mL AR; Max RCF 10460 ×g
• No.9: Max Speed 10000 r/min; Capacity 8 × 50 mL AR; Max RCF 11980 ×g
• No.10: Max Speed 10000 r/min; Capacity 6 × 100 mL AR; Max RCF 12200 ×g
• No.11: Max Speed 13000 r/min; Capacity 6 × 30 mL AR; Max RCF 15500 ×g
• No.12: Max Speed 11000 r/min; Capacity 12 × 15 mL AR; Max RCF 14690 ×g

🧪 Testing Applications

The AELAB TG20/22-WS Benchtop High Speed Centrifuge is suitable for centrifugation and separation workflows in biotechnology laboratories, PCR sample preparation, life science research, and clinical diagnostic settings. The TG20/22-WS centrifuge supports routine hospital testing for blood fractionation, serum separation, and sample clarification, while also supporting industrial laboratory processing in food testing, biochemical analysis, and material quality control where repeatable centrifugal separation is required.

Compliance & Quality Assurance

The AELAB TG20/22-WS Benchtop High Speed Centrifuge is engineered for controlled laboratory operation with integrated door lock protection, over-speed protection, and imbalance monitoring to support standardized laboratory quality systems. The TG20/22-WS centrifuge stainless steel chamber construction supports cleaning and contamination control in diagnostic and analytical environments. For ISO / CE / GLP documentation, certification and calibration traceability should be confirmed against the official AELAB compliance documentation for the delivery region.

Discover precision separation performance with AELAB TG20/22-WS Benchtop High Speed Centrifuge — engineered for stable PCR, life science, and clinical laboratory centrifugation with configurable rotor versatility and verified high-speed performance.

Rotor:

Specifications
