Model :TGL-24M , TGL-24MC , iTGL-24MC
The AELAB TGL-24M/MC Benchtop High Speed Refrigerated Centrifuge performs high-RCF, temperature-controlled separation for bio-technology, PCR, life science, and clinical laboratories. With a maximum speed of 24000 r/min, maximum relative centrifugal force of 47800 × g, and refrigeration range of −20 °C to +40 °C, the AELAB TGL-24M/MC ensures stable, repeatable routine sample analysis across multiple rotor configurations.
Need Help with This Product?
The AELAB TGL-24M/MC Benchtop High Speed Refrigerated Centrifuge is designed for routine application in bio-technology, PCR, life science, and clinical laboratories. The AELAB TGL-24M/MC refrigerated centrifuge supports routine sample analysis in medical, hospital, and institutional laboratory environments and provides a wide selection of rotor heads and adapters for flexible centrifugation workflows.
The AELAB TGL-24M/MC Benchtop High Speed Refrigerated Centrifuge integrates stable refrigeration control and rapid acceleration for high-throughput separation. With temperature regulation from −20 °C to +40 °C and maximum force of 47800 × g, the AELAB TGL-24M/MC centrifuge platform improves repeatability for PCR preparation, clinical pellet formation, and biochemical sample processing.
The AELAB TGL-24M/MC Benchtop High Speed Refrigerated Centrifuge uses a system microprocessor for controlled centrifugation and integrates a CFC-free compressor refrigeration system for stable temperature regulation. The AELAB TGL-24M/MC includes a sealed benchtop housing optimized for laboratory airflow management and operational stability under high-speed loading conditions. The lid safety interlock prevents accidental opening during operation, ensuring controlled rotor containment.
The AELAB TGL-24M/MC Benchtop High Speed Refrigerated Centrifuge separates samples by applying centrifugal force up to 47800 × g at speeds reaching 24000 r/min. During operation, the microprocessor regulates rotor speed and refrigeration output while the user sets time parameters within the 0–99 min timer range. The AELAB TGL-24M/MC maintains specified temperature conditions to support temperature-sensitive clinical and molecular workflows such as PCR pre-clarification and protein fractionation.
The AELAB TGL-24M/MC Benchtop High Speed Refrigerated Centrifuge is supplied in three interface configurations while maintaining the same core speed, RCF, and refrigeration performance.
| Variant | Display Type | Max Speed (r/min) | Max RCF (× g) | Temperature Range (°C) |
| TGL-24M | Digital | 24000 | 47800 | −20 ~ +40 |
| TGL-24MC | LCD | 24000 | 47800 | −20 ~ +40 |
| iTGL-24MC | Touch LCD | 24000 | 47800 | −20 ~ +40 |

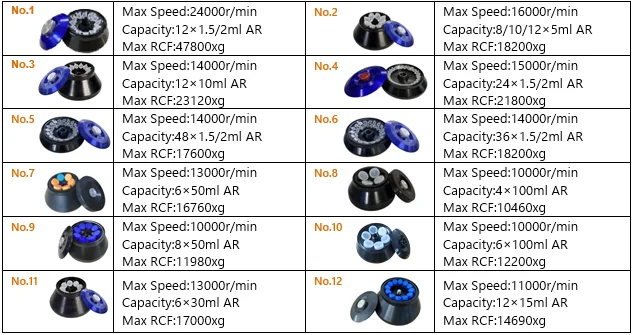

The AELAB TGL-24M/MC Benchtop High Speed Refrigerated Centrifuge supports multiple rotor configurations for microtubes, medium-volume tubes, and high-volume separation. Rotors can be customized as required.
| Rotor No. | Max Speed (r/min) | Capacity | Max RCF (× g) |
| No.1 | 24000 | 12 × 1.5/2 mL AR | 47800 |
| No.2 | 16000 | 8/10/12 × 5 mL AR | 18200 |
| No.3 | 14000 | 12 × 10 mL AR | 23120 |
| No.4 | 15000 | 24 × 1.5/2 mL AR | 21800 |
| No.5 | 14000 | 48 × 1.5/2 mL AR | 17600 |
| No.6 | 14000 | 36 × 1.5/2 mL AR | 18200 |
| No.7 | 13000 | 6 × 50 mL AR | 17670 |
| No.8 | 10000 | 4 × 100 mL AR | 14060 |
| No.9 | 10000 | 8 × 50 mL AR | 11980 |
| No.10 | 10000 | 6 × 100 mL AR | 12200 |
| No.11 | 13000 | 6 × 30 mL AR | 17000 |
| No.12 | 11000 | 12 × 15 mL AR | 14690 |
The AELAB TGL-24M/MC Benchtop High Speed Refrigerated Centrifuge is suitable for routine sample preparation and separation across medical, clinical, and institutional laboratories. Typical applications include PCR sample preparation, serum and plasma separation, microbiological pellet formation, biochemistry processing, and routine life science centrifugation. The AELAB TGL-24M/MC refrigerated centrifuge supports flexible rotor selection for microcentrifuge tubes, conical tubes, and higher-volume sample containers.
The AELAB TGL-24M/MC Benchtop High Speed Refrigerated Centrifuge is engineered for controlled laboratory operation with safety interlock protection, emergency lid locking, and stable microprocessor speed regulation. Temperature control from −20 °C to +40 °C supports repeatable processing under GLP-style workflows. The AELAB TGL-24M/MC platform is designed for consistent routine analysis, method recall, and controlled rotor identification (TGL-24MC variants) to reduce operator error during centrifugation.
For laboratories requiring stable refrigeration, high-speed performance, and flexible rotor capacity up to 4 × 100 mL, the AELAB TGL-24M/MC Benchtop High Speed Refrigerated Centrifuge provides controlled separation for PCR, clinical, and life science workflows with verified technical parameters and safe operation.
Rotor:
| Model | TGL-24M | TGL-24MC | iTGL-24MC | Noise | ≤60 dB(A) |
| Display | Digital | LCD | Touch LCD | Timer Range | 0~99 min |
| Max Speed | 24000 r/min | Temp Range | −20 °C ~ +40 °C | ||
| Max RCF | 47800 × g | Max Capacity | 4 × 100 mL | ||
| Speed Accuracy | ±50 r/min | Power Supply | AC220 V & 110 V, 50 Hz, 18 A | ||
| Weight | 65 kg | Dimension | 540 × 625 × 380 mm | ||
