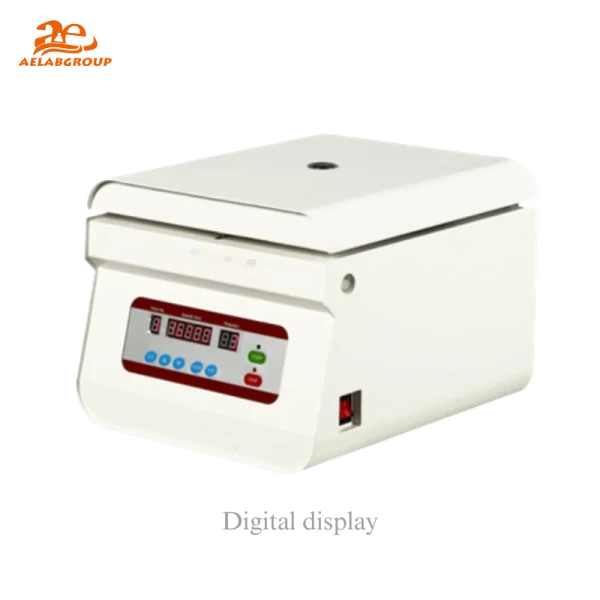

TG18-WS Benchtop High Speed Centrifuge for PCR and Clinical Sample Separation

Overview

The AELAB TG18-WS benchtop high speed centrifuge is engineered for routine centrifugal separation in biotechnology, PCR testing, life science research, and clinical laboratory diagnostics. Designed for medical, hospital, and institutional laboratories, the TG18-WS centrifuge combines stable performance, low operational noise, and a wide selection of compatible rotors.

With a maximum rotational speed of 18,000 rpm and a peak relative centrifugal force of 24,500 ×g, the AELAB TG18-WS centrifuge supports efficient sample processing while maintaining consistent accuracy and operational safety.

⚙️ Design & Construction

The AELAB TG18-WS benchtop high speed centrifuge features a full metal structure with a Stainless Steel chamber for durability and contamination resistance. A brushless converter motor with frequency drive ensures smooth acceleration, gentle startup, and stable operation. Integrated safety systems provide protection against door opening, overspeed conditions, and rotor imbalance.

🔬 Working Principle / Testing Method

The TG18-WS centrifuge applies controlled centrifugal force to separate components based on density differences. Samples loaded into compatible rotors are accelerated to preset rotational speeds, generating relative centrifugal force that enables sedimentation of cellular, biochemical, or particulate components. Speed accuracy and time control ensure reproducible laboratory results.

💡 Key Advantages

• Maximum rotational speed of 18,000 rpm for rapid sample separation
• High centrifugal force up to 24,500 ×g for efficient sedimentation
• Brushless converter motor ensures low vibration and extended service life
• Noise level ≤60 dB(A) supports quiet laboratory environments
• Manual emergency lid release for power interruption safety
• Multiple rotor options support diverse tube volumes

🔗 Connectivity & Integration

The AELAB TG18-WS centrifuge is equipped with an integrated LCD or digital display for direct parameter setting and monitoring. User controls allow precise speed and time regulation to support standardized laboratory workflows.

🧪 Testing Applications

The AELAB TG18-WS benchtop high speed centrifuge is suitable for PCR preparation, biotechnology research, clinical diagnostics, biochemical analysis, and routine laboratory sample separation. It supports applications in medical laboratories, hospital testing facilities, life science research institutes, and quality control laboratories.

Compliance & Quality Assurance

The AELAB TG18-WS centrifuge is designed for routine laboratory operation with integrated safety protections, stable mechanical performance, and repeatable centrifugal accuracy. Stainless Steel construction and controlled motor operation support long-term reliability and laboratory quality assurance protocols.

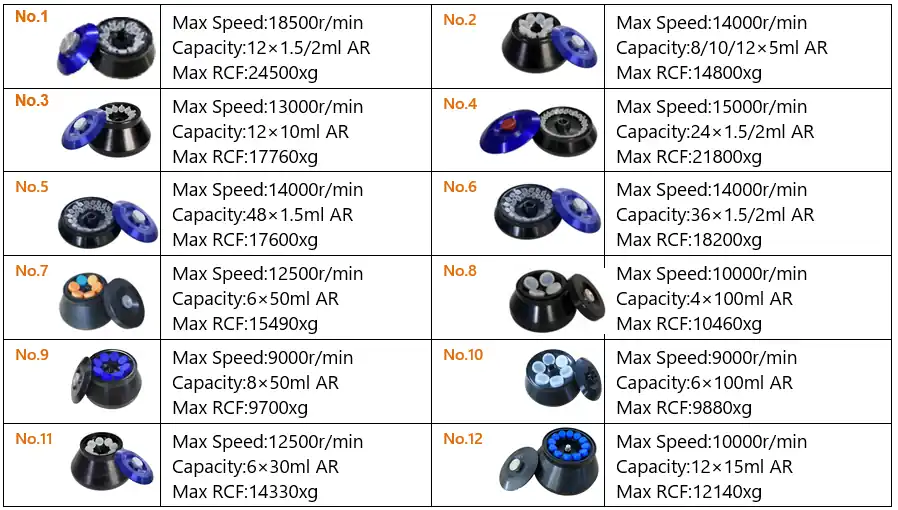

Rotor

Specifications
