Multifunctional Low-Temperature Tester SYD-510F1 | AELAB

Overview

Product Overview

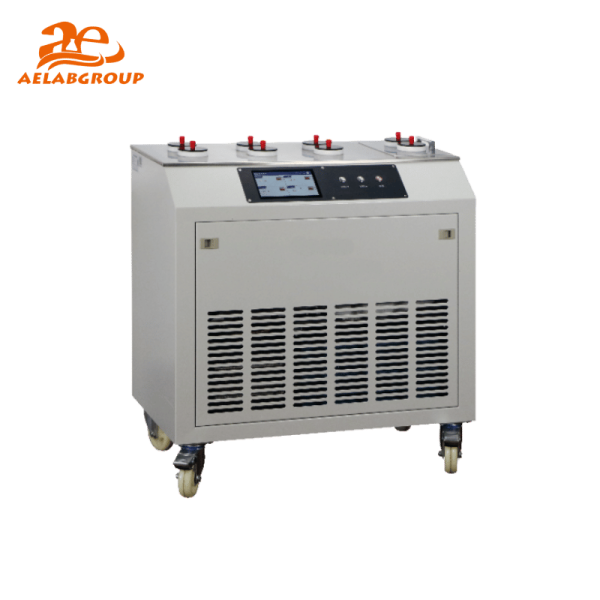

The AELAB SYD-510F1 is a Multifunctional Low-Temperature Tester designed for low-temperature testing of petroleum products. It is designed and made according to GB/T 510, GB/T 3535, GB/T 6986 and SH/T 0248.

The instrument is suitable for determining the pour point, cloud point, solidifying point and cold filter plugging point of petroleum products. The catalog also states that it can be used for testing according to ASTM D97 and ASTM D2500.

The SYD-510F1 uses an intelligent temperature-control system that displays the cold-bath temperature in real time and allows convenient temperature setting and control-parameter adjustment. Compressor refrigeration and a metal-bath design provide the required low-temperature conditions across four cold-bath chambers.

The four chambers provide different temperature conditions. Chamber I operates from -17℃ to 0℃ with ±0.5℃ accuracy, Chamber II provides fixed settings of 30℃ or -34℃, Chamber III operates from -51℃ to -34℃ with ±0.5℃ accuracy, and Chamber IV provides fixed settings of 30℃ or -70℃.

Key Features

• Four Low-Temperature Test Functions: Determines pour point, cloud point, solidifying point and cold filter plugging point of petroleum products.
• Intelligent Temperature Control: Displays cold-bath temperature in real time and supports convenient temperature setting and control-parameter adjustment.
• Metal Bath Design: Uses a metal bath for rapid refrigeration and uniform temperature conditions.
• Compressor Refrigeration: Provides refrigeration for the four cold-bath chambers, including a fixed -70℃ condition in Chamber IV.
• Automatic High-Temperature Protection: If an abnormal high temperature occurs in any cold bath, the instrument automatically cuts off power to the heating tube to help prevent instrument damage.
• Independent Chamber Conditions: Four chambers provide different operating temperature ranges or fixed temperature settings for different low-temperature tests.
• Floor-Model Construction: The instrument is designed as a floor-standing unit.
• Caster Wheels: Four wheels at the bottom allow the instrument to be moved more conveniently.

Applications

• Pour Point Determination: Low-temperature pour point testing of petroleum products.
• Cloud Point Determination: Cloud point testing of petroleum products.
• Solidifying Point Determination: Determination of the solidifying point of petroleum products.
• Cold Filter Plugging Point Determination: Low-temperature cold filter plugging point testing of petroleum products.
• ASTM D97 / ASTM D2500 Testing: The catalog identifies these ASTM methods as additional supported test methods.

Test Methods and Standards

• GB/T 510: Referenced by the catalog
• GB/T 3535: Referenced by the catalog
• GB/T 6986: Referenced by the catalog
• SH/T 0248: Referenced by the catalog
• ASTM D97: Referenced by the catalog
• ASTM D2500: Referenced by the catalog

Cold Bath Configuration

• Chamber I: -17℃～0℃, accuracy ±0.5℃; temperatures in the two cold baths are the same
• Chamber II: 30℃ or -34℃ fixed
• Chamber III: -51℃～-34℃, accuracy ±0.5℃; temperatures in the two cold baths are the same
• Chamber IV: 30℃ or -70℃ fixed

Product Information

• Brand: AELAB
• Manufacturer: AELAB GUANGZHOU CO., LTD.
• Product Type: Multifunctional Low-Temperature Tester
• Model: SYD-510F1
• Applicable Samples: Petroleum products
• Test Functions: Pour point, cloud point, solidifying point and cold filter plugging point
• Refrigerating Method: Compressor refrigeration
• Instrument Structure: Floor model with four-place wheels

FAQ

What is the SYD-510F1 used for?

It is used to determine the pour point, cloud point, solidifying point and cold filter plugging point of petroleum products.

Which standards are referenced for the SYD-510F1?

The catalog specifies GB/T 510, GB/T 3535, GB/T 6986 and SH/T 0248, and also states that the instrument can be used for testing according to ASTM D97 and ASTM D2500.

What is the temperature range of Chamber I?

Chamber I operates from -17℃ to 0℃ with ±0.5℃ accuracy. The catalog states that temperatures in its two cold baths are the same.

What temperature settings does Chamber II provide?

Chamber II provides fixed settings of 30℃ or -34℃.

What is the temperature range of Chamber III?

Chamber III operates from -51℃ to -34℃ with ±0.5℃ accuracy. The catalog states that temperatures in its two cold baths are the same.

How low can Chamber IV operate?

Chamber IV provides fixed settings of 30℃ or -70℃.

What refrigeration system does the instrument use?

The SYD-510F1 uses compressor refrigeration and a metal-bath design.

Does the SYD-510F1 include temperature protection?

Yes. If an abnormal high temperature occurs in any cold bath, the instrument automatically cuts off the working power of the heating tube.

Is the SYD-510F1 movable?

Yes. It is a floor-model instrument equipped with four wheels at the bottom.

Who manufactures the SYD-510F1?

The SYD-510F1 is supplied under the AELAB brand by AELAB GUANGZHOU CO., LTD.
