Automatic Softening Point Tester SYD-2806G | AELAB

Overview

Product Overview

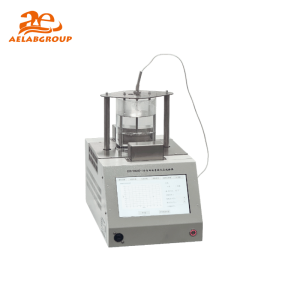

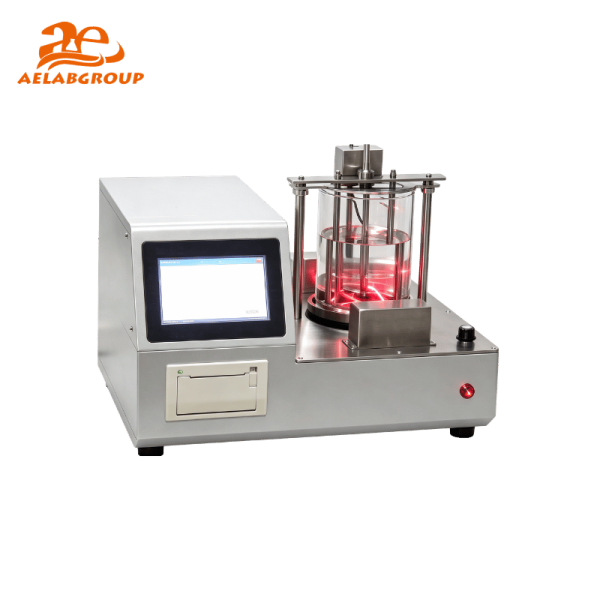

The AELAB SYD-2806G is an Automatic Softening Point Tester for determining the softening point of petroleum asphalt, coal pitch, liquid petroleum asphalt and various asphalts using the ring-and-ball method.

The instrument is designed and made according to GB/T4507 Standard Test Method for Softening Point of Petroleum Asphalt, T0606-2011 Asphalt Softening Point Test (Ring-and-Ball Apparatus) in JTG E20-2011 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering, and ASTM D36 Standard Test Method for Softening of Bitumen (Ring-and-Ball Apparatus).

The SYD-2806G uses a 32-bit ARM processor, color touch LCD screen and laser detection. The system automatically detects the softening point and can test two samples at the same time.

The measurement range is 5℃～80℃ for samples with a softening point ≦80℃ and 32℃～160℃ for samples with a softening point above 80℃. Temperature resolution is 0.1℃, while the heating rate is automatically adjusted to (5±0.5)℃/min after three minutes.

Key Features

• Automatic Softening Point Detection: Uses laser detection for automatic determination of the softening point.
• 32-Bit ARM Processor: Provides instrument control together with a color touch LCD interface.
• Two-Sample Testing: Two samples can be tested at the same time.
• Controlled Heating Rate: Heating rate is automatically adjusted to (5±0.5)℃/min after three minutes.
• Continuously Adjustable Stirring: Electromagnetic stirring speed can be continuously adjusted from 0～300 r/min.
• Bubble-Influence Filtering: The catalog specifies a detection algorithm designed to reduce the influence of air bubbles generated during heating on the test results.
• Touch LCD Result Display: Test results are shown on the touch LCD screen and can be printed.
• RS-232C Communication: Provides an RS-232C communication interface.

Applications

• Petroleum Asphalt: Ring-and-ball softening point determination.
• Coal Pitch: Softening point testing within the specified measurement range.
• Liquid Petroleum Asphalt: Softening point determination according to the applicable test method.
• Various Asphalts: Softening point evaluation of other asphalt materials covered by the catalog.
• Asphalt Manufacturing: The catalog identifies asphalt manufacturing companies as an intended application field.
• Highway and Bridge Construction: Suitable for asphalt testing associated with highway and bridge construction.
• Colleges, Universities and Scientific Research Institutes: The catalog also identifies educational and research institutions as intended users.

Test Methods and Standards

• GB/T4507: Standard Test Method for Softening Point of Petroleum Asphalt
• T0606-2011: Asphalt Softening Point Test (Ring-and-Ball Apparatus)
• JTG E20-2011: Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering
• ASTM D36: Standard Test Method for Softening of Bitumen (Ring-and-Ball Apparatus)

Product Information

• Brand: AELAB
• Manufacturer: AELAB GUANGZHOU CO., LTD.
• Product Type: Automatic Softening Point Tester
• Model: SYD-2806G
• Test Method: Ring-and-ball softening point determination
• Applicable Materials: Petroleum asphalt, coal pitch, liquid petroleum asphalt and various asphalts
• Temperature Resolution: 0.1℃
• Sample Capacity: Two samples at the same time

FAQ

What is the SYD-2806G used for?

It is used to determine the softening point of petroleum asphalt, coal pitch, liquid petroleum asphalt and various asphalts by the ring-and-ball method.

Which standards does the SYD-2806G support?

The catalog specifies GB/T4507, T0606-2011 in JTG E20-2011, and ASTM D36.

What is the measurement range?

The measurement range is 5℃～80℃ for softening points ≦80℃ and 32℃～160℃ for softening points above 80℃.

How many samples can be tested at the same time?

The SYD-2806G can test two samples at the same time.

What is the heating rate?

The heating rate is automatically adjusted to (5±0.5)℃/min after three minutes.

What is the stirring speed range?

The electromagnetic stirring speed can be continuously adjusted from 0～300 r/min.

How are test results displayed and recorded?

Test results are displayed on the touch LCD screen and can be printed. The instrument also provides an RS-232C communication interface.

Who manufactures the SYD-2806G?

The SYD-2806G is supplied under the AELAB brand by AELAB GUANGZHOU CO., LTD.

Specifications
