Overview

Product Overview

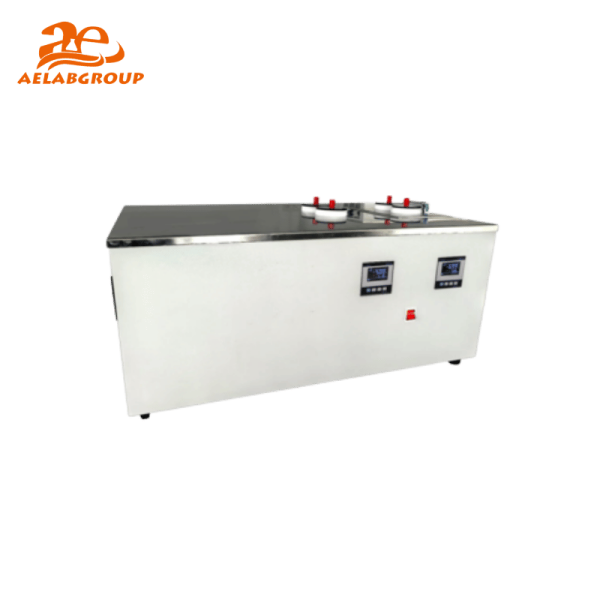

The AELAB SYD-510D is a Low Temperature Tester designed to determine the pour point and cloud point of petroleum oils.

The instrument is designed and made according to GB/T3535 Standard Test Method for Pour Point of Petroleum Oils and GB/T6986 Test Method for Cloud Point of Petroleum Oils.

The SYD-510D has two test chambers, Chamber I and Chamber II. Each chamber contains two cooling baths, and the two baths within the same chamber operate at the same temperature. All four cooling baths can be used for pour point and cloud point determination.

Chamber I operates from ambient temperature to -51℃, while Chamber II operates from ambient temperature to -70℃. Both chambers have a specified temperature control precision of ±1℃. Separate temperature controllers are provided for Chamber I and Chamber II.

Key Features

• Two-Chamber Design: The instrument has Chamber I and Chamber II, with two cooling baths in each chamber.
• Four Cooling Baths: All cooling baths can be used for pour point and cloud point determination.
• Separate Temperature Control: Temperature Controller I controls Chamber I, while Temperature Controller II controls Chamber II.
• Cooling to -70℃: Chamber II can reach a minimum specified temperature of -70℃.
• ±1℃ Temperature Control: Both chamber temperature ranges have a specified temperature control precision of ±1℃.
• No Coolant Required in the Chamber: The catalog states that coolant is not required in the chamber.
• Refrigeration Compressor: Uses a new type refrigeration compressor for low-temperature operation.
• Stainless-Steel Working Table: The working table is made of stainless steel.
• Benchtop Structure: Uses a compact bench structure designed for straightforward operation.

Applications

• Petroleum Oil Pour Point Testing: Determination of the pour point of petroleum oils according to GB/T3535.
• Petroleum Oil Cloud Point Testing: Determination of the cloud point of petroleum oils according to GB/T6986.

Test Methods and Standards

• GB/T3535: Standard Test Method for Pour Point of Petroleum Oils
• GB/T6986: Test Method for Cloud Point of Petroleum Oils

Product Information

• Brand: AELAB
• Manufacturer: AELAB GUANGZHOU CO., LTD.
• Product Type: Low Temperature Tester
• Model: SYD-510D
• Measured Properties: Pour point and cloud point
• Applicable Samples: Petroleum oils
• Test Chambers: Chamber I and Chamber II
• Cooling Baths: Two cooling baths per chamber
• Refrigeration System: New type refrigeration compressor

FAQ

What is the SYD-510D used for?

It is used to determine the pour point and cloud point of petroleum oils.

Which standards does the SYD-510D follow?

The instrument is designed according to GB/T3535 for pour point testing and GB/T6986 for cloud point testing of petroleum oils.

How many chambers and cooling baths does the SYD-510D have?

It has two chambers. Each chamber contains two cooling baths, giving four cooling baths in total.

What is the temperature range of Chamber I?

Chamber I operates from ambient temperature to -51℃ with ±1℃ temperature control.

What is the temperature range of Chamber II?

Chamber II operates from ambient temperature to -70℃ with ±1℃ temperature control.

Are the two chambers controlled separately?

Yes. Temperature Controller I controls Chamber I, and Temperature Controller II controls Chamber II.

Does the chamber require coolant?

No. The catalog states that coolant is not required in the chamber.

What refrigeration system does the SYD-510D use?

The specified refrigeration system is a new type refrigeration compressor.

Who manufactures the SYD-510D?

The SYD-510D is supplied under the AELAB brand by AELAB GUANGZHOU CO., LTD.
