Model :AE-HC/HSC Series

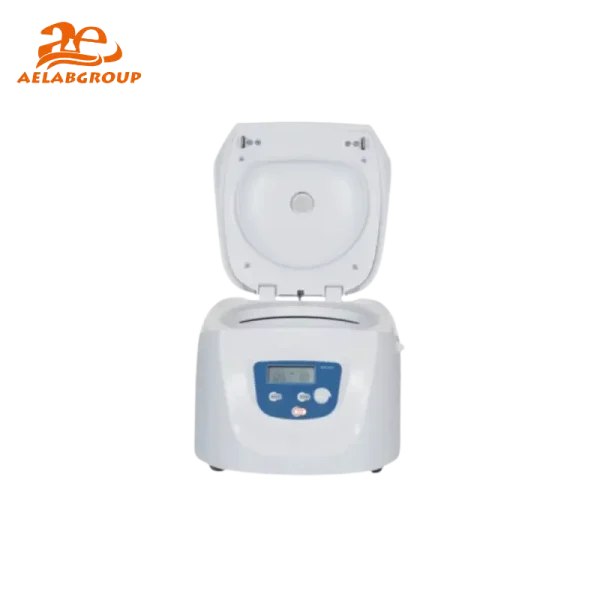

The AELAB AE-HC-12 hematocrit centrifuge stabilizes erythrocyte volume fraction measurements with up to 12,000 rpm and 13,680×g. A 24-capillary rotor, brushless DC moto, LCD interface, and door interlock enable accurate, reproducible results for clinical diagnostics and research. Precise speed/RCF switching and short-time run functions optimize hematology and photometric bilirubin workflows.
Need Help with This Product?
Hematocrit centrifuge with AC24P hematocrit rotor is used for determination of volume fractions of erythrocytes in blood for diagnostic purposes and doping tests. Also it is used for the photometric determination of bilirubin content in neonate blood samples.
Hematocrit centrifuge with A24-2P rotor, can be used for extraction of DNA and RNA.
The AELAB AE-HC-12 hematocrit centrifuge integrates a brushless DC moto for stable acceleration and long service life. The instrument employs an LCD display with separate control of speed and time. The AC24P hematocrit rotor accommodates 24 capillary tubes. A door interlock enhances operator safety. The compact frame measures 280×364×213mm and weighs 8.5Kg. Power input is single-phase 200V–240V, 50Hz/60Hz, 5A; 380W.
The AELAB AE-HC-12 regulates rotational speed from 500–12000rpm (100rpm increments) to achieve up to 13680×g for rapid separation of erythrocytes in capillary tubes. Users can select speed or RCF directly, set run time from 10 seconds to 99 minutes, or operate in continuous mode. The system’s acceleration/braking profile (40s↑40s↓) protects delicate samples and supports consistent hematocrit layer formation for photometric or volumetric analysis.
The catalog for AELAB AE-HC-12 lists on-instrument LCD control. External data ports, PC software, or printer interfaces are not specified.

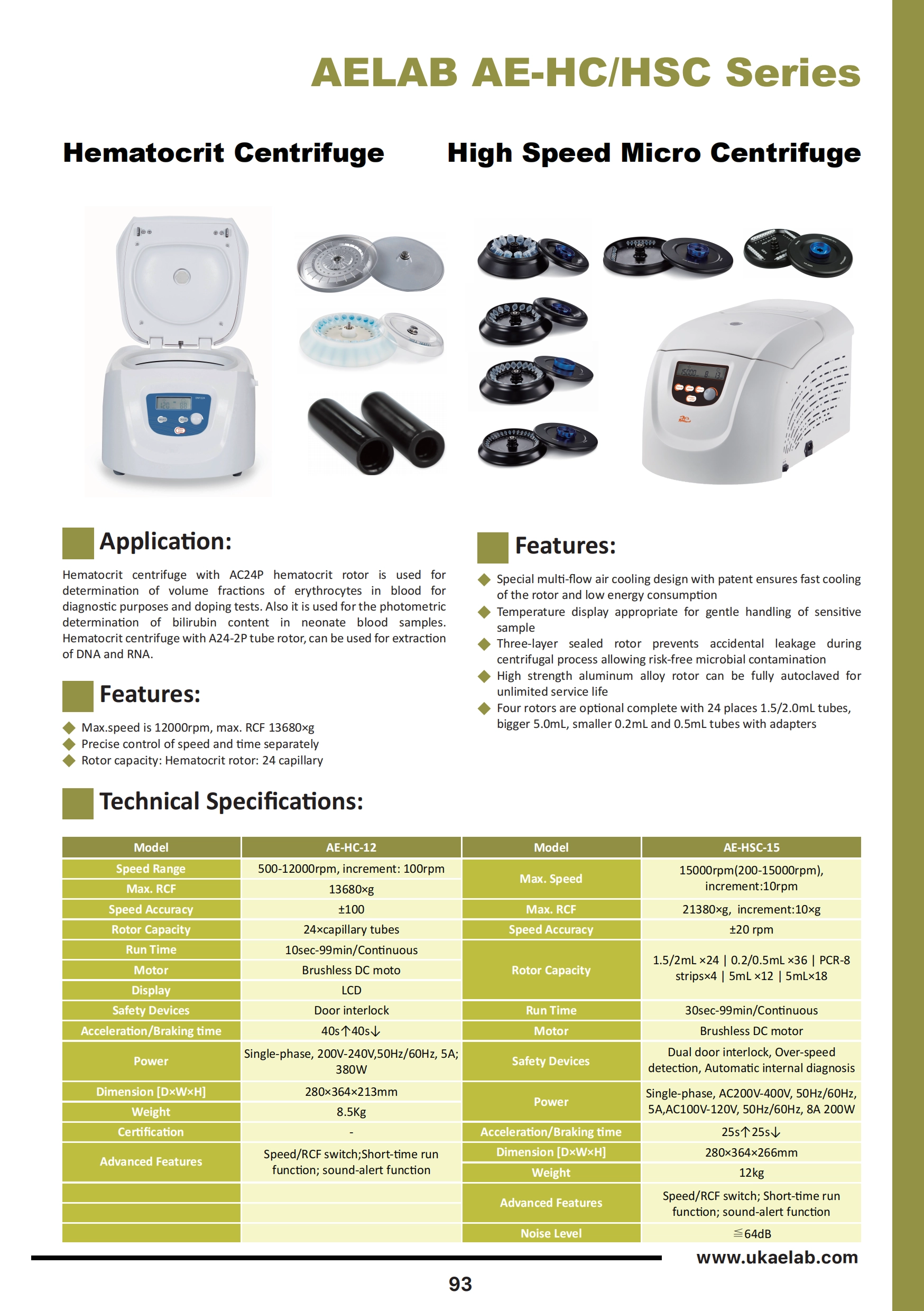

| Model | Speed / Range | Max. RCF | Rotor Capacity | Dimensions | Weight |
|---|---|---|---|---|---|
| AE-HC-12 | 500-12000rpm, increment: 100rpm | 13680×g | 24×capillary tubes | 280×364×213mm | 8.5Kg |
| AE-HSC-15 | 15000rpm(200-15000rpm), increment:10rpm | 21380×g | 1.5/2mL ×24 | 0.2/0.5mL ×36 | PCR-8 strips×4 | 5mL ×12 | 5mL×18 | 280×364×266mm | 12kg |
The AELAB AE-HC-12 supports hematology workflows including determination of erythrocyte volume fractions for diagnostic and doping tests, photometric bilirubin assessment in neonatal samples, and sample preparation tasks such as DNA and RNA extraction with the appropriate rotor.
AELAB manufactures the AE-HC-12 under strict quality control procedures suitable for laboratory use. Certification is not specified in the catalog. Users should verify local regulatory requirements before validation in clinical environments.
| Model | AE-HC-12 |
|---|---|
| Speed Range | 500-12000rpm, increment: 100rpm |
| Max. RCF | 13680×g |
| Speed Accuracy | ±100 |
| Rotor Capacity | 24×capillary tubes |
| Run Time | 10sec-99min/Continuous |
| Motor | Brushless DC moto |
| Display | LCD |
| Safety Devices | Door interlock |
| Acceleration/Braking time | 40s↑40s↓ |
| Power | Single-phase, 200V-240V,50Hz/60Hz, 5A; 380W |
| Dimension [D×W×H] | 280×364×213mm |
| Weight | 8.5Kg |
| Certification | - |
| Advanced Features | Speed/RCF switch; Short-time run function; sound-alert function |
| Model | AE-HSC-15 |
|---|---|
| Max. Speed | 15000rpm(200-15000rpm), increment:10rpm |
| Max. RCF | 21380×g, increment:10×g |
| Speed Accuracy | ±20 rpm |
| Rotor Capacity | 1.5/2mL ×24 | 0.2/0.5mL ×36 | PCR-8 strips×4 | 5mL ×12 | 5mL×18 |
| Run Time | 30sec-99min/Continuous |
| Motor | Brushless DC motor |
| Safety Devices | Dual door interlock, Over-speed detection, Automatic internal diagnosis |
| Power | Single-phase, AC200V-400V, 50Hz/60Hz, 5A,AC100V-120V, 50Hz/60Hz, 8A 200W |
| Acceleration/Braking time | 25s↑25s↓ |
| Dimension [D×W×H] | 280×364×266mm |
| Weight | 12kg |
| Advanced Features | Speed/RCF switch; Short-time run function; sound-alert function |
| Noise Level | ≤64dB |
