Model :TD6 , iTD6

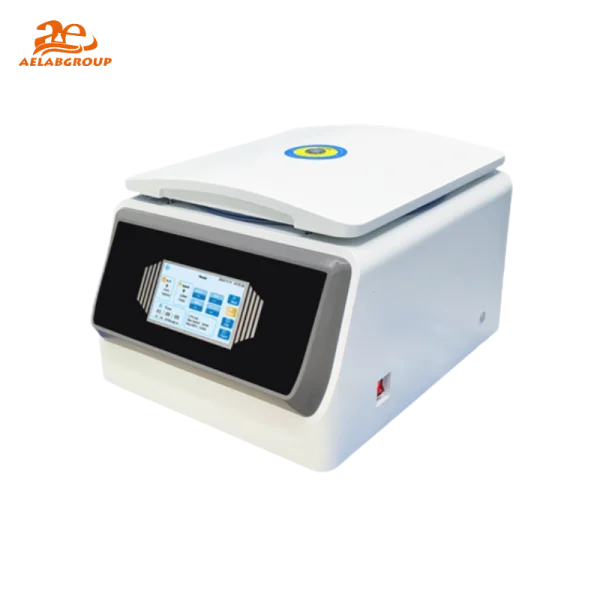

The AELAB TD6 / iTD6 Tabletop Low-Speed Large Capacity Centrifuge is designed for biological, clinical, and epidemic prevention laboratories requiring reliable separation of blood, plasma, and urine samples. This laboratory centrifuge integrates microprocessor control, stainless steel chamber construction, and multiple rotor configurations to ensure stable speed regulation, safety-interlocked operation, and reproducible centrifugal performance for routine diagnostic workflows.
Need Help with This Product?
The AELAB TD6 / iTD6 low-speed large capacity centrifuge performs stable centrifugal separation for biological, hospital, and epidemic prevention laboratories. This tabletop centrifuge is engineered to process blood, plasma, and urine samples using controlled rotational speed and safety-interlocked operation.
The AELAB TD6 / iTD6 laboratory centrifuge integrates a stainless steel chamber, full metal housing, and microprocessor regulation to ensure consistent centrifugal force, low operational noise, and extended duty cycles for routine clinical analysis.
The AELAB TD6 / iTD6 centrifuge features a Stainless Steel chamber enclosed in a full metal structural frame. The reinforced tabletop design stabilizes rotor motion at low speed, while integrated cooling fans regulate internal temperature during extended operation. Safety interlock mechanisms prevent lid opening during centrifugation.
The AELAB TD6 / iTD6 low-speed centrifuge separates samples by generating centrifugal force through controlled rotor rotation. Adjustable speed and time parameters allow laboratories to regulate relative centrifugal force for sedimentation of blood cells, plasma separation, and urine analysis under repeatable conditions.
The AELAB iTD6 centrifuge is equipped with USB connectivity for PC communication and data management. Digital and Touch LCD interfaces display speed, time, and RCF values clearly for GLP-aligned laboratory documentation.
| Model | Display Type | Maximum Output | Weight |
|---|---|---|---|
| TD6 | Digital | 6000 r/min | 52 kg |
| iTD6 | LCD / Touch LCD | 5600 × g | 52 kg |
The AELAB TD6 / iTD6 centrifuge is used for clinical diagnostics, biological research, hospital laboratories, epidemic prevention stations, pharmaceutical sample preparation, and routine laboratory centrifugation of blood, plasma, urine, and cell suspensions.
The AELAB TD6 / iTD6 low-speed centrifuge is manufactured under ISO-aligned quality systems with CE-compliant electrical safety design. Each unit supports laboratory quality control through calibrated speed accuracy, safety interlocks, and traceable operational parameters suitable for GLP laboratory environments.
| Model | TD6 | iTD6 |
|---|---|---|
| Display | Digital/LCD | Touch LCD |
| Max Speed | 6000 r/min 5600 × g | 6000 r/min 5600 × g |
| Speed Accuracy | ±10 r/min | |
| Time Range | 0~99 min 59 s | |
| Rotor No. | Rotor Capacity | Speed (r/min) / RCF (× g) |
| No.1 Angle Rotor | 12 × 10 / 15 mL | 6000 / 5600 |
| No.2 Swing Rotor | 32 × 10 / 15 mL | 4200 / 3120 |
| No.3 Swing Rotor | 48 × 10 / 15 mL | 4000 / 3020 |
| No.4 Swing Rotor | 72 × 2 / 5 mL | 4000 / 3020 |
| No.5 Swing Rotor | 108 × 2 / 5 mL | 4000 / 3040 |
| No.6 Swing Rotor | 4 × 250 mL | 5000 / 3300 |
| No.7 Swing Rotor | 8 × 50 mL | 4200 / 3120 |
| No.8 Swing Rotor | 4/8 × 100 mL | 4200 / 3120 |
| No.9 Swing Rotor | 4 × 500 mL | 4000 / 3580 |
| No.10 Well Plates Rotor | 2 × 2 × 96 holes | 4000 / 2300 |
| Timer Range | 0~99 min | |
| Noise | ≤60 dB(A) | |
| Power Supply | AC 220 V & 110V 50Hz 6A | |
| Dimension (L × W × H) | 602 × 502 × 412 mm | |
| Weight | 52 kg | |
Note: Rotors can be customized.
