Model :TD5A-WS

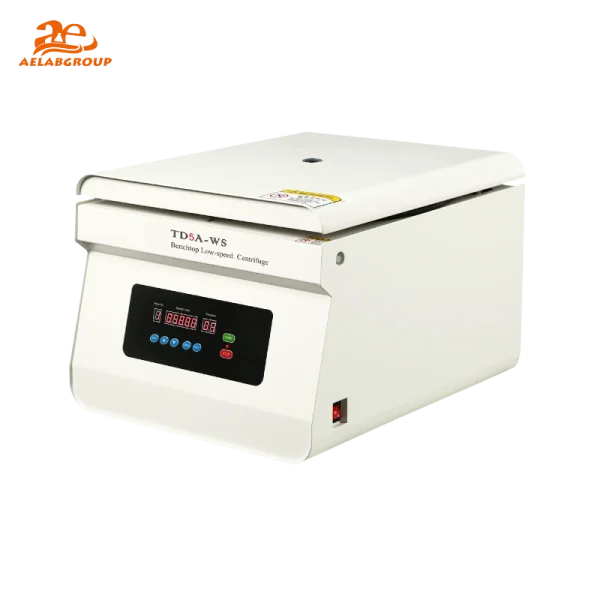

The AELAB TD5A-WS tabletop low-speed large capacity centrifuge performs controlled separation of blood, plasma, urine, and clinical samples in laboratories and hospitals. Designed for biological and epidemic prevention applications, the TD5A-WS centrifuge combines stainless steel chamber construction, precise speed regulation, and multiple rotor configurations to ensure stable, repeatable, and safe centrifugal processing.
Need Help with This Product?
The AELAB TD5A-WS tabletop low-speed large capacity centrifuge is engineered for biological, hospital, and epidemic prevention laboratories requiring reliable separation of blood, plasma, urine, and clinical samples. The TD5A-WS centrifuge integrates microprocessor control with a stainless steel chamber to ensure operational stability during extended laboratory workflows.
The AELAB TD5A-WS centrifuge supports multiple swing and angle rotors, enabling flexible processing of tubes, bottles, and well plates. With precise speed regulation and integrated safety systems, the TD5A-WS model delivers controlled centrifugal force for routine and high-volume clinical testing.
The AELAB TD5A-WS centrifuge features a Stainless Steel chamber and full metal structural design to enhance mechanical stability during operation. An integrated microprocessor regulates speed, time, and centrifugal force, while internal air cooling fans control temperature during long-duration centrifugation cycles.
The AELAB TD5A-WS tabletop centrifuge separates samples by applying controlled centrifugal force generated through rotor rotation. Adjustable speed and timing parameters regulate sedimentation of sample components based on density differences, ensuring consistent plasma, serum, and particulate separation.
The iTD5A-WS variant includes USB connectivity for PC communication, enabling data monitoring and operational control. Touch LCD operation allows direct parameter input and program recall for standardized laboratory workflows.
The AELAB TD5A-WS centrifuge is used for blood and plasma separation, urine sedimentation, biological sample preparation, pharmaceutical testing, food analysis, and epidemic prevention laboratories requiring large-capacity, low-speed centrifugal processing.
The AELAB TD5A-WS tabletop centrifuge is designed to meet laboratory safety and quality requirements with integrated imbalance protection, overspeed monitoring, and programmable operation. Each unit supports standardized laboratory operation and quality-controlled sample handling.
The AELAB TD5A-WS tabletop low-speed large capacity centrifuge delivers reliable centrifugal performance for clinical and laboratory environments, combining precision control, safety systems, and flexible rotor configurations to support routine and high-volume analytical workflows.
| Model | TD5A-WS | iTD5A-WS | |
|---|---|---|---|
| Display | Digital / LCD | Touch LCD | |
| Max Speed / RCF | 5500 r/min / 5220 ×g | ||
| Speed Accuracy | ±10 r/min | ||
| Timer Range | 0~99 min | ||
| Rotor Configuration | |||
| No.1 Angle Rotor | 10 / 12 × 15 ml | 5500 r/min / 5220 ×g | |
| No.2 Swing Rotor | 108 × 5 ml | 4000 r/min / 3040 ×g | |
| No.3 Swing Rotor | 4 × 250 ml | 4000 r/min / 3300 ×g | |
| No.4 Swing Rotor | 4 × 100 ml | 4200 r/min / 3120 ×g | |
| 8 × 100 ml | |||
| 32 × 10 / 15 ml | |||
| No.5 Swing Rotor | 48 × 5 ml | 4200 r/min / 3120 ×g | |
| 72 × 5 ml | |||
| 4 × 50 ml | |||
| No.6 Well Plates Rotor | 2 × 2 × 96 holes | 4000 r/min / 2300 ×g | |
| No.7 Swing Rotor | 4 × 500 ml | 4000 r/min / 3580 ×g | |
| Noise | ≤65 dB(A) | ||
| Power Supply | AC 220 V / 110 V, 50 Hz, 6 A | ||
| Dimensions (L × W × H) | 602 × 502 × 412 mm | ||
| Weight | 52 kg | ||
Note: Rotors can be customized.
