Model :FH1200(W) / FH1500(W) / FH1800(W)

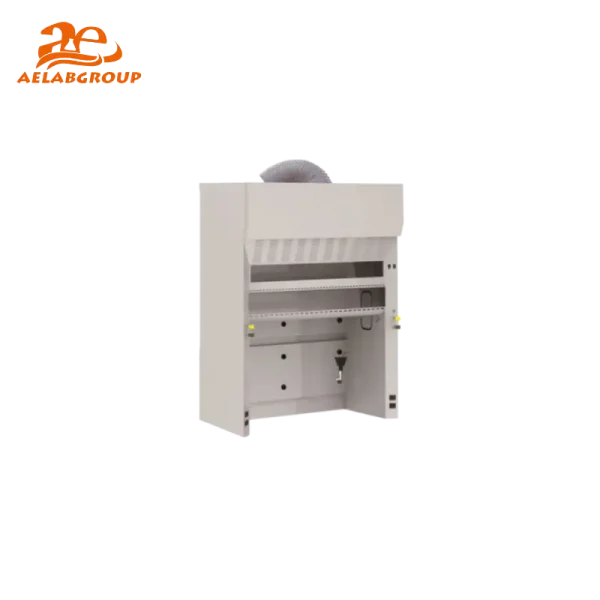

The AELAB Walk-in Fume Hood FH1200 Series provides high-volume exhaust ventilation and a large internal working chamber for safe handling of chemical processes. Designed for operators to walk into the hood when needed, it ensures stable inflow air velocity, reliable illumination, and robust construction suitable for large laboratory equipment.
Need Help with This Product?
The AELAB Walk-in Fume Hood FH1200 Series is designed for laboratories requiring a large internal working space and powerful exhaust ventilation. With a memory function to restore settings after power failure and the ability for operators to walk into the hood for operation, the system enhances workflow efficiency and safety. A large-room exhaust configuration supports the use of sizeable laboratory equipment and instrumentation.
This walk-in fume hood ensures stable containment performance using controlled inflow velocity, high-grade structural materials, and efficient illumination for safe, continuous laboratory operation.
The AELAB FH1200 Series walk-in fume hood is constructed with a 1.0mm cold-rolled steel exterior coated with bacteria-resistant powder for durability and contamination control. The interior chamber uses high-grade melamine board offering acid and alkali resistance. A manual toughened-glass front window allows safe viewing and access. The system includes an external blower, LED lamp, water tap, gas tap, PP cup sink, and remote-controlled water and gas valves.
The FH1200 Series stabilizes hazardous fumes by maintaining an inflow air velocity of 0.3–0.8m/s and evacuating exhaust through a high-volume blower system. Air passes from the operator opening through the internal chamber and out via a PVC exhaust duct. Illumination ≥800Lux supports safe chemical handling, while XYZ ≤4μm vibration control ensures stable operation for sensitive equipment.
The FH1200 Series includes four waterproof utility sockets (≤500W total load) for connecting laboratory devices inside the hood. The system integrates easily with building ventilation ducts using a 4-meter PVC exhaust line.
| Model | Key Specifications |
|---|---|
| FH1200(W) | 1150m3/h airflow, 1200*800*2200mm, 400W |
| FH1500(W) | 1500m3/h airflow, 1500*800*2200mm, 600W |
| FH1800(W) | 1850m3/h airflow, 1800*800*2200mm, 800W |
The AELAB FH1200 Series is suitable for chemical handling, reagent preparation, solvent ventilation, educational laboratory environments, industrial materials testing, pharmaceutical sample processing, and safe manipulation of hazardous fumes or vapors.
The walk-in fume hood is manufactured under AELAB quality protocols and conforms to international laboratory ventilation and safety standards. Toughened glass, controlled inflow velocity, and certified materials ensure robust laboratory protection and GLP-aligned performance.

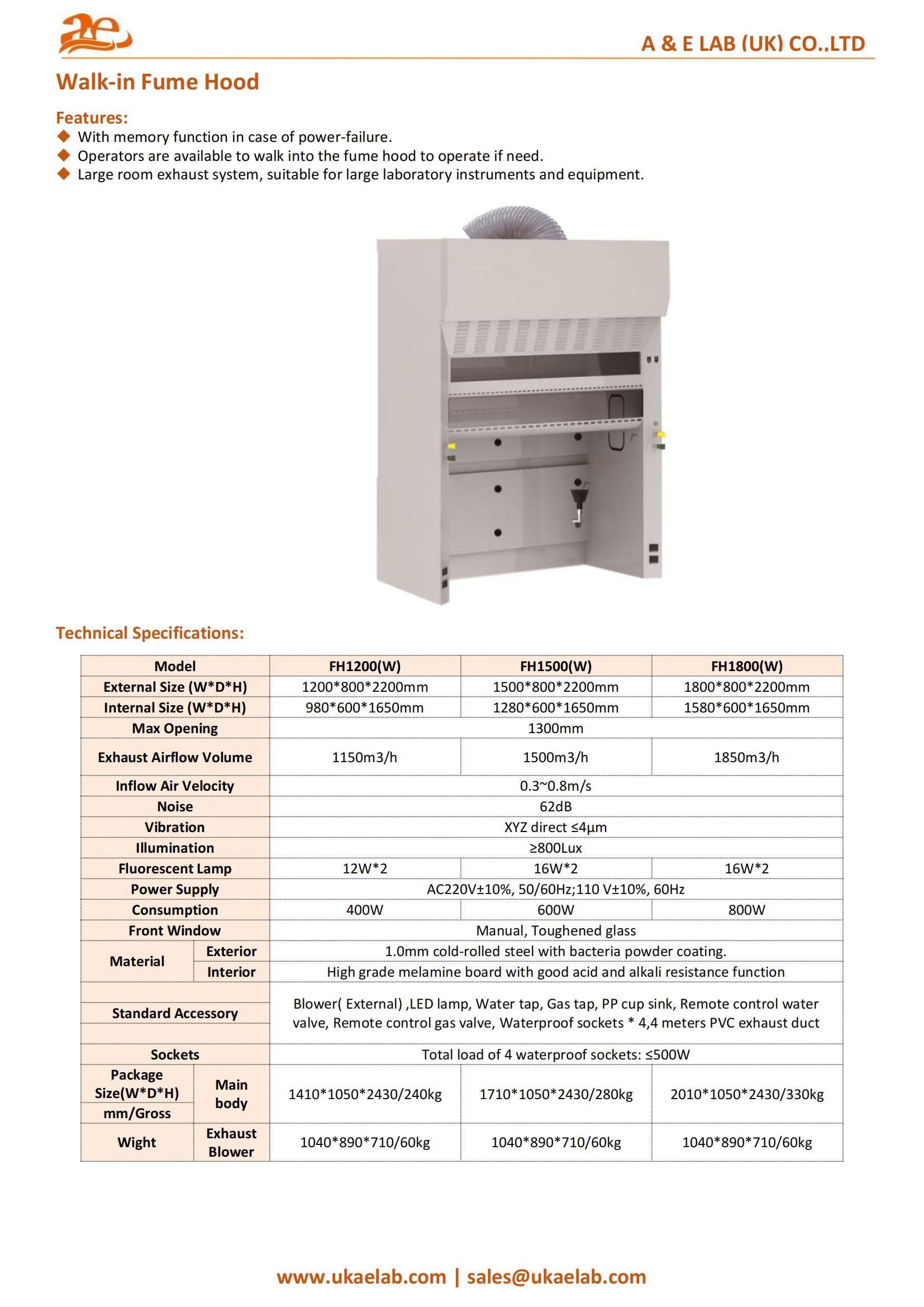

| Model | FH1200(W) | FH1500(W) | FH1800(W) |
|---|---|---|---|
| External Size (W*D*H) | 1200*800*2200mm | 1500*800*2200mm | 1800*800*2200mm |
| Internal Size (W*D*H) | 980*600*1650mm | 1280*600*1650mm | 1580*600*1650mm |
| Max Opening | 1300mm | 1300mm | 1300mm |
| Exhaust Airflow Volume | 1150m3/h | 1500m3/h | 1850m3/h |
| Inflow Air Velocity | 0.3~0.8m/s | 0.3~0.8m/s | 0.3~0.8m/s |
| Noise | 62dB | 62dB | 62dB |
| Vibration | XYZ direct ≤4μm | XYZ direct ≤4μm | XYZ direct ≤4μm |
| Illumination | ≥800Lux | ≥800Lux | ≥800Lux |
| Fluorescent Lamp | 12W*2 | 16W*2 | 16W*2 |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
| Consumption | 400W | 600W | 800W |
| Front Window | Manual, Toughened glass | Manual, Toughened glass | Manual, Toughened glass |
| Material — Exterior | 1.0mm cold-rolled steel with bacteria powder coating | 1.0mm cold-rolled steel with bacteria powder coating | 1.0mm cold-rolled steel with bacteria powder coating |
| Material — Interior | High grade melamine board with good acid and alkali resistance function | High grade melamine board with good acid and alkali resistance function | High grade melamine board with good acid and alkali resistance function |
| Standard Accessory | Blower (External), LED lamp, Water tap, Gas tap, PP cup sink, Remote control water valve, Remote control gas valve, Waterproof sockets * 4, 4 meters PVC exhaust duct | Blower (External), LED lamp, Water tap, Gas tap, PP cup sink, Remote control water valve, Remote control gas valve, Waterproof sockets * 4, 4 meters PVC exhaust duct | Blower (External), LED lamp, Water tap, Gas tap, PP cup sink, Remote control water valve, Remote control gas valve, Waterproof sockets * 4, 4 meters PVC exhaust duct |
| Sockets | Total load of 4 waterproof sockets: ≤500W | ||
| Package Size (W*D*H) mm/Gross Weight | 1410*1050*2430/240kg | 1710*1050*2430/280kg | 2010*1050*2430/330kg |
| Weight — Exhaust Blower | 1040*890*710/60kg | 1040*890*710/60kg | 1040*890*710/60kg |
