Model :FH(P) Series

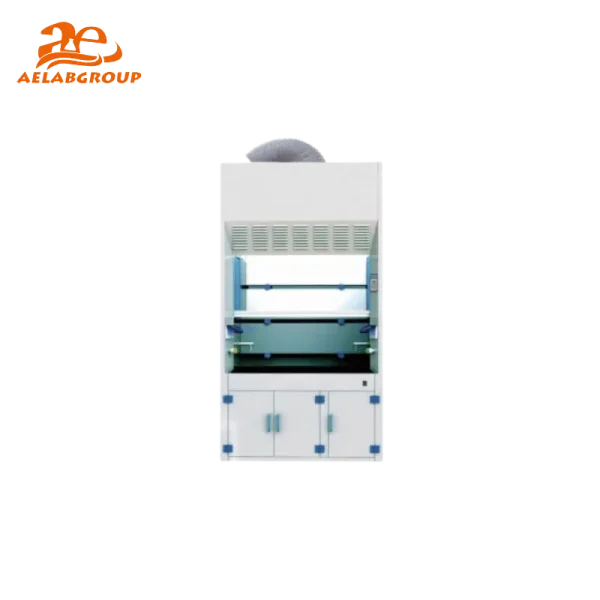

The AELAB FH1000(P) ducted fume hood provides stable chemical ventilation and operator protection for laboratory and industrial environments. Constructed from porcelain white PP and equipped with a microprocessor control system, LED lighting, and a manual height-adjustable toughened glass window, it ensures safe handling of corrosive, volatile, or hazardous substances.
Need Help with This Product?
The AELAB FH1000(P) ducted fume hood is designed for safe laboratory ventilation in air-conditioned workshops, chemical laboratories, universities, medical facilities, and industrial environments. It supports the operation of potentially dangerous, corrosive, or volatile chemicals while protecting both operators and samples.
The FH(P) Series incorporates microprocessor control, LED illumination, a memory function for power-failure recovery, and a PP structure resistant to acid, alkali, and corrosion. Its thick transparent toughened glass front window provides excellent visibility and a bright working environment.
The AELAB FH1000(P) features a durable porcelain white PP main body with 8 mm panel thickness for chemical resistance. The 5 mm toughened glass front window is height-adjustable for ergonomic operation. The integrated PP centrifugal blower ensures stable extraction, while the 12W*2 LED lighting enhances visibility. The work table uses chemical-resistant phenolic resin to support strong acid, alkali, and volatile handling workflows.
The FH1000(P) ducted fume hood removes hazardous fumes by generating a controlled 0.3–0.8 m/s air velocity across the work opening. Air is extracted through a PP centrifugal blower and directed through a 4.3-meter, φ250 mm exhaust duct for external discharge. The microprocessor system regulates airflow, while the front sash adjusts the operational aperture to maintain safe air containment.
The FH1000(P) includes waterproof sockets (2 units), internal LED lighting, motor control, and power interface. RVV power cabling is included for straightforward installation. Optional outer PP blowers and active carbon filters support customized ventilation setups.
| Model | Specifications |
|---|---|
| FH1000(P) | 1047*800*2450 mm external size; 787*560*700 mm internal size; 0.3–0.8 m/s airflow; ≤68 dB; PP centrifugal blower; 400 W; 137 kg main body weight |
The AELAB FH1000(P) ducted fume hood is suited for chemical synthesis, solvent evaporation, reagent preparation, acid/base handling, toxic gas operations, and sample digestion in analytical, industrial, pharmaceutical, and academic laboratories.
All AELAB FH(P) Series units follow strict ISO, CE, and GLP safety guidelines. Each hood is factory-tested for airflow stability, leakage resistance, electrical safety, and material integrity using AELAB quality assurance protocols.

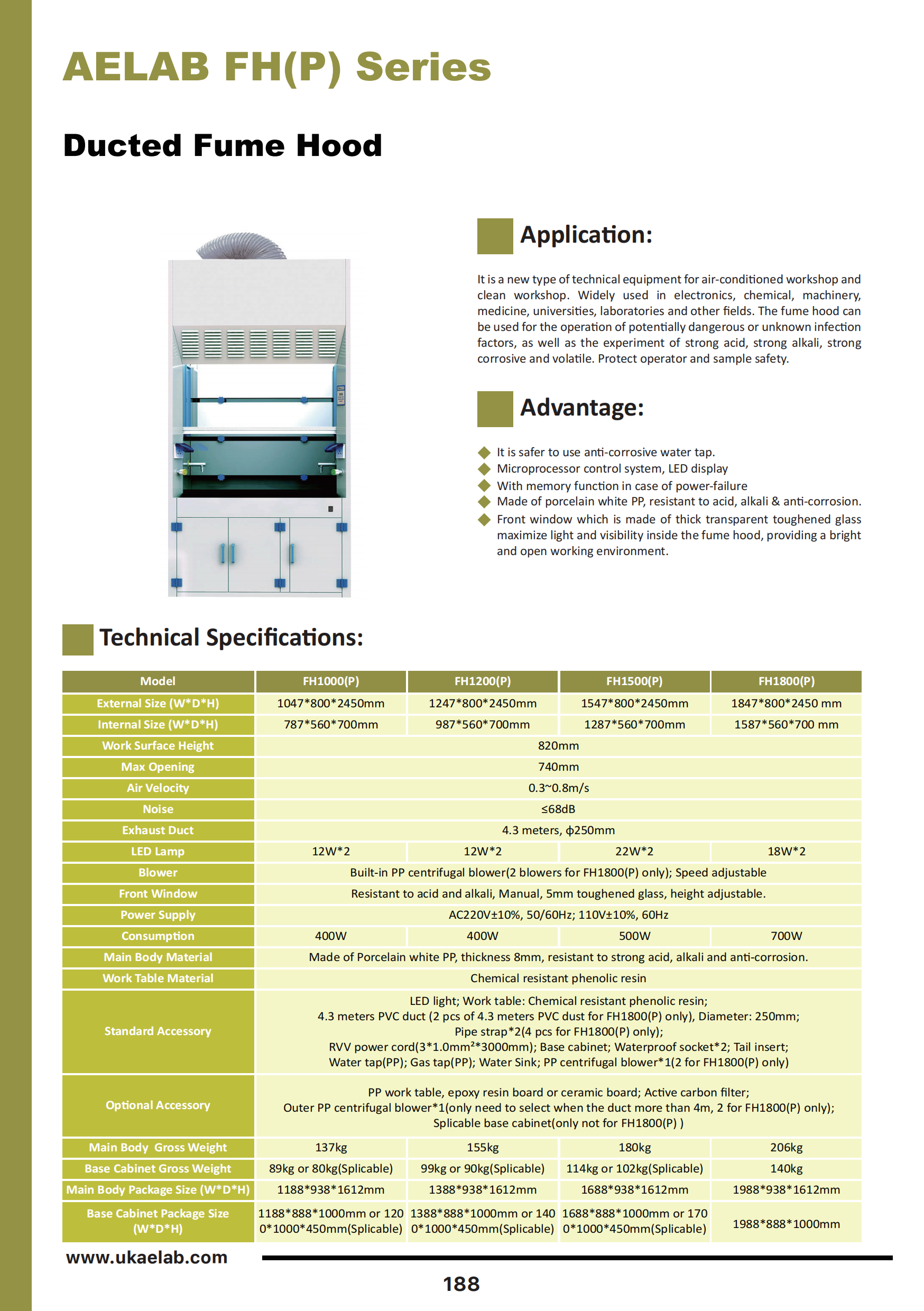

| Model | FH1000(P) |
|---|---|
| External Size (W*D*H) | 1047*800*2450mm |
| Internal Size (W*D*H) | 787*560*700mm |
| Work Surface Height | 820mm |
| Max Opening | 740mm |
| Air Velocity | 0.3~0.8m/s |
| Noise | ≤68dB |
| Exhaust Duct | 4.3 meters, φ250mm |
| LED Lamp | 12W*2 |
| Blower | Built-in PP centrifugal blower(2 blowers for FH1800(p) only); speed adjustable |
| Front Window | Resistant to acid and alkali; Manual; 5mm toughened glass; height adjustable |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
| Consumption | 400W |
| Main Body Material | Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion |
| Work Table Material | Chemical resistant phenolic resin |
| Standard Accessory |
LED light; Work table: Chemical resistant phenolic resin; 4.3 meters PVC duct (2 pcs of 4.3 meters PVC dust for FH1800(p) only) Diameter: 250mm; Pipe strap*2(4 pcs for FH1800(p) only); RVV power cord(3*1.0mm²*3000mm); Base cabinet; Waterproof socket*2; Tail insert; Water tap(PP); Gas tap(PP); Water sink; PP centrifugal blower*1(2 for FH1800(p) only) |
| Optional Accessory | PP work table; epoxy resin board or ceramic board; Active carbon filter; Outer PP centrifugal blower*1(only need to select when the duct more than 4m, 2 for FH1800(p) only) |
| Main Body Gross Weight | 137kg |
| Base Cabinet Gross Weight | 89kg or 80kg(splicable) |
| Main Body Package Size (W*D*H) | 1188*938*1612mm |
| Base Cabinet Package Size (W*D*H) | 1188*888*1000mm or 1200*1000*450mm(splicable) |
