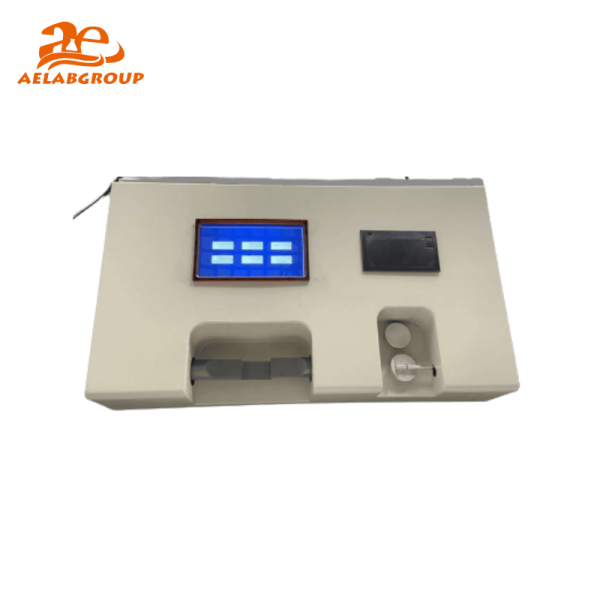

Model :YD-4
The Tablet Hardness Tester YD-4 accurately measures tablet crushing hardness with multiple test modes, including cumulative and program-controlled tests. It features a 7-inch touch screen, real-time data display, and calibration options, ensuring precise results.
Need Help with This Product?
The Tablet Hardness Tester YD-4 is designed to precisely measure the crushing hardness of tablets, ensuring quality control in pharmaceutical production. It features multiple testing modes, including single-piece tests, cumulative tests, and program-controlled group tests with up to 10 groups and 1-20 samples per group. The device offers versatility with a new soft capsule hardness test mode, allowing users to adjust the probe depth for more accurate testing. Equipped with a 7-inch touch screen and a 1024×600 color display, it provides clear visual data, including real-time results like average, maximum, and minimum values, along with variance and standard deviation. The embedded STM core processor and advanced A/D chip ensure fast, reliable data acquisition. The tester also allows for pre-test measurement of diameter, thickness, and weight, while the calibration function ensures accurate results.
Features:
Multiple Test Modes: Single-piece, cumulative, and program-controlled group tests (up to 10 groups, 1-20 pieces per group).
Soft Capsule Test Mode: Adjustable probe depth for testing soft capsules.
Measurement Units: N, Kgf, SC (hardness), mm, inch.
Pre-Test Measurements: Diameter, thickness, and weight can be measured before hardness testing.
High-Resolution Display: 7-inch touch screen with 1024×600 color graphic dot matrix for clear results.
Real-Time Data Display: Shows test speed, average, max/min values, variance, and standard deviation.
Advanced Processor: Embedded STM core processor and A/D module chip for fast, accurate data processing.
Verification & Calibration: Standard weight verification and easy calibration to eliminate errors.
Intuitive Interface: Real-time display of test characteristics and measurement curves.
User Management: Hierarchical management with password protection for administrator and general users.
Increased Work Efficiency: Automatic calculation of film ejection stroke and compression duty cycle.
| Hardness measurement range | 5N-200N (20Kg) and 5N-500N (50Kg) |
| Resolution | 0.01N |
| Accuracy | ±1%rdg±5dgt |
| Real-time display of load-over-time measurement characteristic curve | |
| Allowable measurement diameter | 2mm~40mm |
| Pressing speed adjustment range | 0.1mm/s~5mm/s |
| Speed adjustment resolution | 0.1mm/s |
| Accuracy | ±1% of setting accuracy |
