Model :Samplefill 400

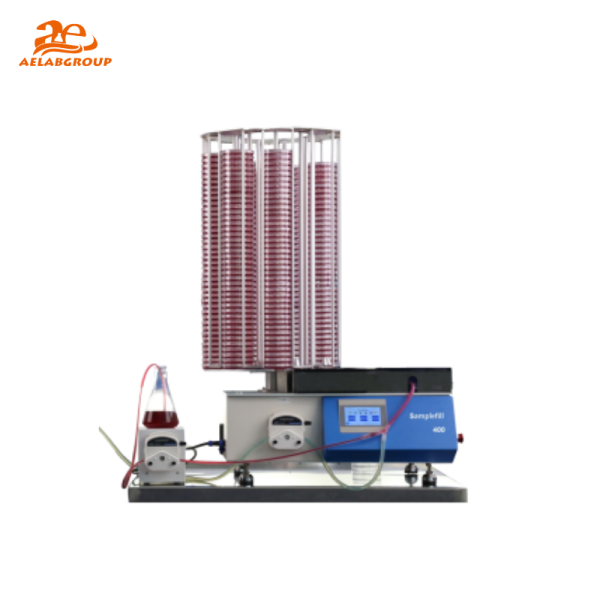

The Samplefill 400 Automatic Culture Medium Filling Machine is a high-precision Petri dish filling system for culture medium and agar plate preparation. It features a peristaltic pump, approximately 1% filling accuracy, built-in 254 nm UV disinfection, touch screen control, and a standard filling speed of up to 800 dishes per hour. Optional double pump, cooling, and printer modules are available.
Need Help with This Product?
The Samplefill 400 Automatic Culture Medium Filling Machine fills culture media into Petri dishes with high precision. It is ideal for microbiology labs, production facilities, research institutes, and quality control labs.
It uses a high-precision peristaltic pump. The pump supports 25# and 17# filling tubing. Flow rates reach 0.2–1120 mL/min for 25# tubing and 0.3–1780 mL/min for 17# tubing. Filling accuracy is approximately 1% at 20 mL. The system includes a simple calibration procedure.
The Samplefill 400 can fill up to 800 dishes per hour when using 20 mL into 90 mm dishes. Standard holders fit 90 mm dishes. Optional holders support 60 mm dishes. The loading plate and dish holder work together to ensure smooth operation.
The machine features a built-in 254 nm UV lamp for disinfection in the filling area. The lamp has 11 W power and a service life of 13,000 hours. The system reminds users when the lamp needs replacement.
The large touch screen allows users to set filling parameters, monitor operations, and adjust the process easily. The loading plate and dish holder are detachable for cleaning and disinfection. An arc spring plate design makes loading and unloading dishes faster.
Users can choose a double pump system for blood culture dish preparation. A semiconductor cooling module helps maintain medium temperature. A printer module prints production date, expiration date, and batch numbers.
With accurate filling, simple operation, UV disinfection, and optional modules, the Samplefill 400 provides reliable and efficient culture medium filling.
Features：
| Item | Specification |
|---|---|
| Product Name | Samplefill 400 Automatic Culture Medium Filling Machine |
| Filling Method | High-precision peristaltic pump |
| Filling Tubing | 25# or 17# |
| Flow Rate with 25# Tubing | 0.2–1120 mL/min |
| Flow Rate with 17# Tubing | 0.3–1780 mL/min |
| Filling Accuracy | Approx. 1% at 20 mL |
| Standard Filling Speed | Approx. 800 dishes/hour |
| Standard Dish Diameter | 90 mm |
| Optional Dish Holder | 60 mm |
| UV Lamp | 254 nm, 11 W |
| UV Lamp Service Life | Up to 13,000 hours |
| Dimensions | 720 × 640 × 1000 mm |
| Net Weight | 46 kg |
