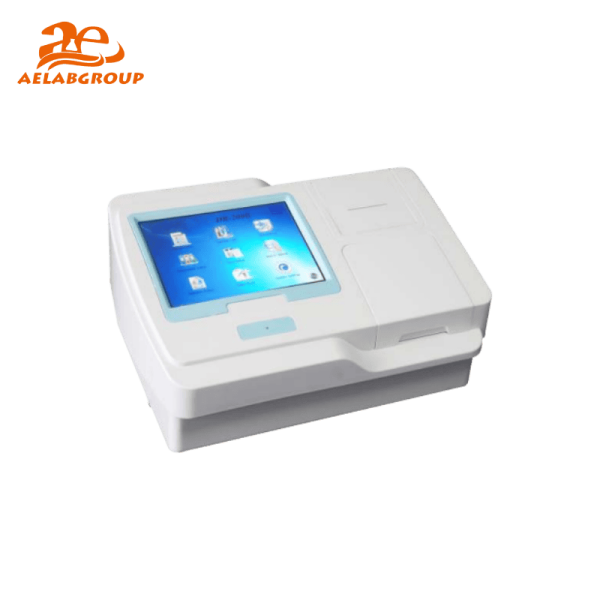

Model :DR-200B
The AELAB DR-200B Microplate Reader features a 10.4-inch touchscreen, built-in printer, and intelligent software for flexible plate layouts and advanced data evaluation. With auto calibration, multiple report formats, and storage for up to 20 million results, it is a reliable and user-friendly solution for ELISA and other microplate assays.
Need Help with This Product?
The AELAB DR-200B Microplate Reader is a high-performance instrument designed to deliver fast, accurate, and user-friendly results for ELISA and other microplate-based assays. Featuring a 10.4-inch color LED touchscreen display with 1024×600 resolution, it offers an intuitive interface for seamless navigation and data management. The system supports flexible plate layouts, allowing blanks, standards, samples, reference, and quality controls to be set up on a single screen, making it ideal for complex testing workflows.
Built-in intelligent software provides comprehensive qualitative and quantitative data analysis, including cut-offs, curve-fitting, and transformation formulas, ensuring precise evaluation. The DR-200B supports more than 20 report formats and comes with a built-in printer for immediate result documentation. With auto lamp adjustment, auto calibration, and robust storage capacity for up to 20 million test results and 500 test projects, it ensures long-term reliability and efficiency.
For greater convenience, the instrument connects easily to a PC and supports both keyboard and mouse through USB interfaces, enhancing flexibility in operation. Combining advanced technology with powerful data management, the AELAB DR-200B is an excellent solution for laboratories requiring accuracy, efficiency, and versatility in microplate analysis.
Features:
| Category | Details |
| Microplate types | 96/48 - well plate |
| Photodetector | Silicon Photodiode |
| Light source | 8v/50w Controlled tungsten halogen lamp OR LED light |
| Wavelength range | 400nm - 800nm |
| Standard filters | 405, 450, 492, 630nm & 4 optional |
| Reading range | 0.000 - 4.000A |
| Resolution | 0.001A |
| Accuracy | ±0.008A |
| Reproducibility | ≤0.2% |
| Stability | ±0.003A |
| Reading Speed | Single Wavelength≤3s ; Double Wavelengths≤6s |
| Shaking | Linear Shaking, 3 speeds |
| Printer | Built - in Thermal Printer, optional external printer |
| Interface connections | DVI, VGA, NETWORK INTERFACE, USB, AUDIO INTERFACE, RS - 232 |
| Power supply | 100 - 240V, 50 - 60Hz |
| Dimensions | 460(L)×350(W)×197(H)mm |
| Net weight | 8 kg |
