Model :SGW-756~SGW-753

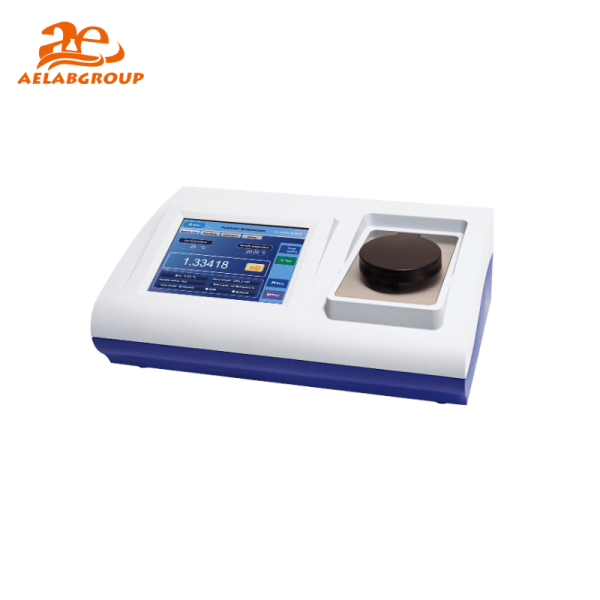

The AELAB SGW-756 and SGW-753 refractometers deliver precise refractive index (nD: 1.30000–1.70000) and Brix (0–100%) measurements with high-resolution CCD detection and built-in Peltier temperature control (5–85 °C, ±0.02 °C). An 8-inch color touch screen and Windows OS support.
Need Help with This Product?
The AELAB SGW-756 and SGW-753 refractometers deliver precise refractive index (nD: 1.30000–1.70000) and Brix (0–100%) measurements with high-resolution CCD detection and built-in Peltier temperature control (5–85 °C, ±0.02 °C). An 8-inch color touch screen and Windows OS support.
| Parameters/Model | SGW-756 | SGW-753 |
|---|---|---|
| Data storage | 16G | 10000 sets |
| Interface | USB, Keyboard, Mouse, Ethernet, Universal Printer, Optional: WLAN | USB, U Disk |
What is the measuring range of these refractometers?
Both models measure refractive index (nD) from 1.30000 to 1.70000 and Brix from 0 to 100%.
What are the key differences between the SGW-756 and SGW-753?
The SGW-756 offers 16G data storage and extensive interfaces (USB, Keyboard, Mouse, Ethernet, Universal Printer, optional WLAN), while the SGW-753 supports 10000 data sets and USB/U Disk connectivity.
How is temperature controlled?
Temperature is controlled via a built-in Peltier system with a range of 5 to 85 °C and an accuracy of ±0.02 °C.
What types of samples can be measured?
The instruments support multiple predefined methods including fragrance refractive index, vegetable oil quality, fructose/glucose/sucrose concentrations, solid content of juices and soft drinks, honey water content, and user-defined formulas.
What kind of prism is used and how durable is it?
The prism is made of artificial sapphire, which is highly resistant to corrosion and scratches, easy to clean, and ensures long-term durability.
Can the refractometer be connected to a network or printer?
Yes, the SGW-756 provides Ethernet, USB, and a universal printer port, with optional WLAN. The SGW-753 supports USB and U Disk for data export.
| Parameters/Model | SGW-756 | SGW-753 |
|---|---|---|
| Measuring range | Refractive index (nD): 1.30000-1.70000; Brix: 0-100% | |
| Measuring accuracy | Refractive index (nD): ±0.0002; Brix: ±0.1% | |
| Resolution | Refractive index (nD): ±0.00001; Brix: ±0.01% | |
| Audit Trail | Optional | |
| Temp. control mode | Peltier (Built-in) | |
| Temp. display range | 0-100°C | |
| Temp. control range | 5-85°C | |
| Temp. control accuracy | ±0.02°C | |
| Prism | Artificial sapphire | |
| Operating system | Windows | |
| Display | 8 inch color touch screen | |
| Data storage | 16G | 10000 sets |
| Interface | USB, Keyboard, Mouse, Ethernet, Universal Printer, Optional: WLAN | USB, U Disk |
| Power supply | 100V~240V, 50/60Hz, 150W | |
| Overall dimensions | 570mm×460mm×300mm | |
| Weight(gross) | 5kg | |
