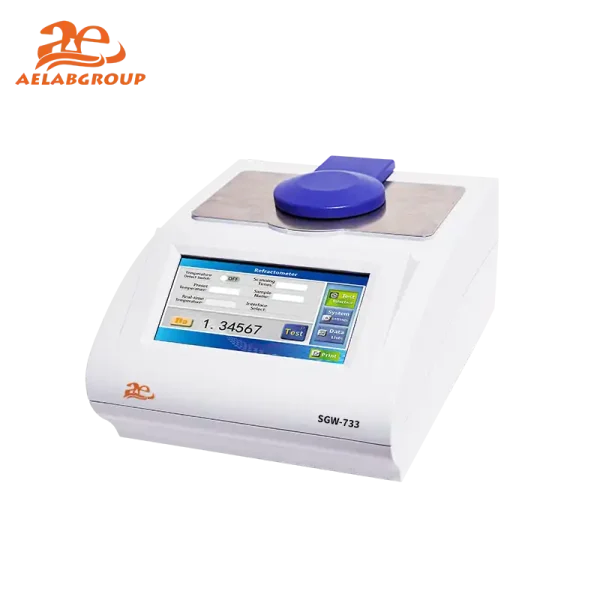

Automatic Digital Refractometer SGW-733 / SGW-731

Overview

Product Overview

The AELAB SGW-733 and SGW-731 are Automatic Digital Refractometers designed for automatic measurement of refractive index and Brix. Both models provide a refractive index (nD) measuring range of 1.30000–1.70000 and a Brix range of 0–100%.

The instruments use a high-resolution CCD detection system for fully automatic measurement and provide refractive index accuracy of ±0.0002 with ±0.00001 resolution. Brix measurement accuracy is ±0.1% with ±0.01% resolution.

Both models use a 7 inch color touch screen, hard glass prism, 1000-set data storage and RS232, USB and U Disk interfaces. SGW-733 additionally provides built-in Peltier temperature control, with a temperature display range of 0–90℃, control range of 10–60℃ and control accuracy of ±0.1℃.

Key Features

• Automatic High-Resolution Measurement: Fully automatic measurement using a high-resolution CCD detection system.
• Automatic Temperature Correction: The catalog lists a temperature correction function intended to reduce manual measurement error.
• Temperature Display and Data Saving: Temperature display, automatic correction and data-saving functions are identified in the catalog; the specification table assigns a defined temperature display range specifically to SGW-733.
• Long-Life LED Light Source: LED light source with a catalog-specified service life of over 100000 hours.
• Multiple Measuring Methods: Supports F42 fructose corn syrup, F55 fructose corn syrup concentration, glucose concentration, sucrose concentration, solid content, honey water content, nD20 and user-defined formulas.
• Touch-Screen Operation: Both models use a 7 inch color touch screen.
• Data Storage: Both SGW-733 and SGW-731 store 1000 sets.
• Multiple Interfaces: RS232, USB and U Disk interfaces are provided on both models.

Applications

• Refractive Index Measurement: Measurement of refractive index (nD) from 1.30000–1.70000.
• Brix Measurement: Measurement from 0–100% Brix.
• Fructose Corn Syrup: F42 fructose corn syrup and F55 fructose corn syrup concentration measurement.
• Glucose Concentration: Catalog-listed glucose concentration measurement.
• Sucrose Concentration: Catalog-listed sucrose concentration measurement.
• Solid Content: Measurement modes are listed for juice vegetables, canned products and soft drinks.
• Honey Water Content: Dedicated catalog-listed honey water content measurement.
• nD20 and Custom Measurement: Supports nD20 and user-defined formula measurement modes.

Available Models and Comparison

SGW-733 Peltier Temperature Control

SGW-733 is the temperature-controlled model in the series. The catalog specifies a built-in Peltier temperature control system with a 10–60℃ control range and ±0.1℃ temperature control accuracy. Its temperature display range is 0–90℃.

The catalog specifically highlights temperature control, automatic temperature correction and data saving for SGW-733. SGW-731 is not assigned a built-in Peltier temperature control mode in the specification table.

Measurement Methods

• F42 fructose corn syrup
• F55 fructose corn syrup concentration
• Glucose concentration
• Sucrose concentration
• Solid content (juice vegetables, canned products, soft drinks)
• Honey water content
• nD20
• User-defined formula

Product Information

• Brand: AELAB
• Manufacturer: AELAB GUANGZHOU CO., LTD.
• Product Type: Automatic Digital Refractometer
• Models: SGW-733 and SGW-731
• Detection System: High-resolution CCD detection system
• Measuring Parameters: Refractive index (nD) and Brix
• Refractive Index Range: 1.30000–1.70000
• Brix Range: 0–100%

FAQ

Which models are included in this Automatic Digital Refractometer series?

The supplied catalog lists two models: SGW-733 and SGW-731.

What are the refractive index and Brix measuring ranges?

Both models measure refractive index (nD) from 1.30000–1.70000 and Brix from 0–100%.

What are the measurement accuracy and resolution?

Both models specify refractive index accuracy of ±0.0002 and resolution of ±0.00001. Brix accuracy is ±0.1% and Brix resolution is ±0.01%.

Do both SGW-733 and SGW-731 have built-in Peltier temperature control?

No. The catalog specifies Peltier (Built-in) temperature control only for SGW-733. SGW-731 is marked with “/” for temperature control mode, display range, control range and control accuracy.

What temperature control does SGW-733 provide?

SGW-733 provides a 0–90℃ temperature display range, 10–60℃ temperature control range and ±0.1℃ temperature control accuracy.

How much measurement data can be stored?

Both models provide storage for 1000 sets of data.

Which communication interfaces are available?

Both SGW-733 and SGW-731 provide RS232, USB and U Disk interfaces.

What measurement methods are available?

The catalog lists F42 fructose corn syrup, F55 fructose corn syrup concentration, glucose concentration, sucrose concentration, solid content, honey water content, nD20 and user-defined formula methods.

What type of prism is used?

Both models use a hard glass prism.

What is the specified LED light-source life?

The catalog states a service life of over 100000 hours for the LED light source.

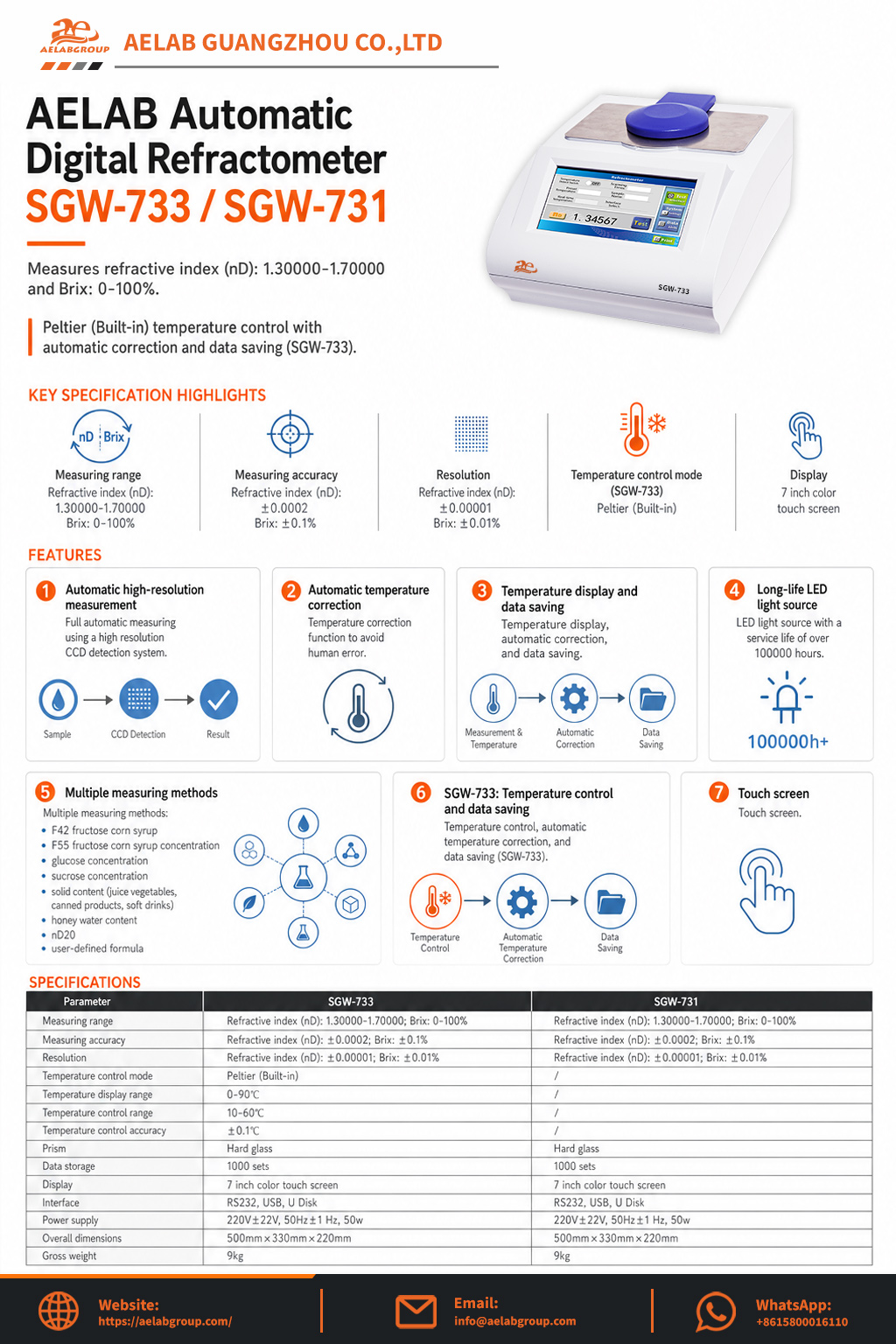

Specifications
