Model :AE-subMINI

The AELAB AE-subMINI horizontal electrophoresis apparatus separates DNA, RNA and proteins by gel electrophoresis. It has a 70 x 100 mm gel tray, a 260 ml buffer chamber, adjustable electrodes and a transparent construction for monitoring the gel, in a compact 1 kg unit for research, teaching and clinical labs.

Overview

The AELAB AE-subMINI is a compact horizontal electrophoresis apparatus for separating nucleic acids and proteins by gel electrophoresis. It combines a 70 x 100 mm gel tray, a 260 ml buffer chamber, adjustable electrodes and a transparent construction that lets you watch the gel during the run.

A horizontal gel tray sits in the buffer chamber, which is filled with electrophoresis buffer. Electrodes at each end apply an electric field, so charged molecules migrate through the gel and separate by size and charge. The apparatus suits DNA and RNA analysis as well as protein separation.

Features

  • Even sample loading: a precisely engineered gel tray gives uniform sample distribution and consistent separation.
  • Adjustable electrode positions: adjustable electrodes allow customization of the electric field strength and direction, which supports separation efficiency.
  • Clear viewing window: the transparent design gives clear visibility of the gel during the run for easy monitoring.
  • Durable construction: made from high-quality materials for long-term use under frequent handling and chemical exposure.

How It Works

The AE-subMINI applies an electric field across a horizontal gel tray that holds samples of nucleic acids or proteins. Charged molecules migrate through the gel matrix and separate into distinct bands. Adjustable electrodes optimize field strength and direction, while the clear cover allows real-time monitoring throughout the run.

Advantages

  • Precise and uniform sample loading supports reproducible results.
  • Adjustable electrodes add flexibility to experimental setups.
  • The transparent cover enables easy observation without disturbing samples.
  • The compact, lightweight design (266 x 115 x 113 mm, 1 kg) simplifies handling and storage.
  • Durable materials resist chemical damage for long-term use.

Which Laboratories Use It

The AE-subMINI is suited to educational labs, small research facilities and routine clinical diagnostics. For higher-throughput research centers or advanced QC departments, AELAB also offers larger horizontal electrophoresis tanks such as AE-subMIDI and AE-subMAX.

Ideal For

  • DNA and RNA fragment separation
  • Protein electrophoresis
  • Molecular biology research
  • Educational and training laboratories
  • Clinical and diagnostic labs

Product Photos

AELAB AE-subMINI horizontal electrophoresis apparatus with transparent tray, model label, black cable connector and red electrode leads in a plastic bag
The AE-subMINI seen from the side: the transparent tray and tank carry the model label with serial number, and the black cable connector and red electrode leads are packed in a plastic bag beside it.
Open carton with the AE-subMINI horizontal electrophoresis system user manual packed on top
The open carton shows the AE-subMINI user manual placed on top of the packed instrument, so the manual is the first item found when unpacking.
Closed shipping carton for the AELAB AE-subMINI horizontal electrophoresis apparatus with model and serial number label
The closed shipping carton has a white label with the supply model, order model and serial number for identification on receipt.

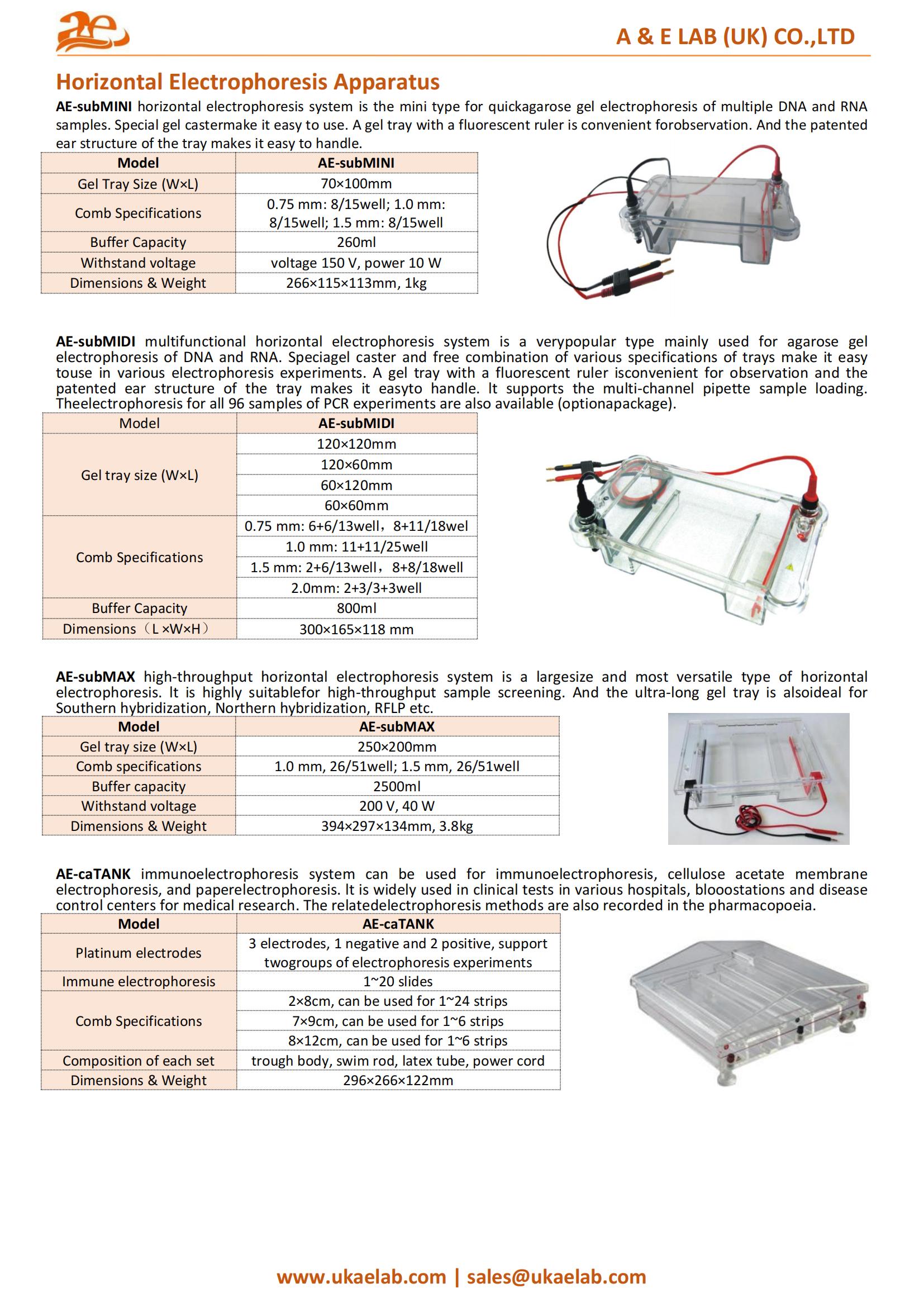

Specifications

ModelAE-subMINI
Gel Tray Size (W×L)70×100mm
Comb Specifications0.75 mm: 8/15well; 1.0 mm: 8/15well; 1.5 mm: 8/15well
Buffer Capacity260ml
Withstand voltagevoltage 150 V, power 10 W
Dimensions & Weight266×115×113mm, 1kg

Request Quote: Horizontal Electrophoresis Apparatus AE-subMINI – Precise DNA & Protein Separation

Frequently Asked Questions

1What is the AE-subMINI horizontal electrophoresis apparatus used for?
It separates DNA and RNA fragments and proteins by gel electrophoresis in molecular biology research, teaching, and clinical and diagnostic laboratories.
2What is the gel tray size?
The gel tray measures 70 x 100 mm (W x L).
3Which combs are available?
Combs of 0.75 mm, 1.0 mm and 1.5 mm thickness are listed, each with 8 or 15 wells.
4How much buffer does it hold?
The buffer capacity is 260 ml.
5What electrical limits apply?
The apparatus withstands 150 V and 10 W, so it should be run from a power supply operated within these limits.
6What are its size and weight?
The dimensions are 266 x 115 x 113 mm and the weight is 1 kg.
