Model :BG-POWER300,BG-POWER600,BG-POWER600i,BG-POWER600K,BG-Power600h,BG-Power3500,BG-Power500HC

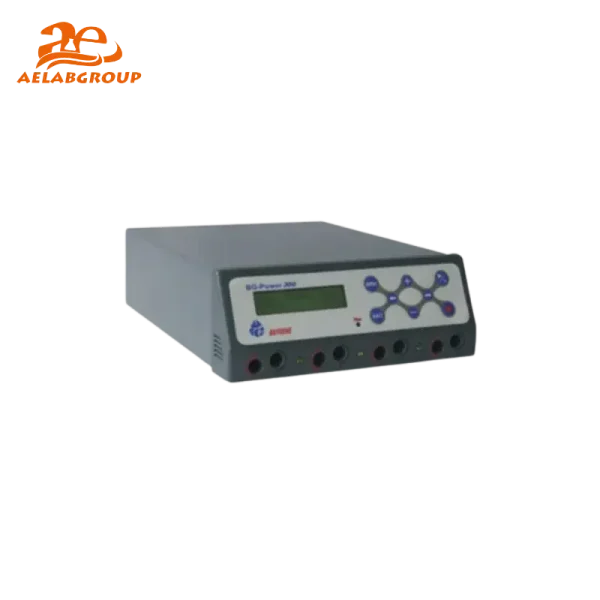

The AELAB BG-POWER300 Series Electrophoresis Power Supply offers precise and stable voltage control to ensure consistent gel electrophoresis results. Compact and user-friendly, it supports various electrophoresis systems, making it ideal for research and quality control labs demanding technical excellence.
Need Help with This Product?

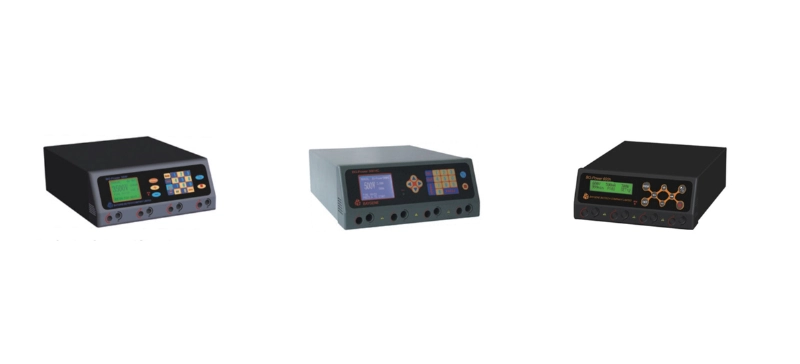

The Electrophoresis Power Supply provides precise and consistent voltage for gel electrophoresis, ensuring reliable separation of biomolecules. It’s compact, user-friendly, and compatible with various electrophoresis systems.
The BG-POWER300 Series regulates electrical current and voltage with high precision to facilitate biomolecule migration through gel matrices during electrophoresis. The microcomputer-controlled switching power supply enables consistent output in constant voltage, current, or power modes. The programmable timer and pause/resume features allow flexible operation, while advanced safety monitoring prevents operational hazards such as overloads and arc faults, ensuring smooth and reliable gel separation.
Precision Control: Delivers stable voltage/current for reproducible electrophoresis results.
Versatility: Compatible with diverse electrophoresis setups, from educational labs to advanced research.
User-Friendly: Intuitive LCD interface with programmable functions and stored protocols.
Safety Features: Comprehensive protection against electrical faults and automatic recovery after outages.
Compact & Durable: Space-saving design with robust construction for long-term use in demanding lab environments.
BG-POWER300: Ideal for standard gel electrophoresis in teaching labs and routine research.
BG-POWER600 & BG-POWER600i: Suitable for mid-scale research requiring higher voltage and programming flexibility.
BG-POWER600K & BG-POWER600h: For high current applications in clinical and industrial QC labs.
BG-POWER3500: High-voltage model for specialized electrophoresis and advanced research applications.
BG-POWER500HC: High current capacity for large-scale biomolecule separations and commercial labs.
Molecular biology and biochemistry labs
Genetic and proteomics research
Clinical diagnostic labs
Quality control and industrial testing
Educational institutions and teaching laboratories
Food and pharmaceutical analysis labs

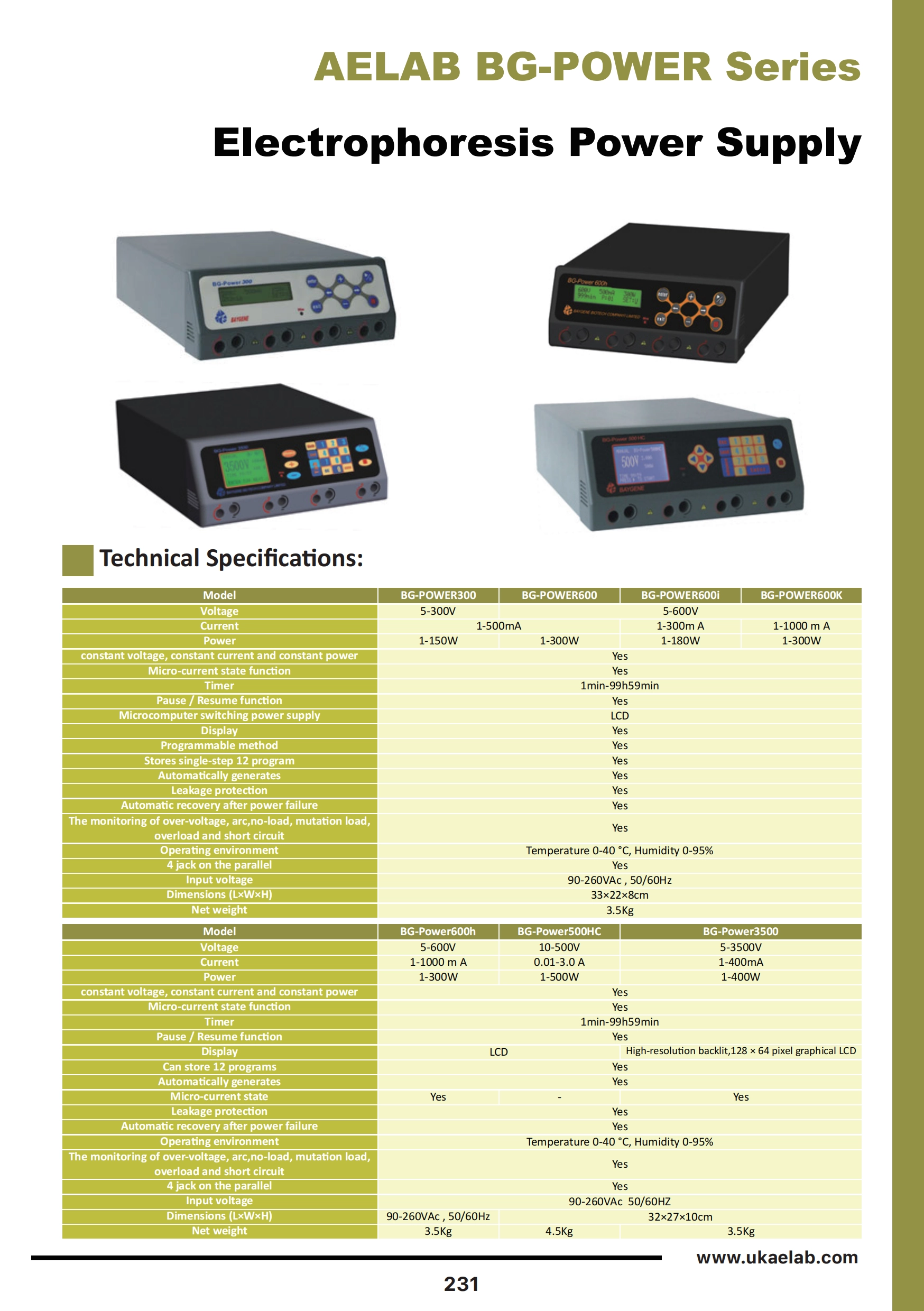

| Model | BG-POWER300 | BG-POWER600 | BG-POWER600i | BG-POWER600K |
| Voltage | 5-300V | 5-600V | 5-600V | 5-600V |
| Current | 1-500mA | 1-500 m A | 1-300m A | 1-1000 m A |
| Power. | 1-150W | 1-300W | 1-180W | 1-300W |
| constant voltage, constant current and constant power | Yes | |||
| Micro-current state function | Yes | |||
| Timer | 1min-99h59min | |||
| Pause / Resume function | Yes | |||
| Microcomputer switching power supply | LCD | |||
| Display | Yes | |||
| Programmable method | Yes | |||
| Stores single-step 12 program | Yes | |||
| Automatically generates | Yes | |||
| Leakage protection | Yes | |||
| Automatic recovery after power failure | Yes | |||
| The monitoring of over-voltage, arc,
no-load, mutation load, overload and short circuit |
Yes | |||
| Operating environment | Temperature 0-40 °C, Humidity 0-95% | |||
| 4 jack on the parallel | Yes | |||
| Input voltage | 90-260VAc , 50/60Hz | |||
| Dimensions (L×W×H) | 33×22×8cm | |||
| Net weight | 3.5Kg | |||
| Model | BG-Power600h | BG-Power3500 | BG-Power500HC |
| Voltage | 5-600V | 5-3500V | 10-500V |
| Current | 1-1000 m A | 1-400mA | 0.01-3.0 A |
| Power | 1-300W | 1-400W | 1-500W |
| constant voltage, constant current and constant power | Yes | ||
| Microcomputer switching power supply | Yes | ||
| Timer | 1min-99h59min | ||
| Pause / Resume function | Yes | ||
| Display | LCD | High-resolution backlit,
128 × 64 pixel graphical LCD |
|
| Programmable method | Yes | ||
| Can store 12 programs | Yes | ||
| Automatically generates | Yes | ||
| Micro-current state | Yes | -- | |
| Leakage protection | Yes | ||
| Automatic recovery after power failure | Yes | ||
| The monitoring of over-voltage, arc, no-load,
mutation load, overload and short circuit |
Yes | ||
| Operating environment | Temperature 0-40 °C, Humidity 0-95% | ||
| 4 jack on the parallel | Yes | ||
| Input voltage | 90-260VAc 50/60HZ | ||
| Dimensions (L×W×H) | 32×22×8cm | 32×27×10cm | |
| Net weight | 3.5Kg | 4.5Kg | |
