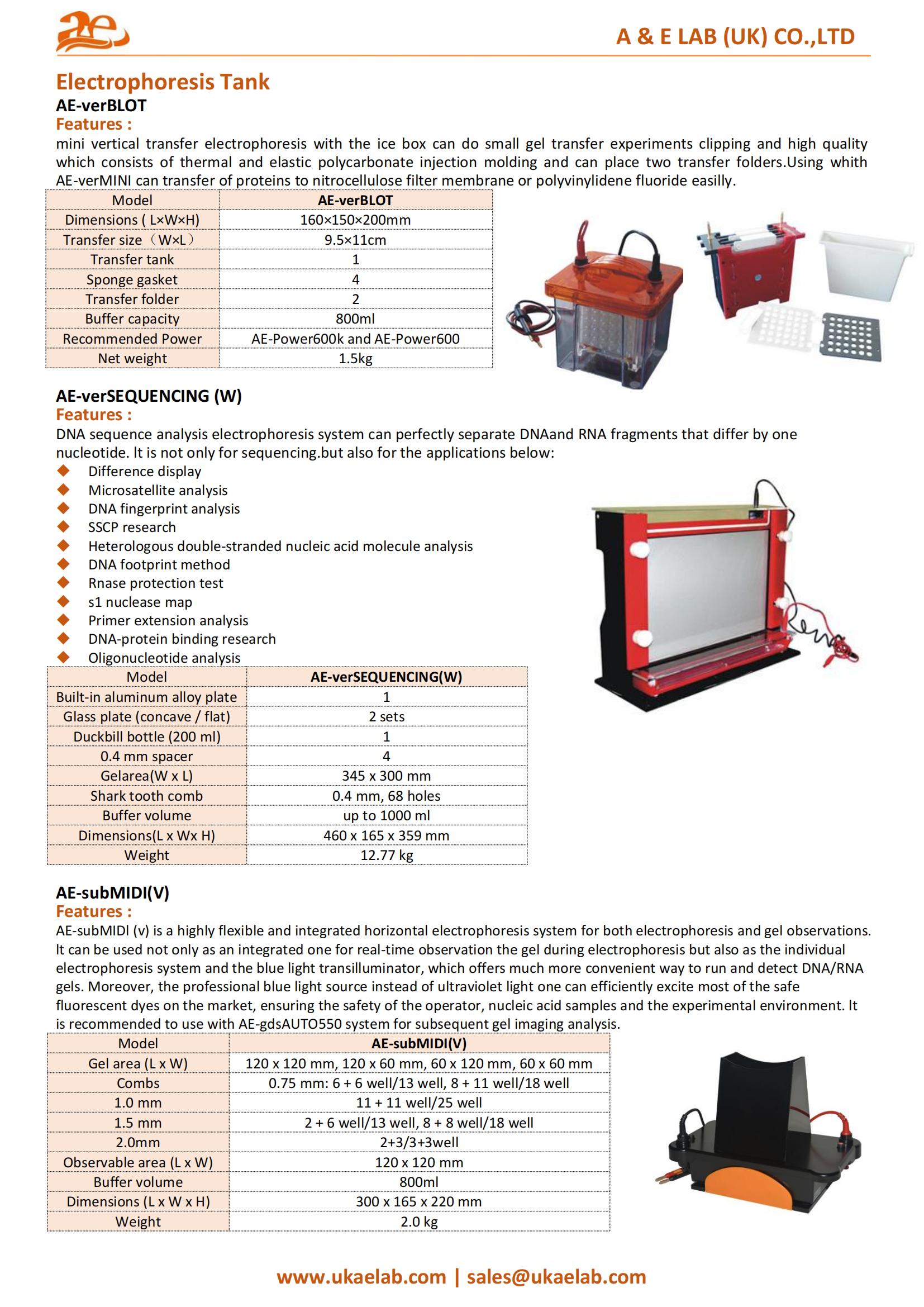

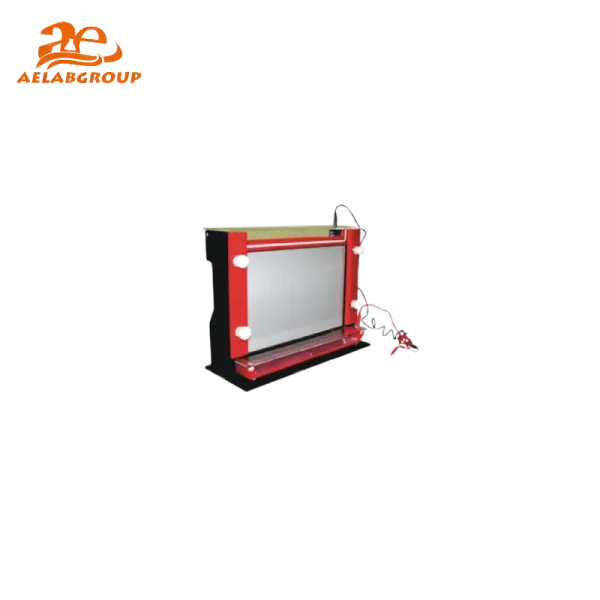

Model :AE-verSEQUENCING (W)
The AELAB AE-verSEQUENCING (W) Electrophoresis Tank is engineered for high-resolution DNA and RNA separation. Built for laboratories demanding accurate molecular analysis, it supports advanced applications like DNA fingerprinting, SSCP, and oligonucleotide studies.
Need Help with This Product?
An electrophoresis tank is a lab device used to separate substances like proteins or DNA fragments. It consists of a container filled with a gel and a conductive solution. When an electric current is applied, the substances move through the gel, with their movement depending on their size and charge. This setup helps in analyzing and identifying different molecules based on their travel distance through the gel.
Features :
DNA sequence analysis electrophoresis system can perfectly separate DNAand RNA fragments that differ by one nucleotide. lt is not only for sequencing.but also for the applications below:
Electrophoresis tanks like the AE-verSEQUENCING (W) operate by applying an electric field to samples embedded in a gel matrix. DNA or RNA fragments migrate through the gel based on size and charge. This model ensures fine resolution, enabling researchers to detect even a single nucleotide difference—critical for sequencing and mutation analysis.
✅ Exceptional Resolution: Accurately separates nucleic acid fragments by a single nucleotide.
✅ Multi-Application Design: Ideal for sequencing, microsatellite analysis, and SSCP research.
✅ High-Capacity Buffer System: Supports up to 1000 ml for stable, long-run operations.
✅ Durable Construction: Reinforced with aluminum alloy and precision glass plates.
✅ User-Friendly Setup: Comes with spacers, combs, and duckbill bottle for easy sample loading.
Educational Labs: AE-verSEQUENCING (W) is suitable for teaching foundational molecular biology techniques.
Research Institutes: Preferred for genetic mapping, mutation detection, and advanced DNA-protein binding studies.
Clinical or QC Labs: Applicable for DNA fingerprinting and RNase protection assays in diagnostic settings.
Molecular biology laboratories
Genetic sequencing facilities
Forensic and crime labs
Biochemistry departments
Pharmaceutical R&D
Agricultural genome research centers
| Model | AE-verSEQUENCING(W) |
| Built-in aluminum alloy plate | 1 |
| Glass plate (concave / flat) | 2 sets |
| Duckbill bottle (200 ml) | 1 |
| 0.4 mm spacer | 4 |
| Gelarea(W x L) | 345 x 300 mm |
| Shark tooth comb | 0.4 mm, 68 holes |
| Buffer volume | up to 1000 ml |
| Dimensions(L x Wx H) | 460 x 165 x 359 mm |
| Weight | 12.77 kg |
