AELAB ULT Freezer -86°C MDF-86V338 Series for Ultra-Low Storage

Overview

The -86°C ULT Freezer with a cascade cooling system employs a two-stage refrigeration process to achieve and maintain temperatures as low as -86°C. This design improves cooling efficiency and ensures stable, reliable storage for sensitive materials.

Features

• Energy saving, Eco-friendly and low-noise cascade cooling system.
• 7′ Toucn Screen microprocessor temperature controller.
• Audible and visual alarm system.
• Options: LN2 backup system, racks and boxes, 110V/50Hz power.

🔬 How It Works?

The AELAB ULT Freezer employs a cascade cooling system—a two-stage refrigeration process where one compressor cools the refrigerant for the second stage. This setup allows the freezer to achieve ultra-low temperatures of -86°C while maintaining stability and reducing energy consumption. The touch screen microprocessor controller enables precise temperature adjustments, while the audible and visual alarm system ensures immediate alerts in case of deviation.

💡 Advantages

• Stable Ultra-Low Temperatures: Maintains -86°C for long-term preservation of sensitive samples.

• Eco-Friendly Cooling: Uses R290 and R170 refrigerants for reduced environmental impact.

• Energy Efficient & Low Noise: Designed for continuous operation in research facilities.

• Advanced Control: 7″ touch screen with easy monitoring and calibration.

• Safety Features: Built-in alarms and optional LN2 backup system.

🔍 Recommended Models by Use Case

• Educational Labs: MDF-86V338, MDF-86V408 — compact size, ideal for teaching labs.

• Research Centers: MDF-86V588, MDF-86V728 — larger capacity for storing diverse samples.

• Quality Control & Industrial Labs: MDF-86V838 — maximum capacity for high-volume storage needs.

🧪 Ideal For

• Biomedical sample preservation

• Pharmaceutical R&D

• Food safety and microbiology labs

• Genetic and molecular biology research

• Chemical analysis and material testing

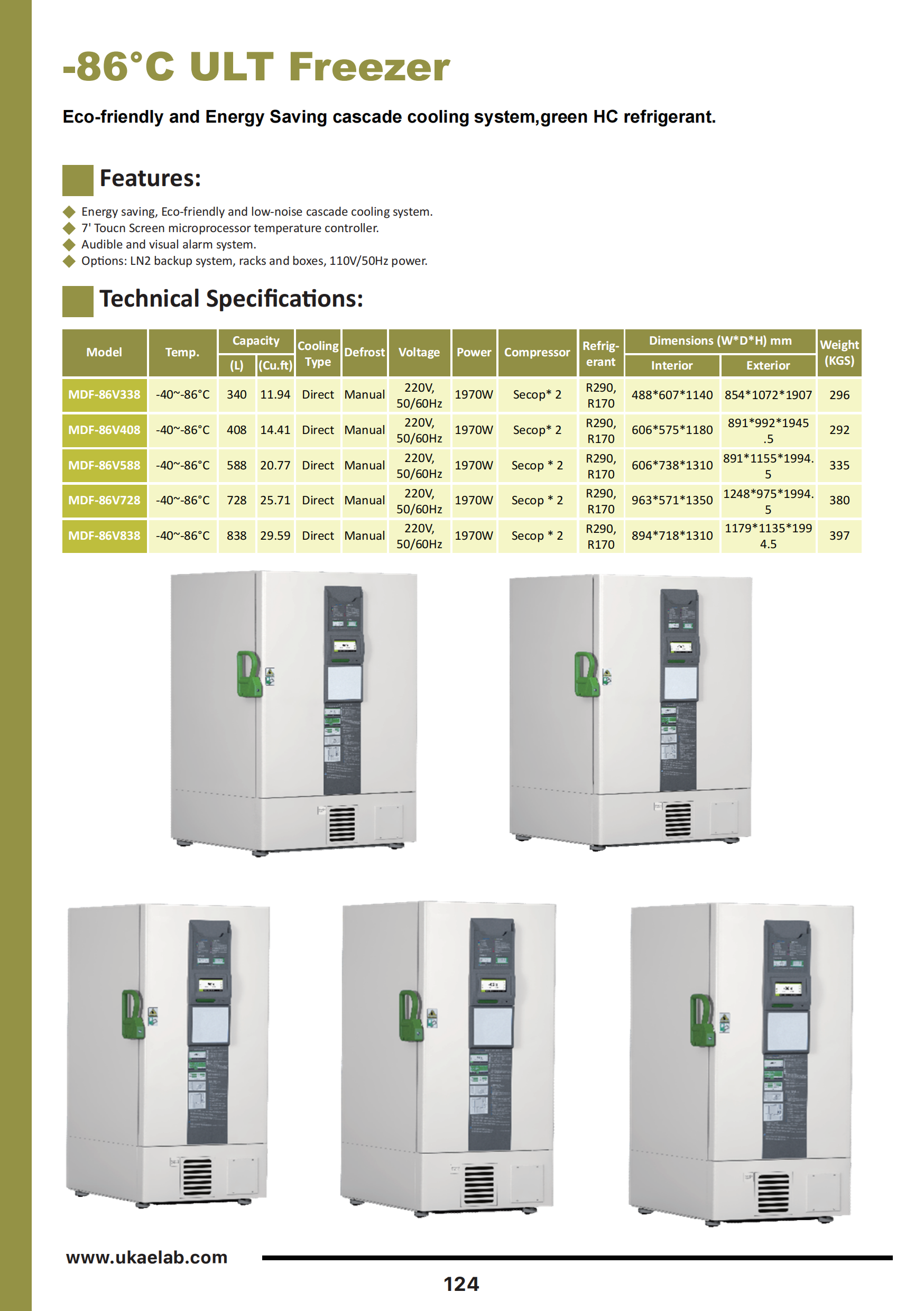

Specifications
