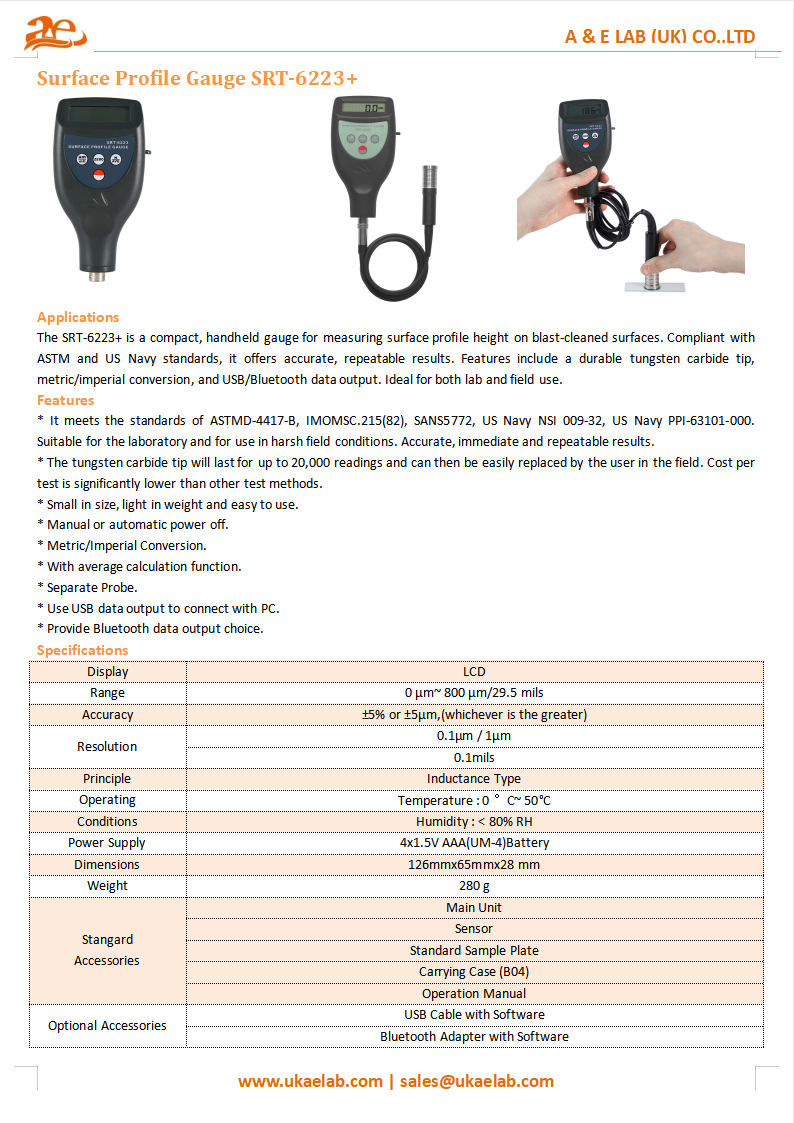

Surface Profile Gauge SRT-6223+

Overview

The SRT-6223+ is a handheld digital surface profile gauge designed for fast, accurate measurement of peak-to-valley height on blast-cleaned surfaces. Compliant with ASTM, IMO, and US Navy standards, it delivers repeatable results in both lab and harsh field conditions. Featuring a durable tungsten carbide tip, it offers up to 20,000 readings before replacement. The gauge includes manual or automatic power off, metric/imperial conversion, average calculation, and options for USB/Bluetooth data output. Compact, lightweight, and easy to use, it is ideal for quality control in various industries.

Features

•  It meets the standards of ASTMD-4417-B, IMOMSC.215(82), SANS5772, US Navy NSI 009-32, US Navy PPI-63101-000. Suitable for the laboratory and for use in harsh field conditions. Accurate, immediate and repeatable results.
• The tungsten carbide tip will last for up to 20,000 readings and can then be easily replaced by the user in the field. Cost per test is significantly lower than other test methods.
• Small in size, light in weight and easy to use.
• Manual or automatic power off.
•  Metric/Imperial Conversion.
• With average calculation function.
• Separate Probe.
• Use USB data output to connect with PC.
•  Provide Bluetooth data output choice.

Specifications
