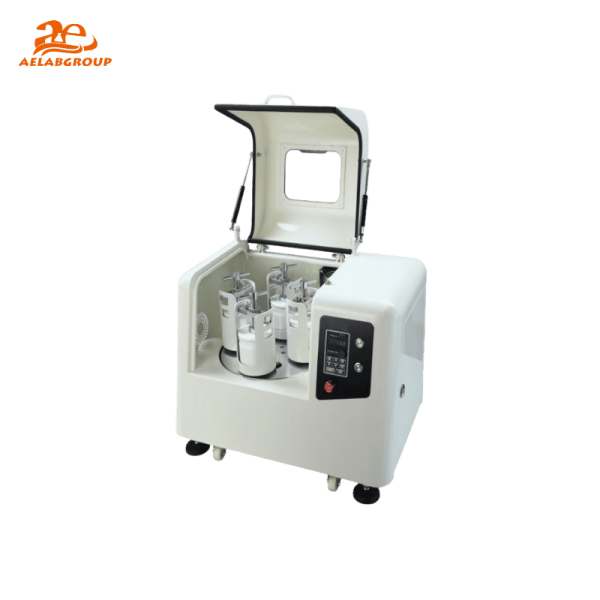

Planetary Ball Mill YXQM Series

Name: Planetary Ball Mill YXQM Series
Brand: AELAB
SKU: YXQM-0.4L~YXQM-1L~YXQM-2L~YXQM-4L~YXQM-8L~YXQM-12L~YXQM-16L~YXQM-20L~YXQM-40L~YXQM-60L~YXQM-80L~YXQM-100L

Model :YXQM-0.4L~YXQM-1L~YXQM-2L~YXQM-4L~YXQM-8L~YXQM-12L~YXQM-16L~YXQM-20L~YXQM-40L~YXQM-60L~YXQM-80L~YXQM-100L

The YXQM Series Planetary Ball Mill uses a patented oil-seal silent design to reduce noise by 50% and extend its lifespan. Capable of achieving nano-scale grinding with a fineness of up to 0.1μm, it’s ideal for colloidal grinding. The PLC control panel allows for easy settings of time, RPM, and rotation direction. The unit is easily movable with wheels and includes a safety door that opens only when the machine has stopped, ensuring safe usage.

WhatsApp Us Ask by Email

Downloads

Planetary Ball Mill YXQM SeriesPDF · 137.32 KB

Need Help with This Product?

Ella Wu +8615800016110

Overview

The YXQM Series Planetary Ball Mill features an innovative oil-seal silent technology, with a patented design that reduces noise by 50% compared to other planetary ball mills on the market, while extending the service life by more than 2 times. This model can achieve nano-scale grinding with a final fineness of up to 0.1μm, making it ideal for colloidal grinding. It is equipped with a PLC control panel, offering easy operation and high efficiency, allowing for the setting of time, RPM, and both forward and reverse rotation. The device is designed to be mobile, with wheels for easy handling, making it quick and convenient to move. Additionally, the safety door can only be opened when the machine is stopped, ensuring safe operation.

Features：

Oil seal silent invention patent, 50% lower noise than the other planet ball mill in the market, Extend the service life by more than 2 times.
PLC panel, convenient, simple, highly efficient, setting the time/RPM/positive/reverse rotation.
The device can be moved by wheels, light handling, fast and save.
Safety door which could be opened when the machine is stopped.

Specifications

Application to laboratory

Model	YXQM-0.4L	YXQM-1L	YXQM-2L	YXQM-4L	YXQM-8L	YXQM-12L
Grinding Jar Size	50-100 (ml)	50-250 (ml)	50-500 (ml)	50-1000 (ml)	500-2000 (ml)	1000-3000 (ml)
Vacuum Jar Size	50 (ml)	50-100 (ml)	50-250 (ml)	50-500 (ml)	500-2000 (ml)	1000-3000 (ml)
Sun Wheel Speed	5-450 (r/min)	5-450 (r/min)	5-400 (r/min)	5-400 (r/min)	5-320 (r/min)	5-320 (r/min)
Ball Mill Jar Speed	10-900 (r/min)	10-900 (r/min)	10-800 (r/min)	10-800 (r/min)	10-640 (r/min)	10-640 (r/min)
Power	0.55 (kw)	0.55 (kw)	0.75 (kw)	0.75 (kw)	1.5 (kw)	1.5 (kw)
Voltag	220/50 (v/hz)	220/50 (v/hz)	220/50 (v/hz)	220/50 (v/hz)	220/380/50 (v/hz)	380/50 (v/hz)
Weight	68 (kg)	70 (kg)	96 (kg)	99 (kg)	191 (kg)	193 (kg)

Application to mass production

Model	YXQM-16L	YXQM-20L	YXQM-40L	YXQM-60L	YXQM-80L	YXQM-100L
Grinding Jar Size	1-4 (L)	1-5 (L)	5-10 (L)	10-15 (L)	10-20 (L)	10-25 (L)
Vacuum Jar Size	1-4 (L)	1-5 (L)	5-10 (L)	10-15 (L)	10-20 (L)	10-25 (L)
Sun Wheel Speed	5-230 (r/min)	5-230 (r/min)	5-220 (r/min)	5-220 (r/min)	5-180 (r/min)	5-180 (r/min)
Ball Mill Jar Speed	10-460 (r/min)	10-460 (r/min)	10-440 (r/min)	10-440 (r/min)	10-360 (r/min)	10-360 (r/min)
Power	3 (kw)	3 (kw)	7.5 (kw)	7.5 (kw)	15 (kw)	15 (kw)
Voltage	380/50 (v/hz)	380/50 (v/hz)	380/50 (v/hz)	380/50 (v/hz)	380/50 (v/hz)	380/50 (v/hz)
Weight	230 (kg)	288 (kg)	400 (kg)	610 (kg)	610 (kg)	1059 (kg)
