Model :MX-T6 Series
The AELAB MX-T6-Pro LCD Digital Tube Roller provides controlled rocking and rolling motion for reliable sample mixing in clinical, research, and industrial laboratories. With a brushless DC motor, LCD timer, and 10–70 rpm speed range, it stabilizes complex fluids and biological specimens while ensuring uniform, reproducible mixing performance.
Need Help with This Product?
The AELAB MX-T6-Pro LCD Digital Tube Roller is engineered for controlled rocking and rolling motion, enabling efficient mixing of blood samples, viscous solutions, and biological materials. Its LCD interface, adjustable speed range, and brushless DC motor ensure stable, reproducible performance across modern laboratory workflows.
This system supports gentle end-over-end motion using six parallel rollers, offering reliable results in hematology, immunology, biochemistry, and pharmaceutical sample preparation. With compatibility for cold rooms and incubators, the MX-T6-Pro is suitable for continuous or timer-based laboratory mixing tasks.
The AELAB MX-T6-Pro Digital Tube Roller is built on a robust platform with a 24mm rocking amplitude and six-roller configuration for uniform agitation along the entire tube length. Its brushless DC motor provides maintenance-free operation and extended service life. The LCD panel displays real-time speed and timing parameters, supporting precise process tracking. The instrument’s frame is designed for easy cleaning and continuous laboratory use.
The MX-T6-Pro stabilizes sample homogenization by combining rocking and rolling motion, enabling smooth end-over-end mixing without shearing delicate specimens. Tubes rotate gently over the parallel rollers, ensuring consistent, reproducible motion. The adjustable speed range of 10–70 rpm allows optimization for blood components, cell suspensions, resin slurries, and diagnostic reagents. Timer control (1–119 minutes) or continuous operation supports procedural flexibility for extended laboratory processes.
The MX-T6-Pro functions as a standalone digital tube roller with onboard controls. It is suitable for GLP-oriented laboratories requiring consistent performance and traceable process settings. LCD-based operation simplifies workflow integration with incubators, biosafety cabinets, and routine sample preparation lines.
| Model | Specifications |
|---|---|
| MX-T6-Pro | 10–70 rpm, LCD display, timer 1–119 min, brushless DC motor, 485×250×100 mm, 5.1 kg |
| MX-T6-S | 0–70 rpm, scale display, brush DC motor, 6-roller system |
| MX-T6-S+ | 0–70 rpm, scale display, brushless DC motor, 4.5 kg |
The AELAB MX-T6-Pro is suited for blood sample mixing, viscous solution blending, biological specimen preparation, chemical extraction workflows, diagnostic testing, and cell culture media preparation. It supports workflows in hospital laboratories, research centers, biotechnology facilities, and pharmaceutical QC labs.
The MX-T6-Pro is designed in alignment with GLP-oriented laboratory practices, ensuring stable operation, reproducible mixing, and adherence to international laboratory equipment standards. All AELAB instruments undergo rigorous performance verification and quality control testing.

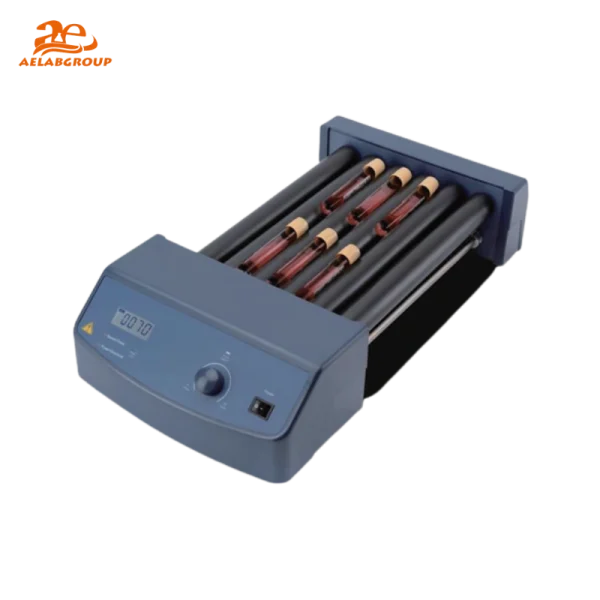

Front view of the AELAB MX-T6-Pro LCD Digital Tube Roller, clearly showing the control panel and LCD display for precise speed and timer settings, ideal for laboratory tube mixing and rotation.

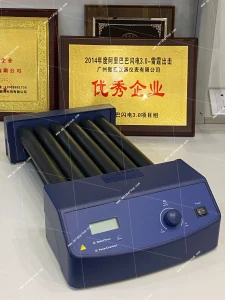

Side angle view of the MX-T6-Pro tube roller, highlighting its six roller slots designed to accommodate various test tube sizes, ensuring uniform and stable mixing

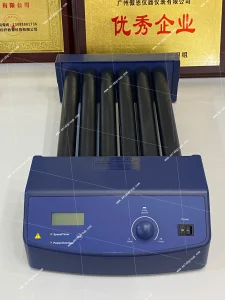

Top view of the MX-T6-Pro tube roller, featuring the LCD display and speed/timer knob for precise control of mixing time and speed, enhancing laboratory efficiency.

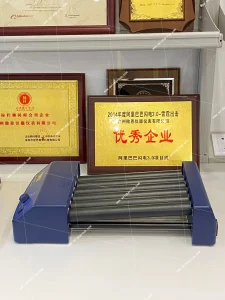

Overview of the MX-T6-Pro tube roller in a lab setting, showing its placement and operation. The robust construction and high-quality materials make it suitable for long-term laboratory use
| Specifications | MX-T6-Pro | MX-T6-S | MX-T6-S+ | |
|---|---|---|---|---|
| Amplitude | 24mm | 24mm | 24mm | |
| Motor type | Brushless DC motor | Brush DC motor | Brushless DC motor | |
| Rocking motion | Rocking and rolling | Rocking and rolling | Rocking and rolling | |
| Max. load capacity | 4kg | 4kg | 4kg | |
| Number of rollers | 6 | 6 | 6 | |
| Roller size [length] | 280mm | 280mm | 280mm | |
| Speed range | 10-70rpm | 0-70rpm | 0-70rpm | |
| Speed display | LCD | Scale | ||
| Timer | Yes | – | ||
| Timer display | LCD | – | ||
| Time setting range | 1-1199min | – | ||
| Operation mode | Continuous/timer | Continuous | ||
| Voltage, Frequency | 100-240V, 50/60Hz | 100-240V, 50/60Hz | ||
| Power | 30W | 25W | ||
| Dimension (D×W×H) | 485×250×100mm | 485×250×100mm | ||
| Weight | 5.1kg | 4.5kg | ||
| Permissible ambient temperature and humidity | 5-40°C, 80%RH | 5-40°C, 80%RH | ||
| Protection class | IP21 | IP21 | ||
