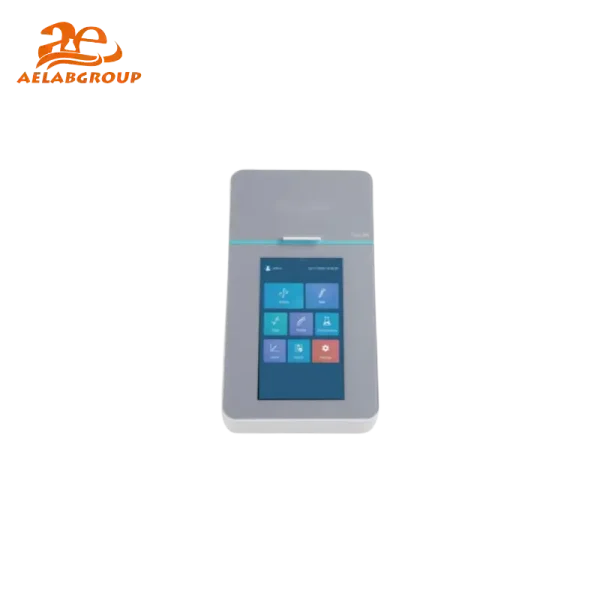

Model :Fluo-800
The AELAB Fluo 800 Fluorometer delivers high-throughput, high-sensitivity fluorescence detection for DNA, RNA, and protein quantification. With the ability to analyze up to 8 samples simultaneously in just 6 seconds, it empowers clinical, research, and QC labs with accurate, fast, and reliable results. Designed with an intuitive touchscreen interface and dual-channel detection, it ensures both precision and ease of use.
Need Help with This Product?
The Fluo-200 fluorometer provides high-sensitivity quantitative analysis of DNA, RNA, and proteins, making it essential for research and clinical applications. The Fluo-800 model enhances this capability by allowing simultaneous fluorescence detection of up to eight samples, increasing throughput and efficiency. Its high-precision detection method effectively minimizes variation, ensuring reliable results. The intuitive software features a user-friendly interface, enabling quick setup and operation. Additionally, the rapid testing method significantly reduces overall testing time, making both models ideal for busy laboratories requiring accurate and timely analyses.
Features:
The Fluo 800 operates using advanced LED-based fluorescence detection. Upon excitation by dual-wavelength LEDs, target molecules (like DNA, RNA, or proteins) emit specific fluorescence signals, which are filtered and measured by a high-precision photodiode. With pre-set channels for different dyes and a linear dynamic range across 4 orders of magnitude, the instrument ensures consistent, reproducible results. The software automates the workflow—from calibration to result export—making complex analysis simple and fast.
⚡ Ultra-Fast Testing: Analyze 8 samples in just 6 seconds
🎯 Exceptional Accuracy: Detect as low as 1 pg/μL (dsDNA HS)
📈 High Throughput: Ideal for busy labs needing fast sample processing
🧠 User-Friendly Interface: Large touchscreen for easy setup and control
🔄 Flexible Reagent Compatibility: Open platform for various reagent brands
🧾 Comprehensive Data Management: Export as PDF/CSV, store 10,000+ programs
🔌 Connectivity Ready: Multiple USB ports and LAN for seamless integration
| Model | Best For |
|---|---|
| Fluo-200 | Educational labs, low-volume workflows, single-sample analysis |
| Fluo-800 | Research institutions, clinical diagnostics, QC labs with high throughput needs |
Molecular biology labs
Clinical diagnostic labs
Pharmaceutical QC departments
Academic research institutions
Food safety and environmental testing labs
| Model | Fluo-200 | Fluo-800 |
| Lightsource | LED | LED |
| Excitation filter | Blue：460±20nmRed：625±20nm | Blue：460±20nmRed：625±20nm |
| Emission filter | Green：525-570nm(45nm) Red：670-725nm(55nm) | Green：525-570nm(45nm) Red：670-725nm(55nm) |
| Detector | Photodiode | Photodiode |
| Throughput | 1 | 8 |
| Sample tube type | 0.5mL PCR tube | 0.2mL tube strip |
| Linear | r2≥0.995 | r2≥0.995 |
| Linear range | 5 orders of magnitude | 4 orders of magnitude |
| Sensi vity(detection limit) | <0.1pg/μL(dsDNA HS) | <1pg/μL(dsDNA HS) |
| Measurement time | ≤5s/sample | ≤6s/8 samples |
| Input power | 24V2A | 24V2A |
| Operating voltage | 100-240V@50-60Hz | 100-240V@50-60Hz |
| External port | USB(Type A) x 2，USB(Type B) x 1， LAN x 1 | USB(Type A) x 2，USB(Type B) x 1， LAN x 1 |
| Display | 7-inch touch screen | 7-inch touch screen |
| Size(Dx WxH) | 286mmx161mmx61mm | 286mmx161mmx75mm |
| Weight | 1.5kg | 2kg |
| Storage capacity | 10000 programs | 10000 programs |
| Code | Product Description |
| AS-18050-00 | Fluo-200 fluorometer(Blue&Red) |
| AS-18060-00 | Fluo-800 fluorometer(Blue&Red) |
| RS-FL0101-S | high sensitivity dsDNA quant if cation kit( 100 assays) |
| RS-FL0101-M | high sensitivity dsDNA quanti cation kit( 200 assays) |
| RS-FL0101-L | high sensitivity dsDNA quanti cation kit( 1000 assays) |
| RS-FL0102-S | wide range dsDNA quant fication kit( 100 assays) |
| RS-FL0102-M | wide range dsDNA quanti cation kit( 200 assays) |
| RS-FL0102-L | wide range dsDNA quantification kit( 1000 assays) |
