Model :SK8800Vet

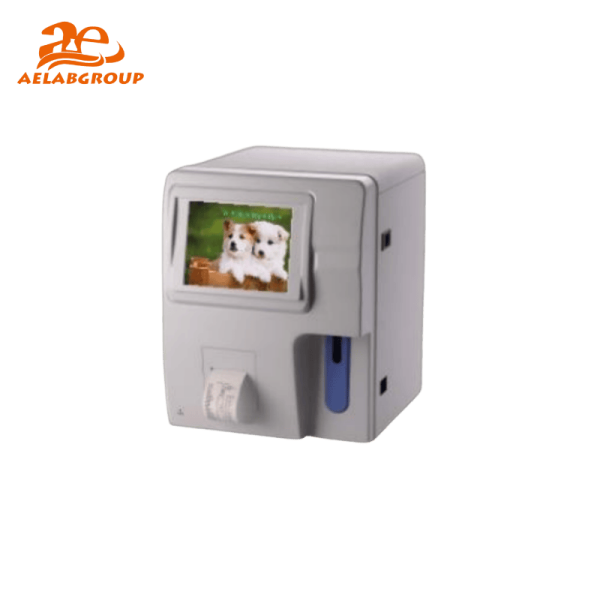

The AELAB SK8800Vet Veterinary Full-Auto Hematology Analyzer performs precise 3-part WBC differentiation and 23-parameter CBC testing for multi-species diagnostics. Using electrical resistance for counting and the SFT hemoglobin method, the system ensures accurate measurement with low sample consumption and high throughput for modern veterinary laboratories.
Need Help with This Product?
The AELAB SK8800Vet Veterinary Full-Auto Hematology Analyzer is designed for comprehensive animal blood testing across multiple species, including cats, dogs, horses, rodents, livestock, and laboratory animals. The system integrates 3-part WBC differentiation, 23 measurement parameters, and histogram analysis, providing a reliable CBC platform for veterinary clinics and research facilities.
With electrical resistance counting and SFT hemoglobin measurement, the SK8800Vet ensures stable analytical performance with low sample consumption and efficient workflow operation. Its 8.4” color TFT interface supports simultaneous parameter display with Windows-based intuitive control.
The AELAB SK8800Vet incorporates an advanced valve system and long-life analytical components to ensure stable performance during continuous operation. The system uses electrical resistance sensors for cell counting and a dedicated SFT hemoglobin measurement channel. The enclosure houses an 8.4” TFT display, integrated thermal printer, automatic probe cleaning (inside and outside), and RS232 communication ports.
The analyzer quantifies WBC, RBC, and PLT using electrical resistance technology, while hemoglobin is determined using the cyanide method and SFT method for enhanced stability. Sample aspiration is precisely regulated (9.6 µL for venous/capillary mode and 20 µL for pre-diluted mode). Automatic dilution, mixing, rinsing, and clog-clearing functions ensure reproducible results across all animal types.
The SK8800Vet includes RS232 ports for PC connection, parallel printer support, and compatibility with graphical printing formats. Data management includes storage for up to 100000 results with histograms, ensuring GLP-compliant recordkeeping.
| Model | Specifications |
|---|---|
| SK8800Vet | 3-part WBC differentiation, 23 parameters, 9.6 µL sample volume, >35 tests/hour, 100000-result storage, 33×38×43 cm, 20 kg |
The AELAB SK8800Vet is suitable for veterinary diagnostic centers, animal hospitals, breeding facilities, livestock screening, laboratory animal research, and wildlife rehabilitation centers. It supports CBC measurement for small animals, companion animals, livestock, and exotic species.
The analyzer incorporates QC modes including X-B, L-J, X, SD, and CV% analysis. All components follow AELAB manufacturing standards with calibration traceability and vet-laboratory quality protocols.
| Animal Type | Cat, dog, horse, mouse, rat, rabbit, pig, cow, monkey, sheep, plus 5 user-defined animal settings |
|---|---|
| Methodology | Electrical resistance for counting, hemoglobin cyanide method and SFT method for hemoglobin |
| Parameter | 3-part differentiation of WBC; 20 parameters and 3 color histograms (WBC, RBC, PLT) |
| Work mode | Single Channel + unique Hemoglobin test system |
| Sample volume | 9.6 µL for Venous and capillary mode, 20 µL for pre-diluted mode |
| Throughput | More than 35 samples per hour, operate 24 hours a day, auto sleeping and waking-up functions |
| Storage | Up to 100000 sample results including histograms can be stored, convenient for inquiry and management of history data |
| Operation language | English |
| QC control | X-B, L-J, X, SD, CV % |
| Reference Value Setting | Male, Female, Children, Neonate |
| Alarm | 25 test of alert messages |
| Input / output | RS232, parallel printer and keyboard |
| Graphic thermal printer with various printing format, optional external printer | |
| Temperature | 18°C – 30°C, wet ≤ 10–90% |
| Power supply | 220 V ±22 VAC, 50±1 Hz |
| Dimension | 33 CM (L) * 38 CM (W) * 43 CM (H) |
| Weight | 20 KG |
