Model :NANO-500

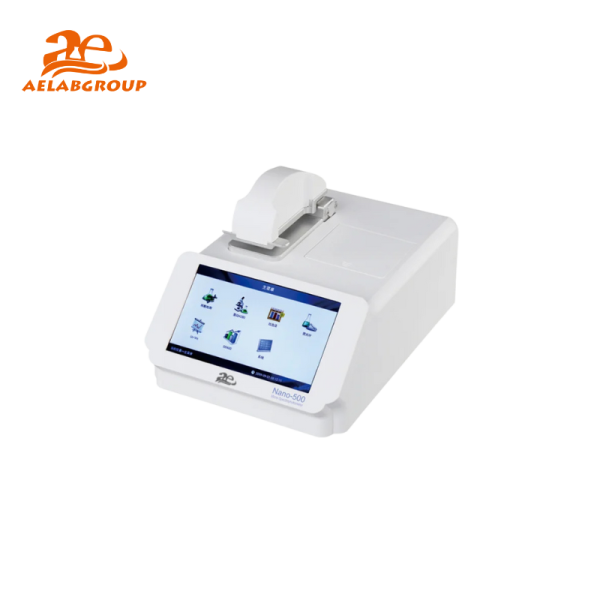

The AELAB NANO-500 Micro Volume Spectrophotometer is designed for precise analysis of nucleic acids, proteins, and biomolecules using as little as 0.5 µl of sample. With its intuitive touch screen, rapid measurement time, and built-in cuvette holder, it combines efficiency, accuracy, and versatility for modern laboratories.
Need Help with This Product?
The MicroSpectrophotometer NANO-500 is an advanced instrument designed for precise measurement of nucleic acids, proteins, and other biomolecules in micro-volume samples. It offers enhanced accuracy and sensitivity, suitable for various applications in molecular biology and biochemistry. The NANO-500 features an intuitive touch screen interface, requires no external computer, and includes a built-in cuvette holder, allowing for flexible measurement options. Its compact design makes it ideal for labs with limited space, while its high-performance optics ensure reliable and reproducible results.
Features
The NANO-500 utilizes high-performance optical technology to measure absorbance and fluorescence in micro-volume samples. Its Xenon flash lamp provides stable illumination, while the linear CMOS array detector ensures precise readings. Users simply place 0.5–2 µl of a sample directly on the pedestal or in a cuvette. The instrument calculates concentration and purity instantly—without dilution or preheating—making it fast and reliable for routine lab analysis.
Micro-Volume Efficiency: Requires as little as 0.5 µl of sample, minimizing waste.
High Sensitivity: Detects dsDNA down to 0.5 pg/µl with excellent repeatability.
Versatile Measurement: Supports nucleic acids, proteins, oligos, and other biomolecules.
Dual Operation Modes: Pedestal & cuvette for flexible applications.
User-Friendly Interface: 7-inch Android touch screen with intuitive UI.
Time-Saving: Results in less than 6 seconds, with no preheating required.
Long-Term Value: Xenon lamp lasts >10⁹ flashes, reducing maintenance needs.
Data Management: Export results to USB in Excel or JPG formats.
Educational Labs & Training Centers → Simple, fast, and durable for routine teaching.
Research & Molecular Biology Labs → High sensitivity for nucleic acids, RNA, and protein studies.
Pharma & QC Departments → Reliable performance and GMP suitability for quality testing.
Food & Environmental Labs → Versatile detection for biomolecules in applied sciences.
DNA, RNA, and protein quantification
Molecular biology and biochemistry research
Pharmaceutical quality control
Food safety and environmental testing
Clinical and academic research laboratories
| Model | NANO-500 | |
| Absorbance Precision | 0.002Abs (1mm WaveLength) | |
| Detector | 2048 -element linear CMOS array | |
| Sample Volume | 0.5µl~2µl, advice 2µl | |
| Absorbance Accuracy | ±1% (7.332 at 260nm) | |
| Power Adaptor | DC12V 4A | |
| Wavelength Range | 180~910nm | |
| Measurement Time | <6s | |
| Power | 48W | |
| Wavelength Accuracy | ±1nm | |
| Path Length | 0.03mm、0.05mm、0.1mm、0.2mm、1mm | |
| DiDimension (W*D*H) | 300*232*196mm | |
| Spectral Resolution | ≤1.5nm(FWHM @ Hg 253.7nm) | |
| Light source / Life | Xenon / Flashes >10⁹ | |
| Weight | 3.8 kg | |
| Absorbance Range | 0.02~750 (260nm, egualsto 10mm Wavelength) | |
| Concentration Range | 2ng/µl dsDNA~37500ng/µl dsDNA | |
| OD600 | Absorbance Range | 0~4.000Abs |
| Absorbance Stability | [0,3) ≤ 0.5%, [3,4) ≤ 1.5% | |
| Absorbance Repeatability | [0,3) ≤ 0.5%, [3,4) ≤ 1.5% | |
| Absorbance Accuracy | [0,2) ≤ 0.005A, [2.3) ≤ 1%, [3,4) ≤ 2% | |
| Heating up | 37℃ | |
| Stirring speed | 100-900rpm | |
| Fluorometer | Sample Volume | 1-20µl |
| Measurement Time | 3s | |
| Concentration Range | 0.01ng/µl-120ng/µl dsDNA HS
0.2ng/µl-2000ng/µl dsDNA BR 0.05ng/µl-240ng/µl Oligo 01mg/ml-20mg/ml proteinBR |
|
| Repeatability | < 1.5% | |
| orders of magnitude of concentration | 5 | |
| Linear dynamic range | R² ≥ 0.995 | |
| Light Source | LED | |
| Excitation wavelength | 470/625 (Standard)
365/525 (Optional) |
|
| Emission wavelength | 525/690 (Standard)
460/620 (Optional) |
|
