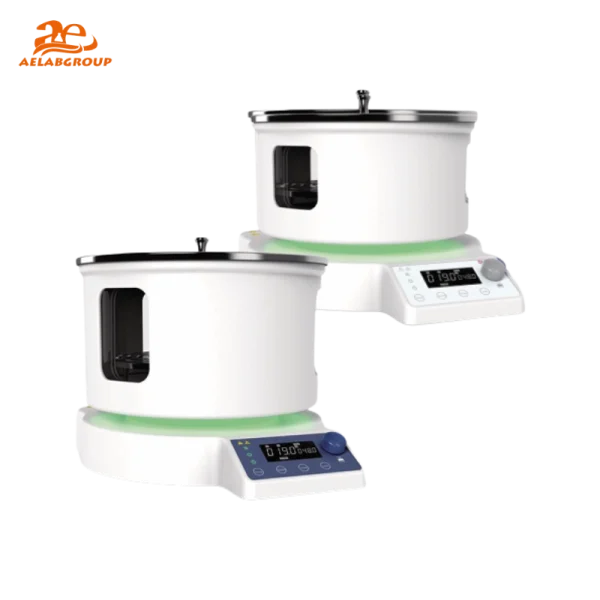

AELAB MS-H220-V3 / MS-H220-V5 LCD Digital Heating Magnetic Stirring Bath

Overview

The AELAB MS-H220-V3 / MS-H220-V5 LCD Digital Heating Magnetic Stirring Bath is a high-precision heating and stirring system designed for demanding laboratory workflows. Featuring a durable borosilicate glass bath, stainless steel base, and brushless DC motor, it ensures stable, uniform, and safe sample heating and mixing. These advanced heating magnetic stirring baths deliver exceptional performance for research, chemical analysis, and routine laboratory applications.

The heating magnetic stirring bath uses a brushless DC motor and a rotating magnetic field to spin a magnetic stir bar inside the vessel, enabling uniform and continuous mixing. Simultaneously, the borosilicate glass heating bath distributes heat evenly around the sample. Advanced temperature control circuitry, PT1000 sensing, and overheating protection ensure accurate, stable, and safe operation throughout the experiment.

⚙️ Design & Construction

The MS-H220-V3 and MS-H220-V5 are constructed with high borosilicate glass baths that resist thermal shock and ensure efficient heat transfer. A stainless steel base provides mechanical stability and corrosion resistance. The transparent glass window enables real-time monitoring of reaction progress. Brushless DC drive technology supports spark-free, low-noise, and maintenance-free stirring performance. Dual-layer thermal protection and a “HOT” warning indicator enhance operator safety.

🔬 Working Principle / Testing Method

The system uses a rotating magnetic field to transfer torque to a magnetic stir bar within the liquid sample, providing 100–1500 rpm adjustable stirring. Heating elements surrounding the borosilicate bath deliver uniform temperature distribution from room temperature up to 220 °C. The PT1000 external temperature sensor enables direct sample temperature measurement, improving control accuracy to ±1 °C with 0.1 °C resolution. Integrated timing, alarm, and protection functions maintain reliable and reproducible thermal processing.

💡 Key Advantages

• Uniform heating through high borosilicate glass bath geometry for stable thermal gradients
• Brushless DC motor ensures continuous, spark-free operation suitable for sensitive chemical reactions
• LCD dual-display interface provides simultaneous visualization of temperature, speed, and timer values
• Built-in overheating protection at 350 °C prevents damage to the bath and heating circuit
• Bidirectional stirring improves sample homogenization for viscous or multi-phase solutions
• Timer range up to 99h59min supports long-duration reaction steps and automated shutdown
• IP21 protection class enhances operational safety in laboratory environments

🔗 Connectivity & Integration

The LCD control panel integrates temperature, speed, and timer management with audible prompts. Although primarily a standalone instrument, the MS-H220 Series supports external PT1000 sensing for accurate closed-loop thermal regulation compatible with GLP-aligned workflows.

🧠 Model Insight

🧪 Testing Applications

The AELAB MS-H220-V3 / MS-H220-V5 is suitable for chemical reaction heating and stirring, sample digestion, oil bath experiments, pharmaceutical formulation, QC testing, and research workflows in analytical, industrial, and academic laboratories.

Compliance & Quality Assurance

The MS-H220 Series adheres to ISO, CE, and GLP-aligned quality standards, with calibrated temperature sensing, integrated safety functions, and precision manufacturing under AELAB’s laboratory equipment quality system.
