Model :AE-HM005~AE-HM105~AE-HM102~ AE-HM101
Need Help with This Product?

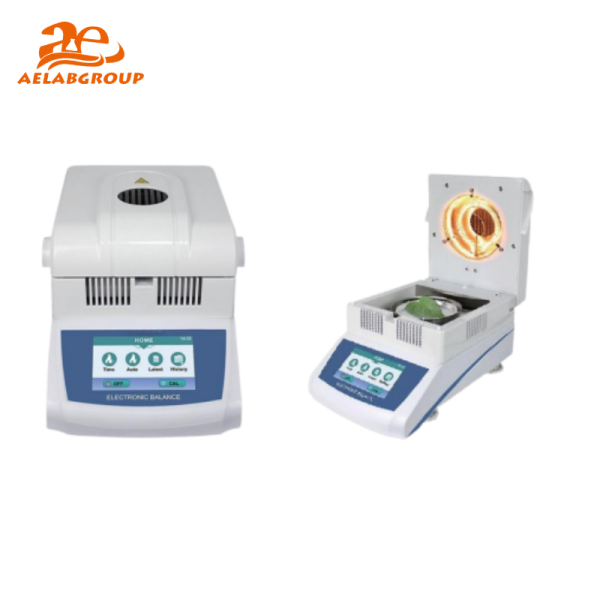

The AELAB HM005 Series is a four-model Halogen Moisture Analyzer family consisting of AE-HM005, AE-HM105, AE-HM102 and AE-HM101. All four models provide a moisture measurement range of 0~100% and use a high efficiency Halogen Lamp as the heating source.
The series features a 5.5″ LCD touch screen, aluminum alloy base and ABS shell, together with Timer dry / Auto dry functions. The specified temperature range is 60~160°C, and heating time can be set from 1~99 minutes with an interval of 1 second.
The four models mainly differ in weighing capacity, balance readability, moisture readability, repeatability and communication interface. AE-HM005 provides 50g capacity, while the other three models provide 100g capacity. AE-HM101 offers the finest listed balance readability at 0.001g.
The supplied catalog identifies these instruments as halogen moisture analyzers and provides moisture-measurement specifications, but it does not name particular industries, raw materials, finished products or specific sample categories. Therefore, the application scope below is intentionally limited to what the catalog directly supports.
| Model | Capacity | Readability | Moisture Readability | Repeatability | Interface |
|---|---|---|---|---|---|
| AE-HM005 | 50g | 0.005g | 0.02% | 0.2% | None |
| AE-HM105 | 100g | 0.005g | 0.02% | 0.2% | RS232 Interface |
| AE-HM102 | 100g | 0.002g | 0.01% | 0.1% | RS232 Interface |
| AE-HM101 | 100g | 0.001g | 0.01% | 0.0% | RS232 Interface |
Catalog note: The AE-HM101 repeatability value is printed as 0.0% in the supplied catalog. It is retained here without attempting to reinterpret or correct the source value.
The supplied catalog lists four models: AE-HM005, AE-HM105, AE-HM102 and AE-HM101.
All four models have a moisture range of 0~100%. The catalog specifies accuracy for moisture measure of ±0.5% when Sample≥5g.
AE-HM005 has a 50g capacity and 0.005g readability. AE-HM105 has 100g capacity and 0.005g readability, AE-HM102 has 100g capacity and 0.002g readability, and AE-HM101 has 100g capacity and 0.001g readability.
AE-HM005 and AE-HM105 have 0.02% moisture readability and 0.2% repeatability. AE-HM102 has 0.01% moisture readability and 0.1% repeatability. The catalog lists AE-HM101 at 0.01% moisture readability and 0.0% repeatability.
AE-HM105, AE-HM102 and AE-HM101 are specified with an RS232 Interface. The AE-HM005 specification lists Interface: None.
All four models use a high efficiency Halogen Lamp with a temperature range of 60~160°C. Heating time is 1~99 minutes with an interval of 1 second.
The catalog specifies Auto Stop / Timed Stop as the time-end control modes and a Sample Drying Record of 8 times for every model.
All four models have an external size of 205x325x170mm, shipping size of 325x460x295mm, net weight of 2.9kg and gross weight of 4.2kg.
| Model | AE-HM005 | AE-HM105 | AE-HM102 | AE-HM101 |
|---|---|---|---|---|
| Capacity | 50g | 100g | 100g | 100g |
| Readability | 0.005g | 0.005g | 0.002g | 0.001g |
| Moisture Range | 0~100% | 0~100% | 0~100% | 0~100% |
| Accuracy for Moisture measure | ±0.5% (Sample≥5g) | ±0.5% (Sample≥5g) | ±0.5% (Sample≥5g) | ±0.5% (Sample≥5g) |
| Moisture Readability | 0.02% | 0.02% | 0.01% | 0.01% |
| Repeatability | 0.2% | 0.2% | 0.1% | 0.0% |
| Interface | None | RS232 Interface | RS232 Interface | RS232 Interface |
| Scale Pan Size | Φ100mm | Φ100mm | Φ100mm | Φ100mm |
| Heating Way | High efficiency Halogen Lamp | High efficiency Halogen Lamp | High efficiency Halogen Lamp | High efficiency Halogen Lamp |
| Heating Time | 1~99 minutes interval of 1 second | 1~99 minutes interval of 1 second | 1~99 minutes interval of 1 second | 1~99 minutes interval of 1 second |
| Time End Control mode | Auto Stop / Timed Stop | Auto Stop / Timed Stop | Auto Stop / Timed Stop | Auto Stop / Timed Stop |
| Sample Drying Record | 8 times | 8 times | 8 times | 8 times |
| Temperature Range | 60~160°C | 60~160°C | 60~160°C | 60~160°C |
| Temp. Increase Step | ±1°C | ±1°C | ±1°C | ±1°C |
| External Size (WDH) | 205x325x170mm | 205x325x170mm | 205x325x170mm | 205x325x170mm |
| Shipping Size (WDH) | 325x460x295mm | 325x460x295mm | 325x460x295mm | 325x460x295mm |
| Net Weight | 2.9kg | 2.9kg | 2.9kg | 2.9kg |
| Gross Weight | 4.2kg | 4.2kg | 4.2kg | 4.2kg |
