Overview
Product Overview

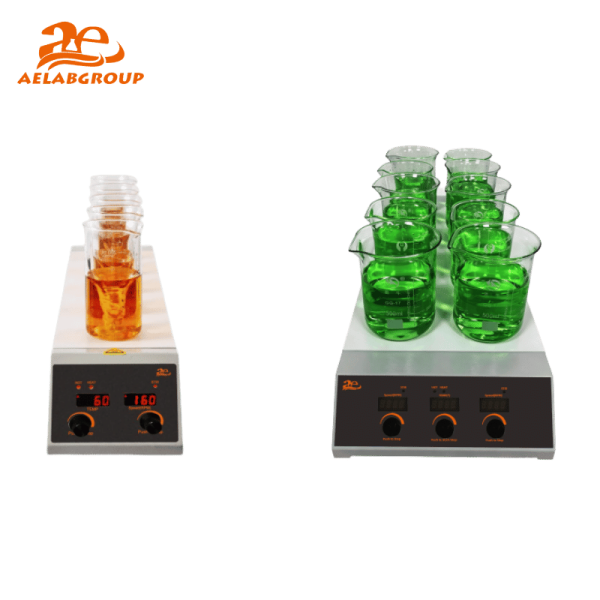

The HSHA & HSS Series Multi-Position Stirrer Hotplates provide multiple stirring positions for parallel laboratory mixing. The catalog includes HSHA-1D, HSHA-3D, HSHA-5D, HSHA-6D, HSHA-9D, HSHA-10D and HSHA-15D heating-and-stirring models, together with HSS-3D, HSS-5D, HSS-6D, HSS-9D and HSS-10D stirring-only models.
Depending on the model, the series provides 1, 3, 5, 6, 9, 10 or 15 stirring positions. Each position has a 100 mm stirring-position distance and is rated for a maximum stirring quantity of 1.0 L H2O. All listed models support 25–35 mm stirring bars and provide speed adjustment in 1 rpm steps.
All HSHA models operate from 150–1600 rpm and combine stirring with heating. Their ceramic-coated aluminum plates provide a heating temperature range from room temperature to 120°C, a heating-plate rate of 5°C/min and an LED hot warning. Heat output varies from 50 W to 750 W according to model.
The HSS models provide stirring without heating and use ceramic-coated stainless steel plates. HSS-3D, HSS-6D and HSS-9D operate from 150–1500 rpm, while HSS-5D and HSS-10D are specified at 150–2000 rpm.
All models are specified with chemical-resistant working plates, an operating temperature range of 5–40°C, operating relative humidity of 80%, and IP 42 protection according to DIN EN 60529.
Key Features
- Multiple Stirring Positions: Configurations are available with 1, 3, 5, 6, 9, 10 or 15 stirring positions depending on model.
- 1.0 L H2O per Position: Each stirring position is rated for a maximum stirring quantity of 1.0 L H2O.
- 100 mm Position Distance: All catalog-listed models specify a 100 mm stirring-position distance.
- 1 rpm/Step Speed Control: All models provide stirring-speed adjustment in 1 rpm increments.
- HSHA Speed Range: All HSHA models operate from 150–1600 rpm.
- HSS Speed Options: HSS-3D, HSS-6D and HSS-9D operate from 150–1500 rpm; HSS-5D and HSS-10D operate from 150–2000 rpm.
- HSHA Heating Function: HSHA models provide heating from room temperature to 120°C with a heating rate of 5°C/min.
- LED Hot Warning: Each HSHA model includes an LED hot warning.
- HSHA Heat Output: Available heat outputs range from 50 W to 750 W depending on model.
- Stirring Bar Range: All models support stirring bars from 25 to 35 mm in length.
- HSHA Plate Material: HSHA models use ceramic-coated aluminum plates.
- HSS Plate Material: HSS models use ceramic-coated stainless steel plates.
- Chemical-Resistant Plates: Every catalog-listed model is specified as chemical resistant.
- IP 42 Protection: All models are rated IP 42 according to DIN EN 60529.
Applications
- Parallel Sample Stirring: Multi-position configurations allow multiple vessels to be stirred in the same workflow.
- Heating and Stirring: HSHA models combine multi-position stirring with plate heating from room temperature to 120°C.
- Stirring-Only Workflows: HSS models provide multi-position stirring without heating.
- Multiple Small-Volume Samples: Each position is rated for a maximum stirring quantity of 1.0 L H2O and supports 25–35 mm stirring bars.
Available Models and Comparison
| Model |
Stirring Positions |
Speed Range |
Heat Output |
Heating Temperature Range |
Plate Material |
| HSHA-1D |
1 |
150–1600 rpm |
50 W |
Room temp. – 120°C |
Ceramic-coated aluminum |
| HSHA-3D |
3 |
150–1600 rpm |
150 W |
Room temp. – 120°C |
Ceramic-coated aluminum |
| HSHA-5D |
5 |
150–1600 rpm |
250 W |
Room temp. – 120°C |
Ceramic-coated aluminum |
| HSHA-6D |
6 |
150–1600 rpm |
300 W |
Room temp. – 120°C |
Ceramic-coated aluminum |
| HSHA-9D |
9 |
150–1600 rpm |
450 W |
Room temp. – 120°C |
Ceramic-coated aluminum |
| HSHA-10D |
10 |
150–1600 rpm |
500 W |
Room temp. – 120°C |
Ceramic-coated aluminum |
| HSHA-15D |
15 |
150–1600 rpm |
750 W |
Room temp. – 120°C |
Ceramic-coated aluminum |
| HSS-3D |
3 |
150–1500 rpm |
– |
– |
Ceramic-coated stainless steel |
| HSS-5D |
5 |
150–2000 rpm |
– |
– |
Ceramic-coated stainless steel |
| HSS-6D |
6 |
150–1500 rpm |
– |
– |
Ceramic-coated stainless steel |
| HSS-9D |
9 |
150–1500 rpm |
– |
– |
Ceramic-coated stainless steel |
| HSS-10D |
10 |
150–2000 rpm |
– |
– |
Ceramic-coated stainless steel |
Product Information
- Brand: AELAB
- Manufacturer: AELAB GUANGZHOU CO., LTD.
- Product Type: Multi-Position Stirrer Hotplates
- Series: HSHA & HSS Series
- HSHA Models: HSHA-1D, HSHA-3D, HSHA-5D, HSHA-6D, HSHA-9D, HSHA-10D, HSHA-15D
- HSS Models: HSS-3D, HSS-5D, HSS-6D, HSS-9D, HSS-10D
- Core Capability: Multi-position stirring; HSHA models additionally provide plate heating
FAQ
What is the difference between the HSHA and HSS Series?
HSHA models combine stirring and heating, while HSS models provide stirring without heating.
Which HSHA models are available?
The catalog lists HSHA-1D, HSHA-3D, HSHA-5D, HSHA-6D, HSHA-9D, HSHA-10D and HSHA-15D.
Which HSS models are available?
The catalog lists HSS-3D, HSS-5D, HSS-6D, HSS-9D and HSS-10D.
How many stirring positions are available?
Depending on the model, configurations are available with 1, 3, 5, 6, 9, 10 or 15 stirring positions.
What is the maximum stirring quantity per position?
Each stirring position is rated for a maximum of 1.0 L H2O.
What is the stirring-position distance?
All listed models specify a stirring-position distance of 100 mm.
What is the speed range of the HSHA models?
All HSHA models have a speed range of 150–1600 rpm with 1 rpm/step speed control.
What is the speed range of the HSS models?
HSS-3D, HSS-6D and HSS-9D operate from 150–1500 rpm. HSS-5D and HSS-10D operate from 150–2000 rpm.
What is the heating range of the HSHA models?
HSHA models provide a heating temperature range from room temperature to 120°C and a heating-plate rate of 5°C/min.
What plate materials are used?
HSHA models use ceramic-coated aluminum plates. HSS models use ceramic-coated stainless steel plates.
What stirring bar length is specified?
All listed models specify a stirring bar length of 25–35 mm.
What is the protection class?
All catalog-listed HSHA and HSS models are rated IP 42 according to DIN EN 60529.
Who manufactures the HSHA & HSS Series?
The HSHA & HSS Series is supplied under the AELAB brand by AELAB GUANGZHOU CO., LTD.
