Laboratory Polarizing Microscope

Introduction

A laboratory polarizing microscope is a specialized optical instrument designed to analyze birefringent materials such as minerals, polymers, crystals, and biological tissues. By utilizing polarized light, it enhances contrast and reveals structural details invisible under normal light conditions. This microscope is widely used in geology, materials science, chemistry, forensics, and biomedical research for detailed optical analysis of anisotropic substances.

What Is a Laboratory Polarizing Microscope?

A polarizing microscope employs polarized light filters and optical components to study materials that exhibit birefringence — the property of splitting light into two rays. It consists of a polarizer below the specimen and an analyzer above it, which work together to detect variations in light transmission caused by anisotropic structures. The resulting interference colors and contrast patterns reveal information about composition, texture, and orientation of the sample.

Devices in This Category

Petrographic Polarizing Microscope
Digital Polarizing Microscope

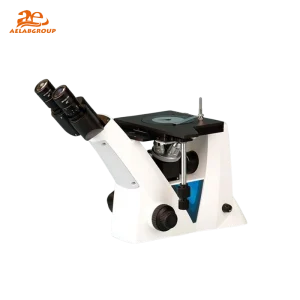

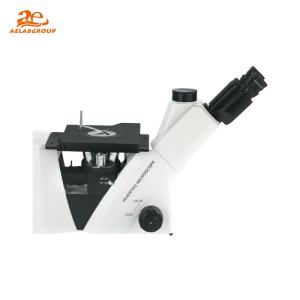

Inverted Polarizing Microscope

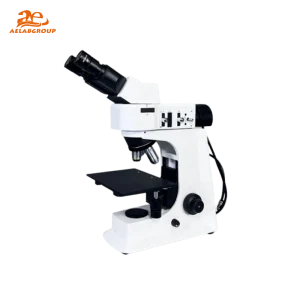

Reflected Light Polarizing Microscope
Transmission Polarizing Microscope

Technical Features and Specifications

Feature
Details

Polarizers
Crossed polarizer and analyzer for controlling light polarization

Stage
Rotating mechanical stage with degree markings for angular analysis

Compensators
Retardation and wave plates to enhance interference colors

Objectives
High-magnification lenses optimized for polarized light imaging

Light Source
LED or halogen illumination with adjustable intensity

Analyzer Type
Fixed or rotatable analyzer for fine-tuning optical contrast

Imaging Integration
Digital camera and software for image capture and measurement

Magnification Range
Typically 40× to 1000×, depending on objectives

Benefits

Reveals structural and compositional details of birefringent materials.
Provides interference color imaging for qualitative and quantitative analysis.
Enables multi-angle observation with rotating stage functionality.
Integrates digital imaging for precise measurement and documentation.
Supports applications across geology, materials testing, and research.

Applications and Tests

🔬 Molecular Biology

Studying crystalline protein structures
Observation of birefringent biological tissues
Analysis of microtubule organization in cells

🧪 Clinical Diagnostics

Identifying crystals in biological fluids (e.g., uric acid, oxalate)
Examining pathological tissue birefringence in histological samples
Verifying crystalline drug formulations in pharmaceuticals

🏭 Industrial & Food Testing

Assessing polymer orientation and fiber structures
Analyzing composite and ceramic materials
Quality control of crystalline substances and coatings

🌱 Environmental & Agricultural Labs

Studying soil mineral compositions
Analyzing plant fiber birefringence
Characterizing particulate matter in environmental samples

Polarizing Microscope vs. Brightfield Microscope

Aspect
Polarizing Microscope
Brightfield Microscope

Light Source
Uses polarized light with polarizer and analyzer filters
Uses unpolarized white light

Primary Use
Analyzing birefringent materials
General observation of stained or transparent specimens

Image Contrast
Enhanced by interference colors and optical effects
Contrast depends on staining or light adjustment

Stage Function
Rotating stage for angular measurements
Fixed or simple mechanical stage

Applications
Geology, materials science, forensics
Education, histology, microbiology

Expert Tips for Choosing the Right Polarizing Microscope

Select models with precise rotating stages for accurate angular analysis.
Ensure the system includes compensators for advanced optical studies.
Opt for LED illumination for stable, long-lasting performance.
Consider digital integration for imaging and quantitative documentation.
Choose objectives designed specifically for polarized light microscopy.

Maintenance Best Practices

Clean polarizing filters and lenses regularly with lens-safe materials.
Keep the rotating stage free of dust and debris for smooth motion.
Store compensators and retardation plates in protective cases.
Check alignment of polarizer and analyzer before each use.
Schedule periodic calibration to maintain optical precision.

FAQ

Q: What is the main purpose of a polarizing microscope?
A: It is used to examine birefringent materials and determine their optical and structural properties using polarized light.
Q: What materials are best analyzed with polarizing microscopy?
A: Minerals, crystals, polymers, and biological tissues that alter light polarization are ideal for analysis.
Q: How does a polarizer differ from an analyzer?
A: The polarizer filters light into a single plane, while the analyzer detects light emerging from the specimen, revealing birefringent effects.
Q: Can a polarizing microscope be used for routine biological samples?
A: While possible, it is best suited for birefringent specimens; standard biological samples are typically analyzed using brightfield or phase-contrast microscopes.
